Charge Air Bypass Valve Tube Replacement (LF3)

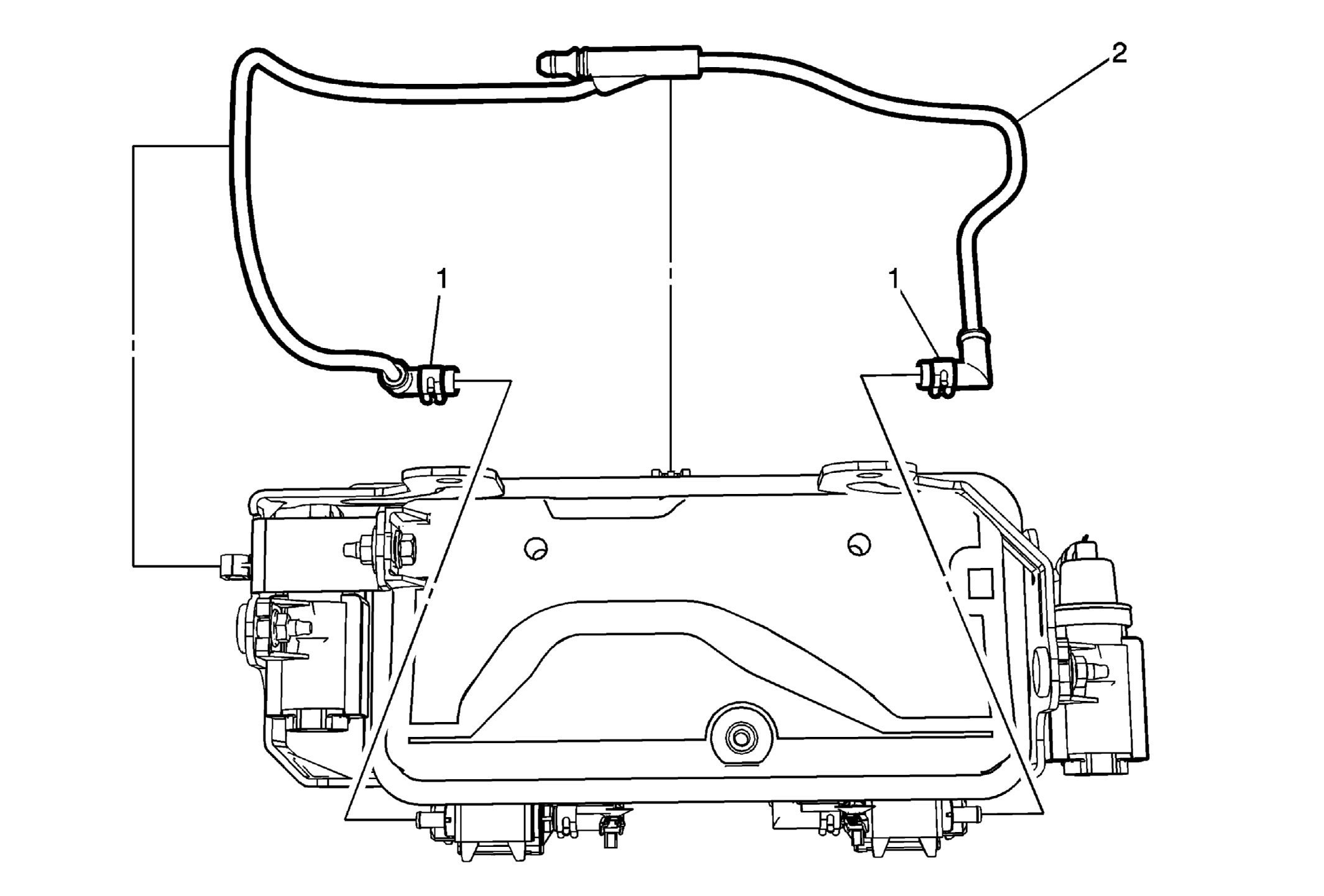

Fig 1: Charge Air Bypass Valve Tube (LF3)

GM3290769

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

CAUTION:

Refer to Solenoid Valve Caution .

Preliminary Procedures

Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement .
Remove charge air bypass valve vacuum tank tube. Refer to Charge Air Bypass Valve Vacuum Tank Tube Replacement (Bundle Rear Section LF3) Charge Air Bypass Valve Vacuum Tank Tube Replacement (Bundle Front Section LF3) Charge Air Bypass Valve Vacuum Tank Tube Replacement (Left Cylinder Bank LF3) .
Disconnect the electrical connectors and tie straps.

1

Charge Air Bypass Valve Tube Clamps (Qty: 2)

2

Charge Air Bypass Valve Tube
