Rear Wheelhouse Liner Replacement

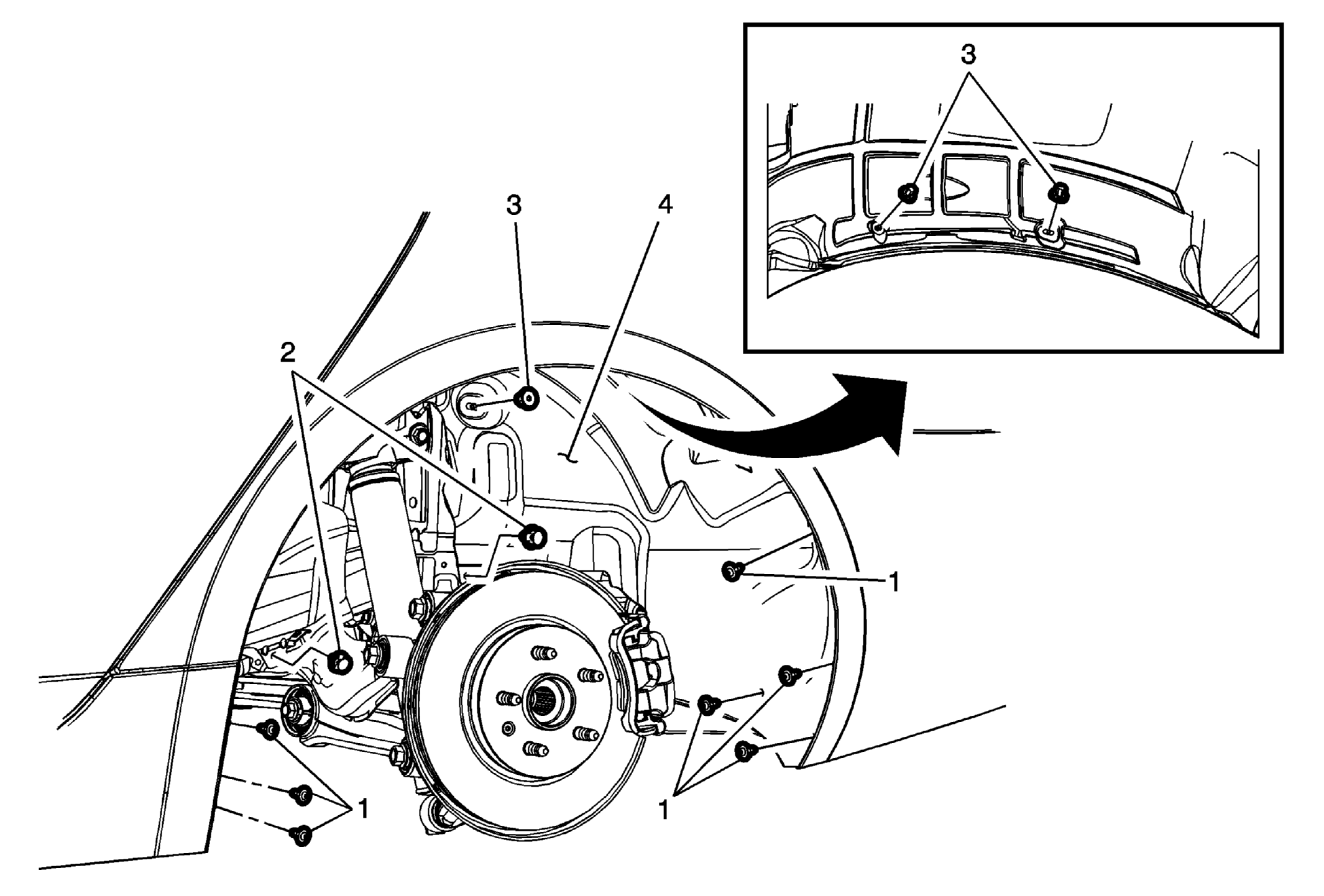

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (With J64)Tire and Wheel Removal and Installation (With J55) . |
|
| 1 | Rear Wheelhouse Panel Liner Retainer Screw (Qty: 8)
CAUTION:
Refer to Fastener Caution . |
| 2 | Rear Wheelhouse Panel Liner Push-In Retainer (Qty: 2) |
| 3 | Rear Wheelhouse Panel Liner Screw Nuts Retainer (Qty: 3) |
| 4 | Rear Wheelhouse Panel Liner |
