Drivetrain and Front Suspension Frame Transmission Protector Replacement

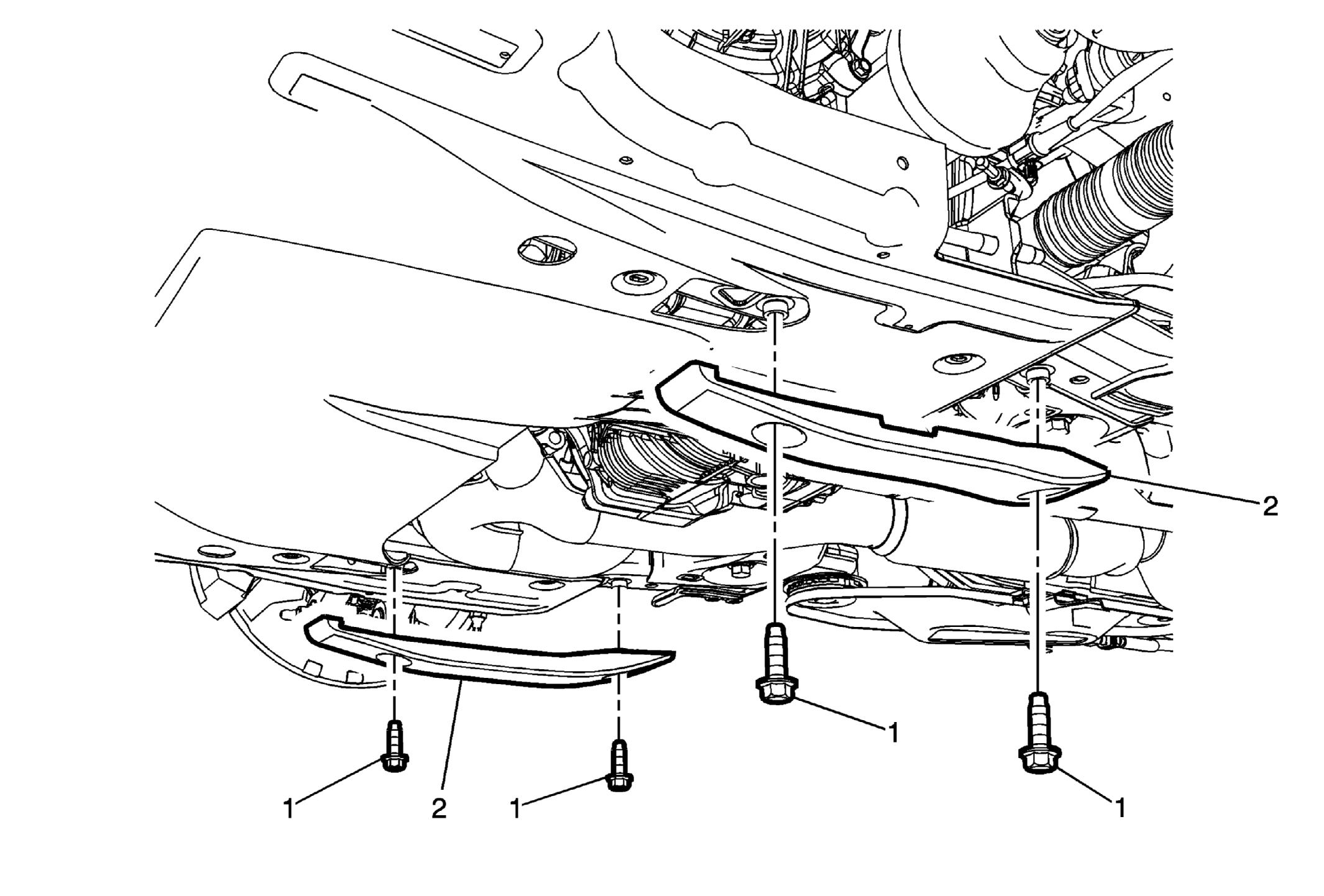

Fig 1: Drivetrain & Front Suspension Frame Transmission Protector With Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten  35 N.m (26 lb ft)
2	Drivetrain and Front Suspension Frame Transmission Protector
