Center Pillar Lower Trim Panel Replacement

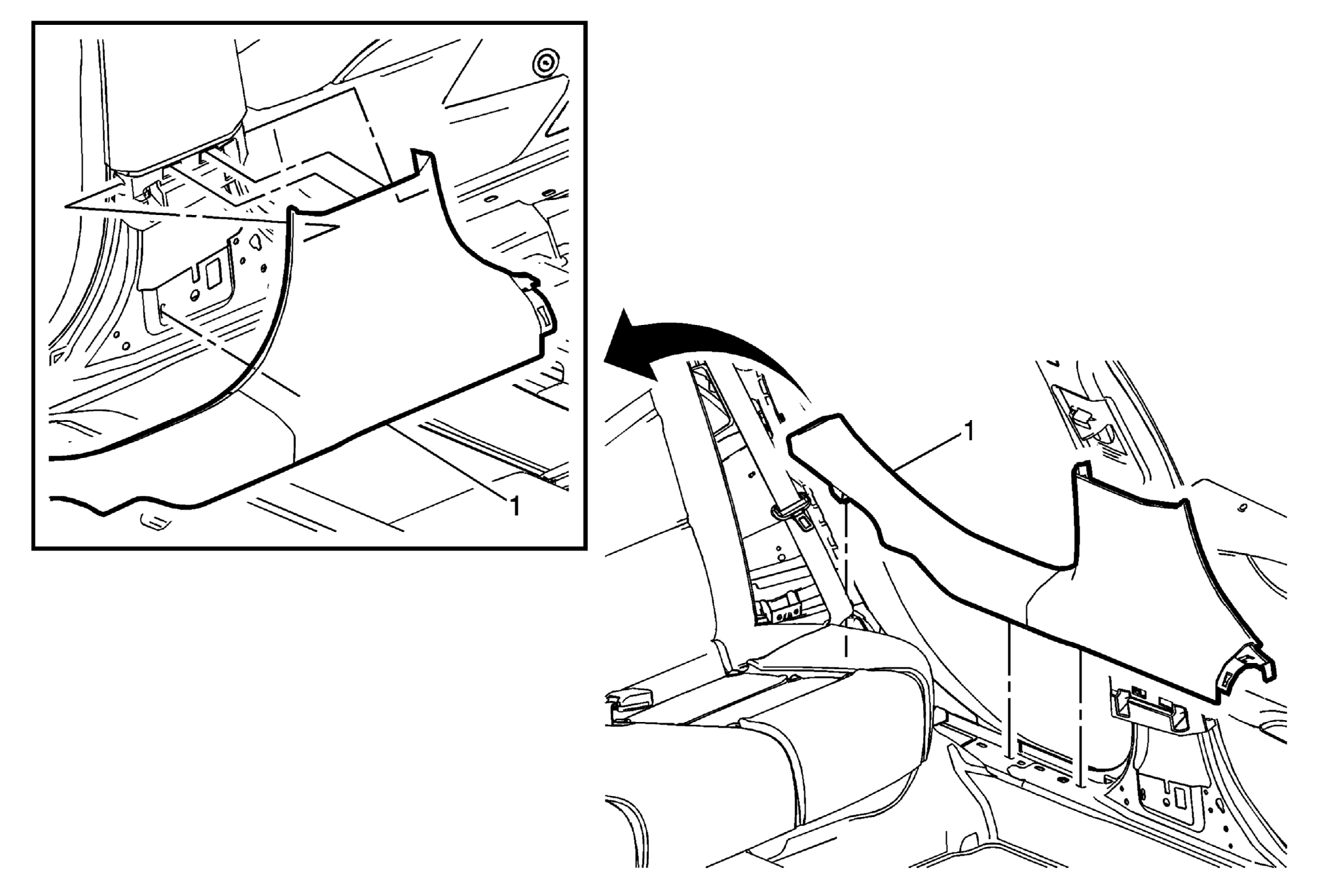

Fig 1: Center Pillar Lower Trim Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front side door sill garnish molding. Refer to Front Side Door Sill Garnish Molding Replacement . Move the driver or passenger seat to the full forward position.
1	Center Pillar Lower Trim Panel Assembly Procedure Ensure the seat belt webbing does not become trapped during installation.

Callout

Component Name

Preliminary Procedures

Remove the front side door sill garnish molding. Refer to Front Side Door Sill Garnish Molding Replacement .
Move the driver or passenger seat to the full forward position.

Center Pillar Lower Trim Panel Assembly
Procedure
Ensure the seat belt webbing does not become trapped during installation.
