Module Power, Ground, Data Communication and DIC

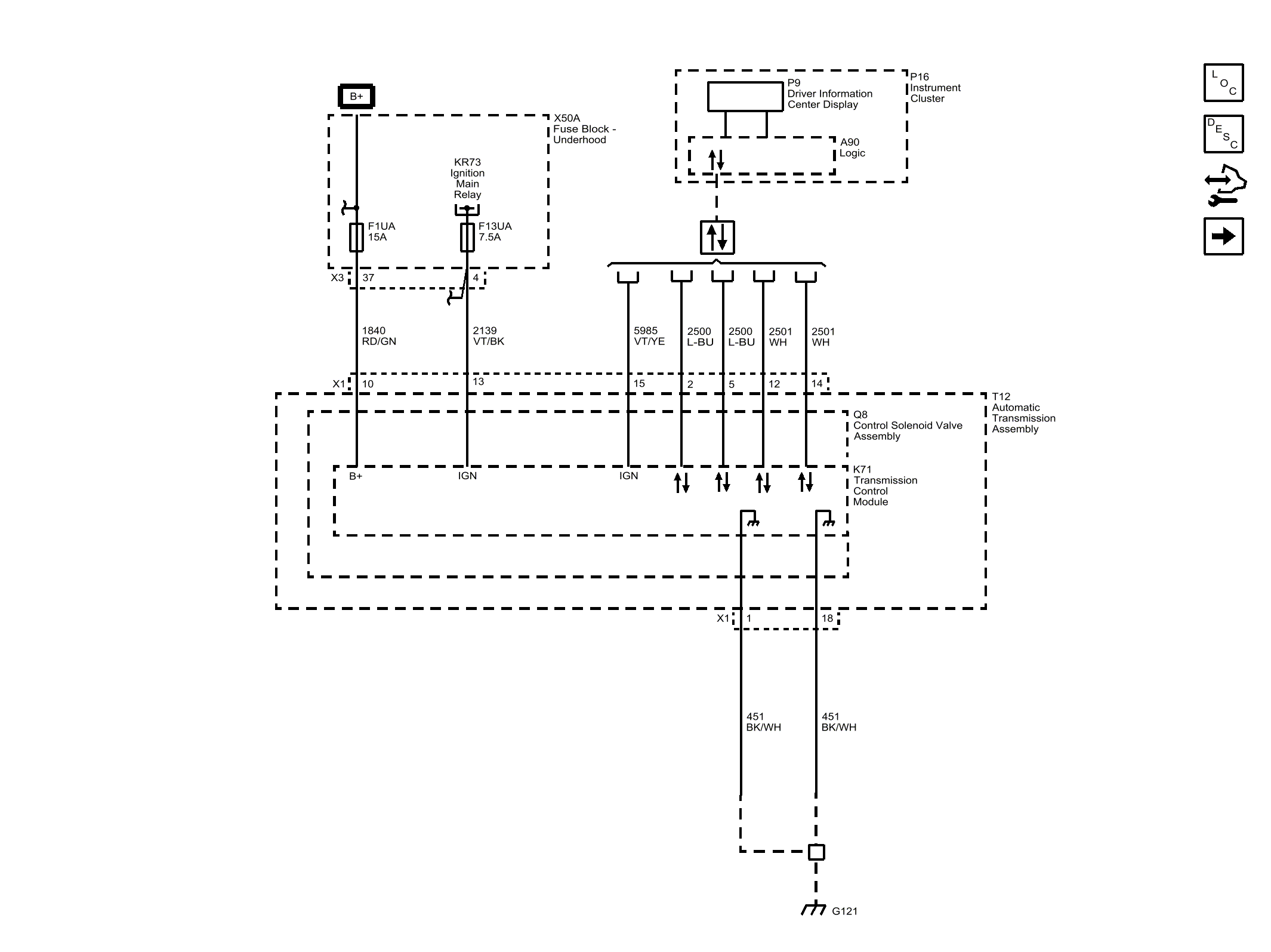

Fig 1: Module Power, Ground, Data Communication and DIC

GM4143465

Courtesy of GENERAL MOTORS COMPANY
