Internal Mode Switch and Tap Up/Tap Down Switch

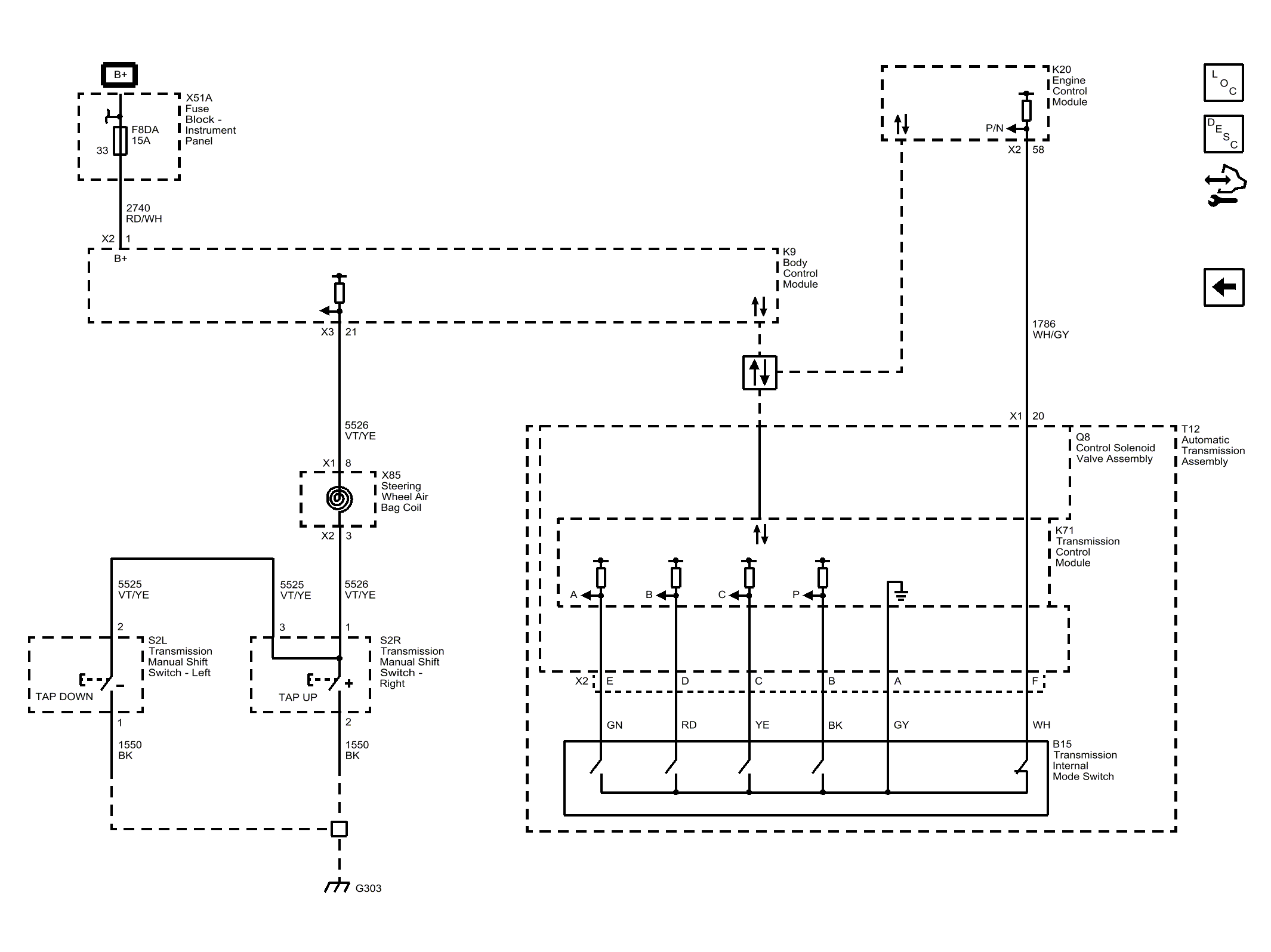

Fig 1: Internal Mode Switch and Tap Up/Tap Down Switch

GM4143467

Courtesy of GENERAL MOTORS COMPANY
