Fluid Temperature and Speed Sensors, Valve Position, Pressure and Shift Controls

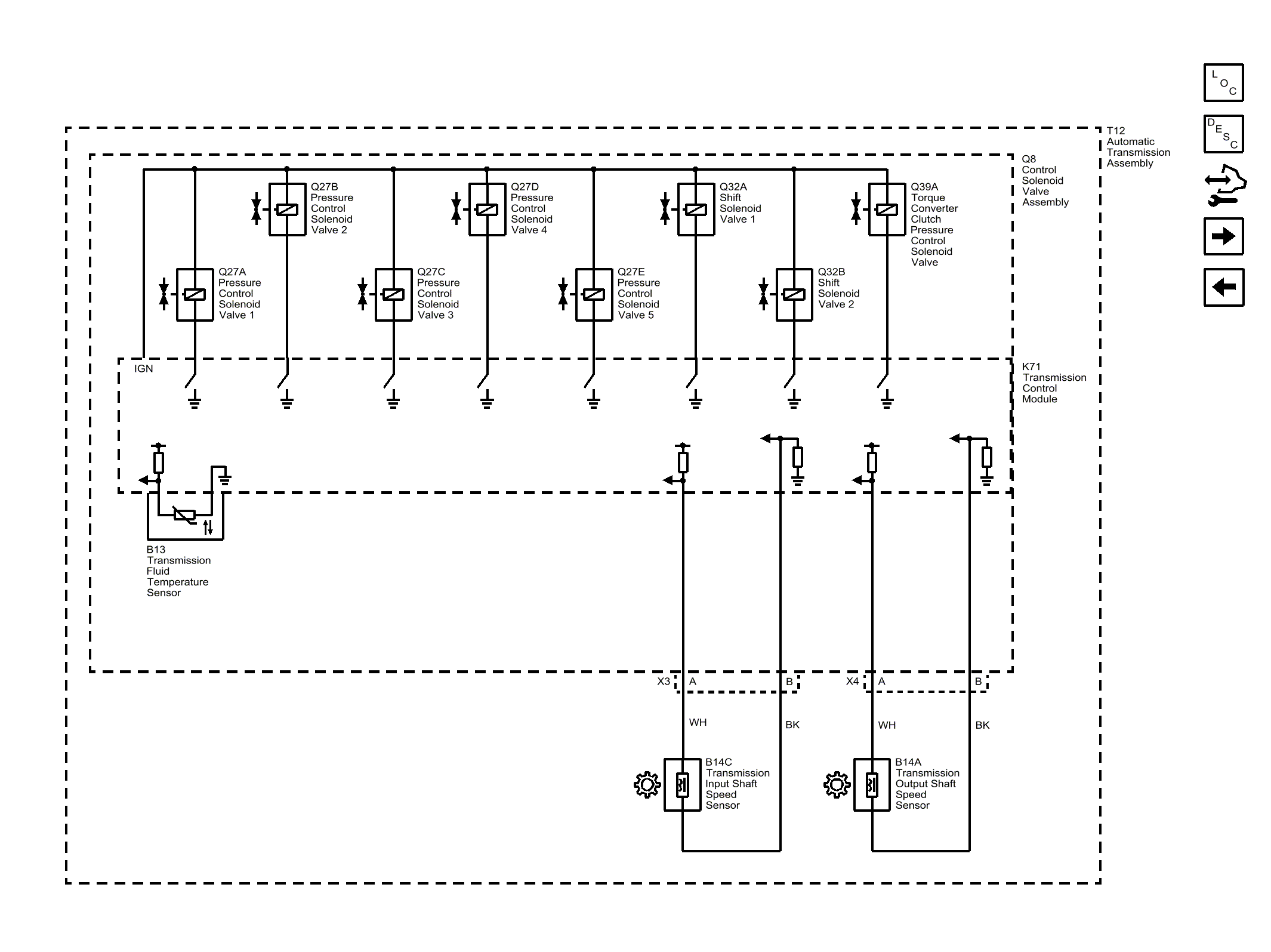

Fig 1: Fluid Temperature and Speed Sensors, Valve Position, Pressure and Shift Controls
GM4143466Courtesy of GENERAL MOTORS COMPANY
