Range Selector Lever Cable Bracket Replacement

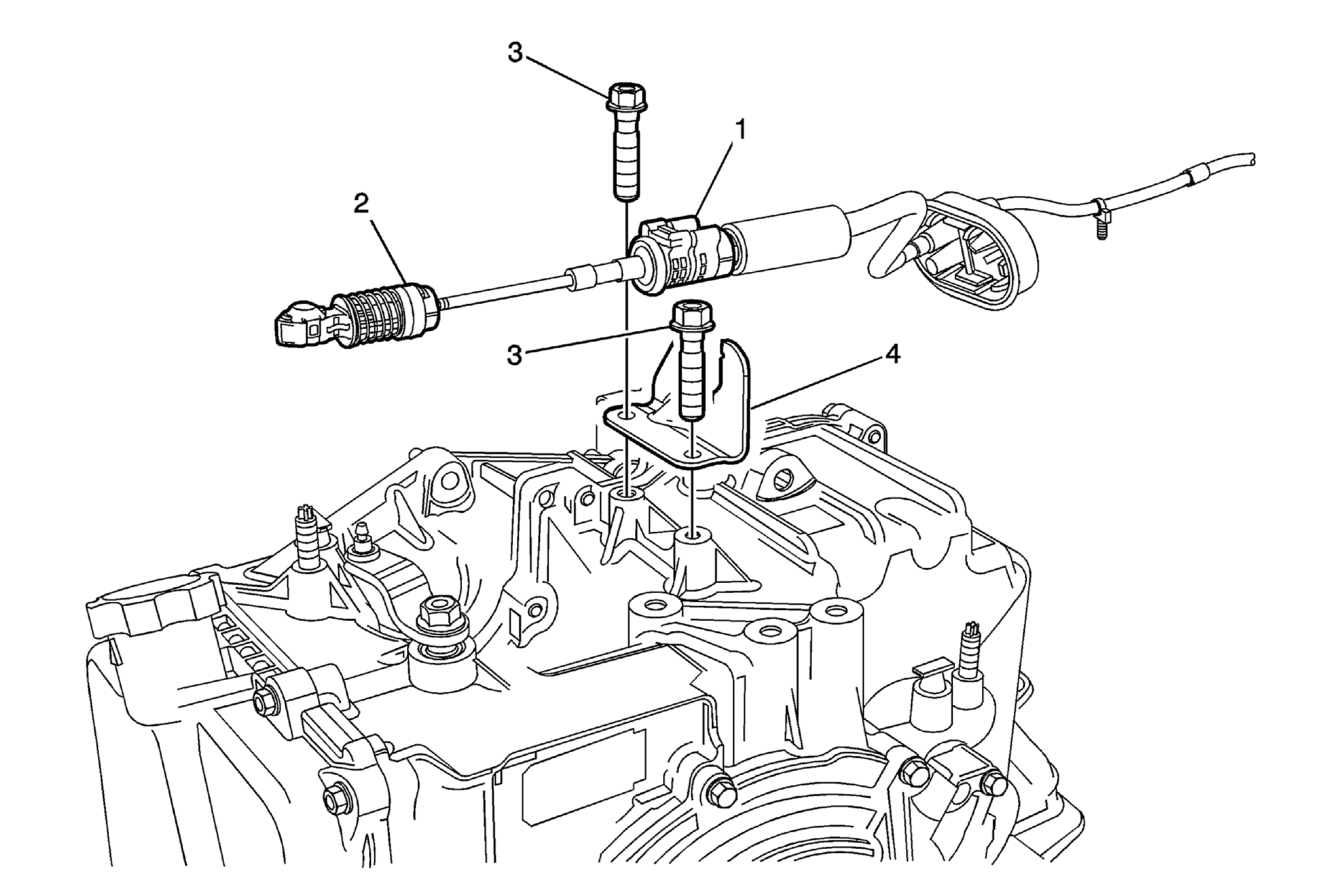

Fig 1: Range Selector Lever Cable Bracket
GM2231306Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Set the park brake and chock the wheels.
  2. Remove the battery tray. Refer to Battery Tray Replacement .
1 Transmission Range Selector Lever Cable Retaining Lock
2 Transmission Range Selector Lever Cable
3 Transmission Range Selector Lever Cable Bracket Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
25 N.m (18 lb ft)
4 Transmission Range Selector Lever Cable Bracket
Procedure
Adjust the cable. Refer to Range Selector Lever Cable Adjustment .
