Camshaft Position Sensor Replacement - Bank 1 (Right Side) Intake

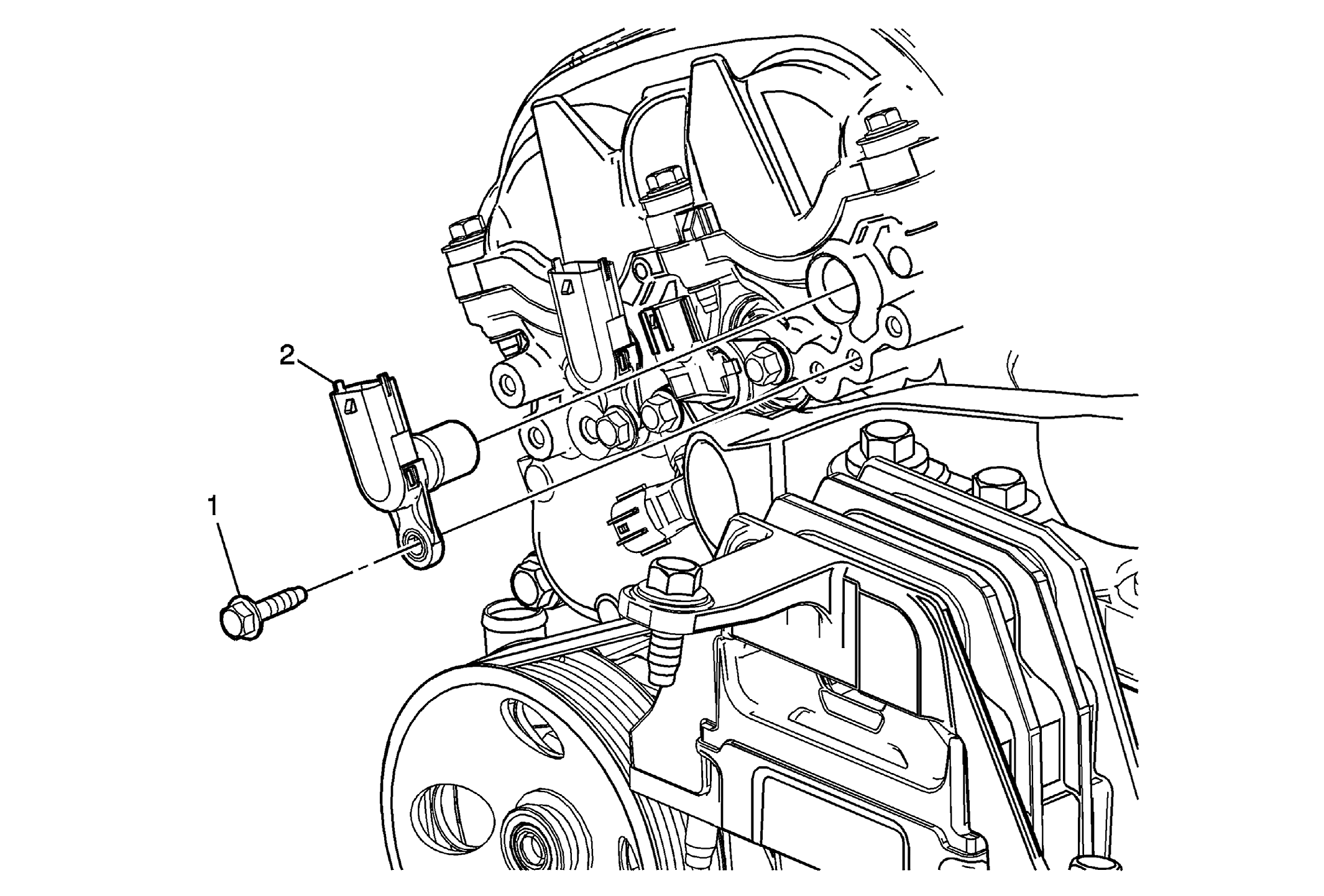

Fig 1: Camshaft Position Sensor - Bank 1 (Right Side) Intake

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
1	Camshaft Position Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten  10 N.m (89 lb in)
2	Camshaft Position Sensor Procedure  Disconnect the electrical connector.
