Positive Crankcase Ventilation Tube Replacement - Front

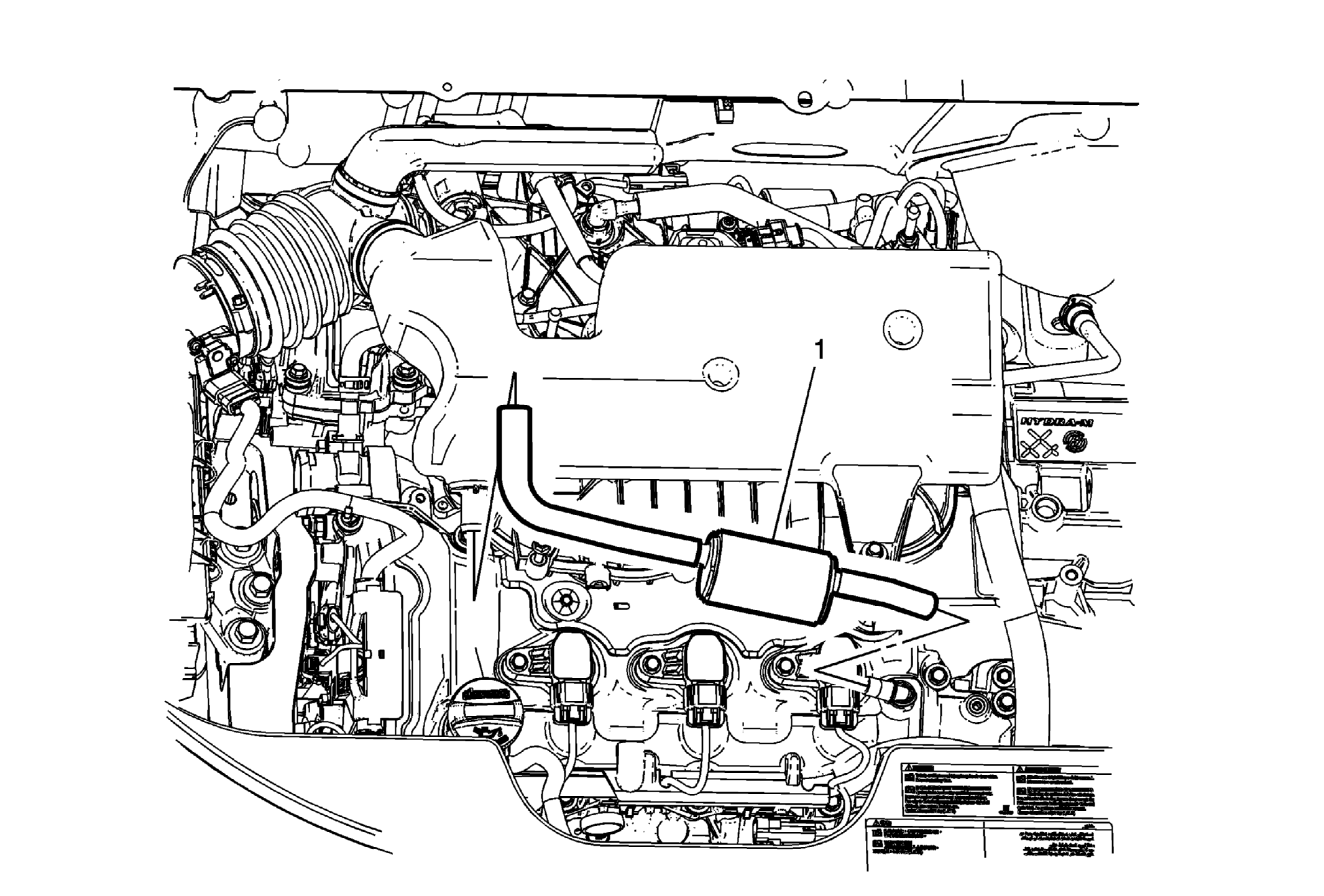

Fig 1: Positive Crankcase Ventilation Tube - Front
GM2663177Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
1 Positive Crankcase Ventilation Tube
Procedure
Disconnect each end of the PCV tube. Refer to Plastic Collar Quick Connect Fitting Service .
