Automatic Transmission Flex Plate Replacement

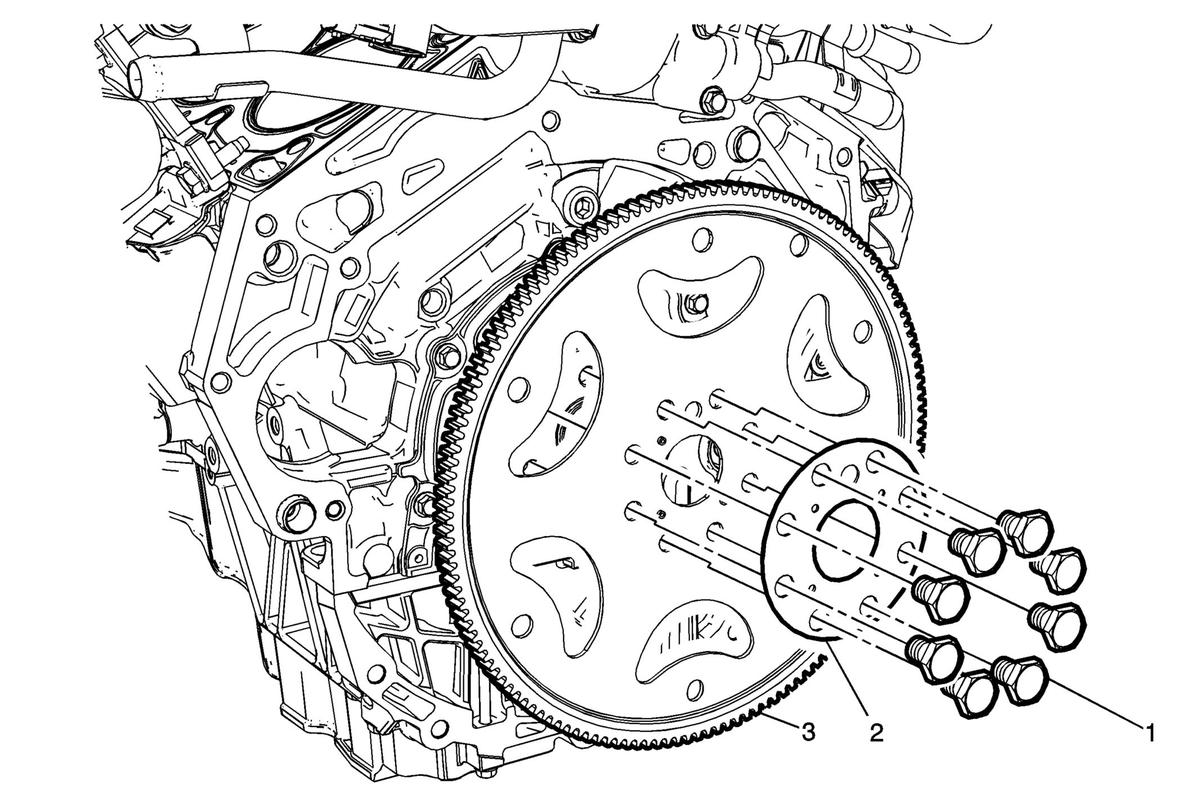

Fig 1: Automatic Transmission Flex Plate & Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the transmission. Refer to Transmission Replacement (FWD)Transmission Replacement (AWD) . Special Tools EN 45059 Angle Meter EN 46106 Flywheel Holding Tool For equivalent regional tools. Refer to Special Tools .
1	Automatic Transmission Flex Plate Fastener (Qty: 8) CAUTION: Refer to Fastener Caution . Procedure New bolts must be used whenever removing the automatic transmission flex plate. Tighten 30 N.m (22 lb ft) plus 45 degrees
2	Automatic Transmission Flex Spacer Plate
3	Automatic Transmission Flex Plate Procedure For cleaning and inspection. Refer to Engine Flywheel Cleaning and Inspection . Transfer parts as necessary.
