Valve Rocker Arm Removal - Left Side

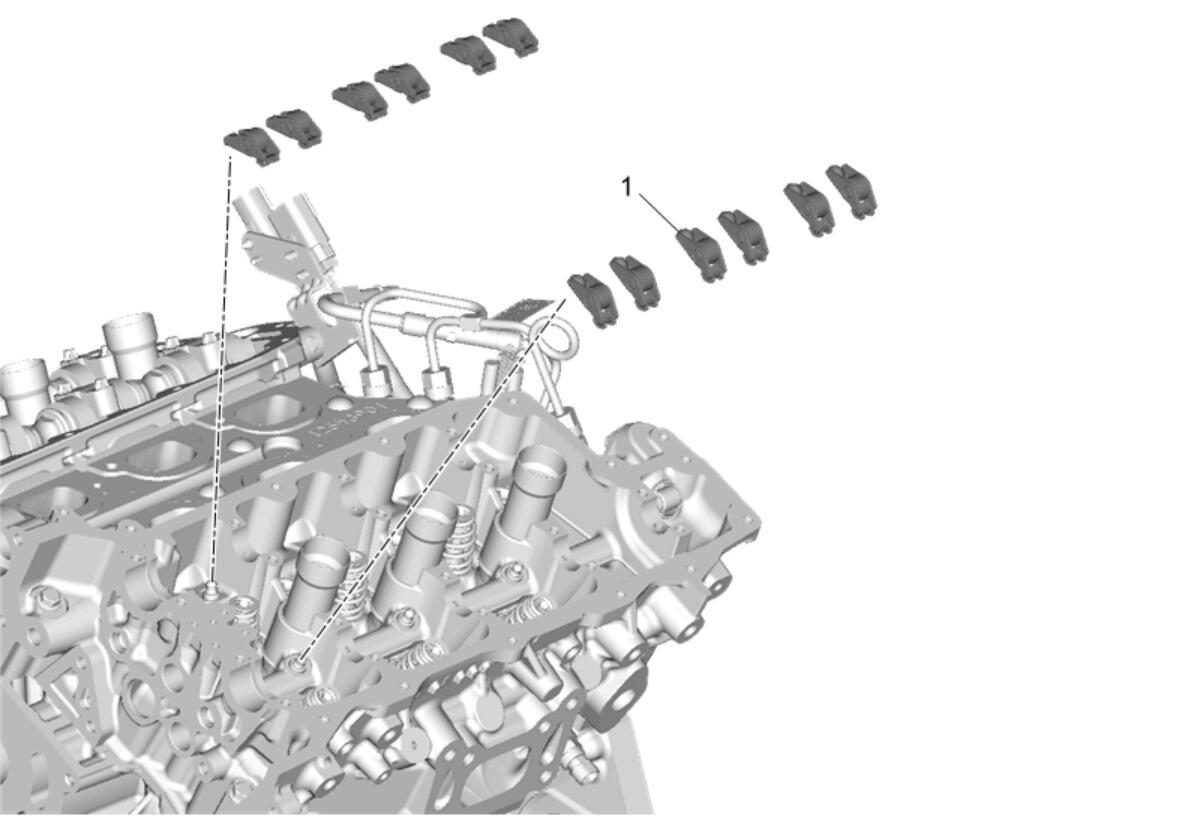

Fig 1: Valve Rocker Arm - Left Side
GM4597199Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Valve Rocker Arm
NOTE:

If the rocker arms are to be reused, keep in order so they can be reinstalled in the same position.
