| 1 |

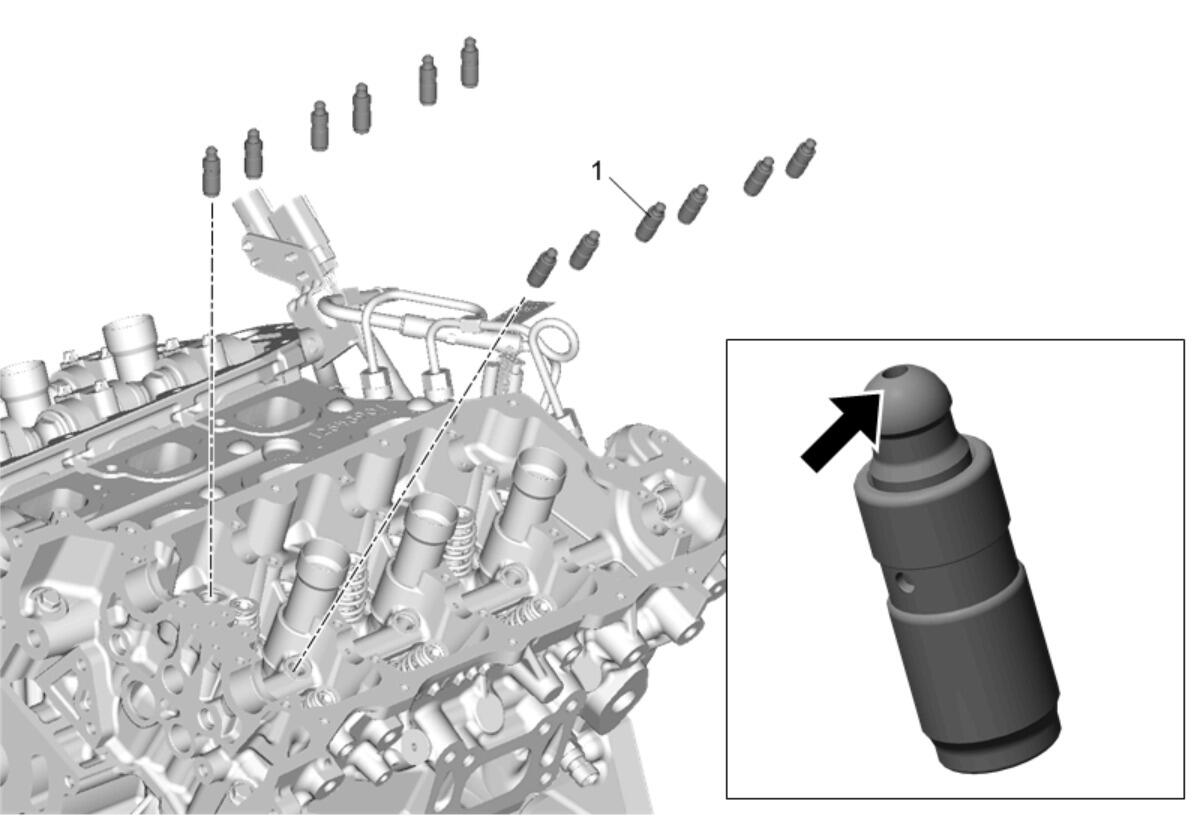

Hydraulic Valve Lash Adjuster
NOTE:
- Do not stroke/cycle the stationary hydraulic lash adjuster plunger without oil in the lower pressure chamber.
- Do not allow the stationary hydraulic lash adjuster to tip over, plunger down, after the oil fill.
Procedure
- Fill the stationary hydraulic lash adjuster (SHLA) with clean engine oil. Adhesives, Fluids, Lubricants, and Sealers
Take precautions to prevent scratching the pivot sphere area of the SHLA.
- Lubricate the SHLA bores in the cylinder head with clean engine oil.
- Install the SHLAs in the cylinder head.
- Apply a liberal amount of lubricant to the SHLA pivot spheres.
|
