Oil Pump Installation

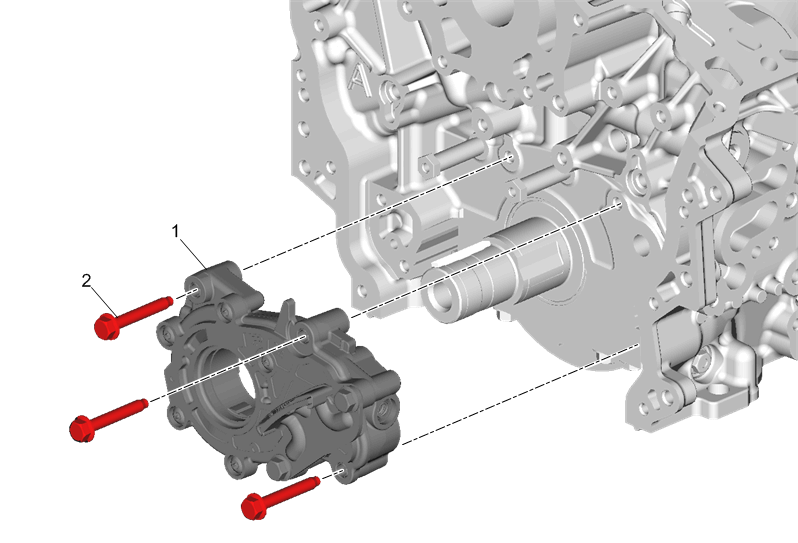

Fig 1: Oil Pump

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Oil Pump Procedure Align the oil pump drive gear with the crankshaft flats and install the oil pump to the engine block. Align the pump body with the mounting holes in the cylinder block.
2	Oil Pump Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 15 N.m (11 lb ft)

Callout

Component Name

Oil Pump

Procedure

Align the oil pump drive gear with the crankshaft flats and install the oil pump to the engine block.
Align the pump body with the mounting holes in the cylinder block.

Oil Pump Bolt (Qty: 3)

CAUTION:

Tighten
15 N.m (11 lb ft)
