Engine Front Cover Disassemble

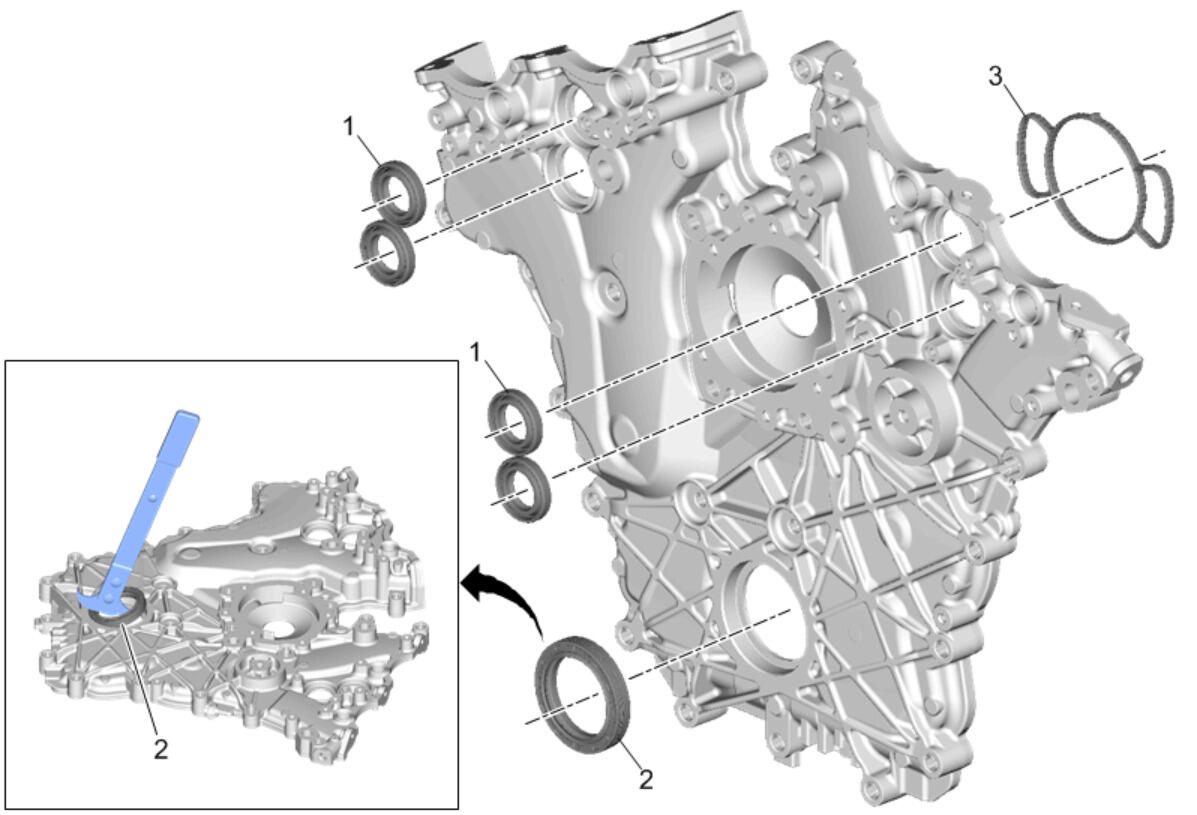

Fig 1: Engine Front Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Camshaft Position Actuator Solenoid Valve Seal (Qty: 4) NOTE: Remove and DISCARD the seal.
2	Crankshaft Front Oil Seal Procedure Remove Crankshaft Front Oil Seal EN-45000 Remover Special Tools EN-45000 Seal Remover Equivalent regional tools: Special Tools
3	Engine Front Cover Gasket NOTE: Remove and DISCARD the gasket.

Callout

Component Name

Camshaft Position Actuator Solenoid Valve Seal (Qty: 4)

NOTE:

Remove and DISCARD the seal.

Crankshaft Front Oil Seal

Procedure

Special Tools
EN-45000 Seal Remover
Equivalent regional tools: Special Tools

Engine Front Cover Gasket

NOTE:

Remove and DISCARD the gasket.
