Engine Front Cover Assemble

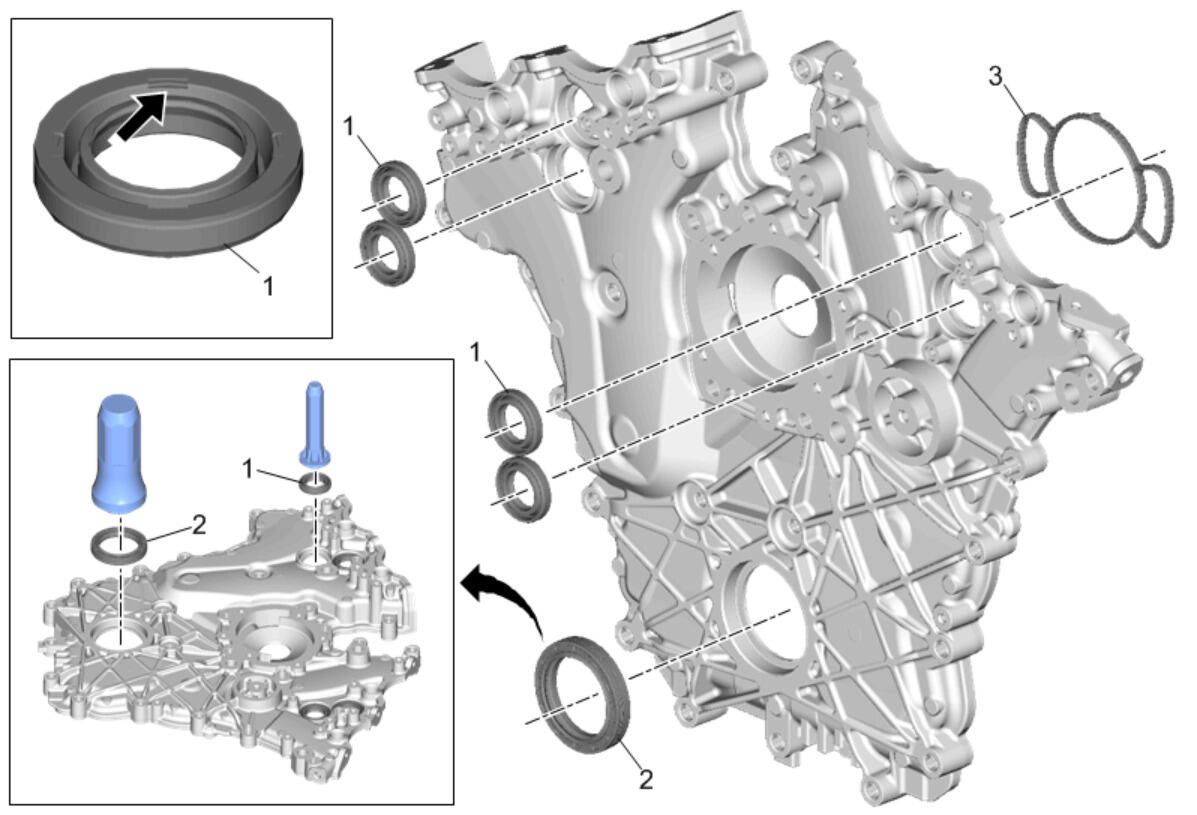

Fig 1: Engine Front Cover
GM4601578Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Camshaft Position Actuator Solenoid Valve Seal (Qty: 4)

Procedure

  1. Install Camshaft Position Actuator Solenoid Valve Seal EN-46103  Camshaft Actuator Valve Seal Installer
NOTE:

Install a NEW seal. Do NOT reuse the old seal.


Special Tools
EN-46103  Camshaft Actuator Valve Seal Installer
Equivalent regional tools: Special Tools
2 Crankshaft Front Oil Seal

Procedure

  1. Place the seal into position with the notches in the seal down. The notches will face inboard when properly installed.
  2. Install Crankshaft Front Oil Seal EN-29184  Oil Seal Installer
NOTE:

Do not lubricate the crankshaft front oil seal or crankshaft balancer sealing surfaces. The crankshaft balancer is installed into a dry seal.


Special Tools
EN-29184  Oil Seal Installer
Equivalent regional tools: Special Tools
3 Engine Front Cover Gasket
NOTE:

Install a NEW gasket. Do NOT reuse the old gasket.
