Crankshaft Balancer Removal

Special Tools

• EN 46106  Flywheel Holding Tool
• J 38416-B  Harmonic Balancer Remover
• J 38416-2  Crankshaft Button

For equivalent regional tools, refer to Special Tools .

Fig 1: Flywheel Holding Fixture
Courtesy of GENERAL MOTORS COMPANY
1. Install the EN 46106  tool through the starter mounting hole.

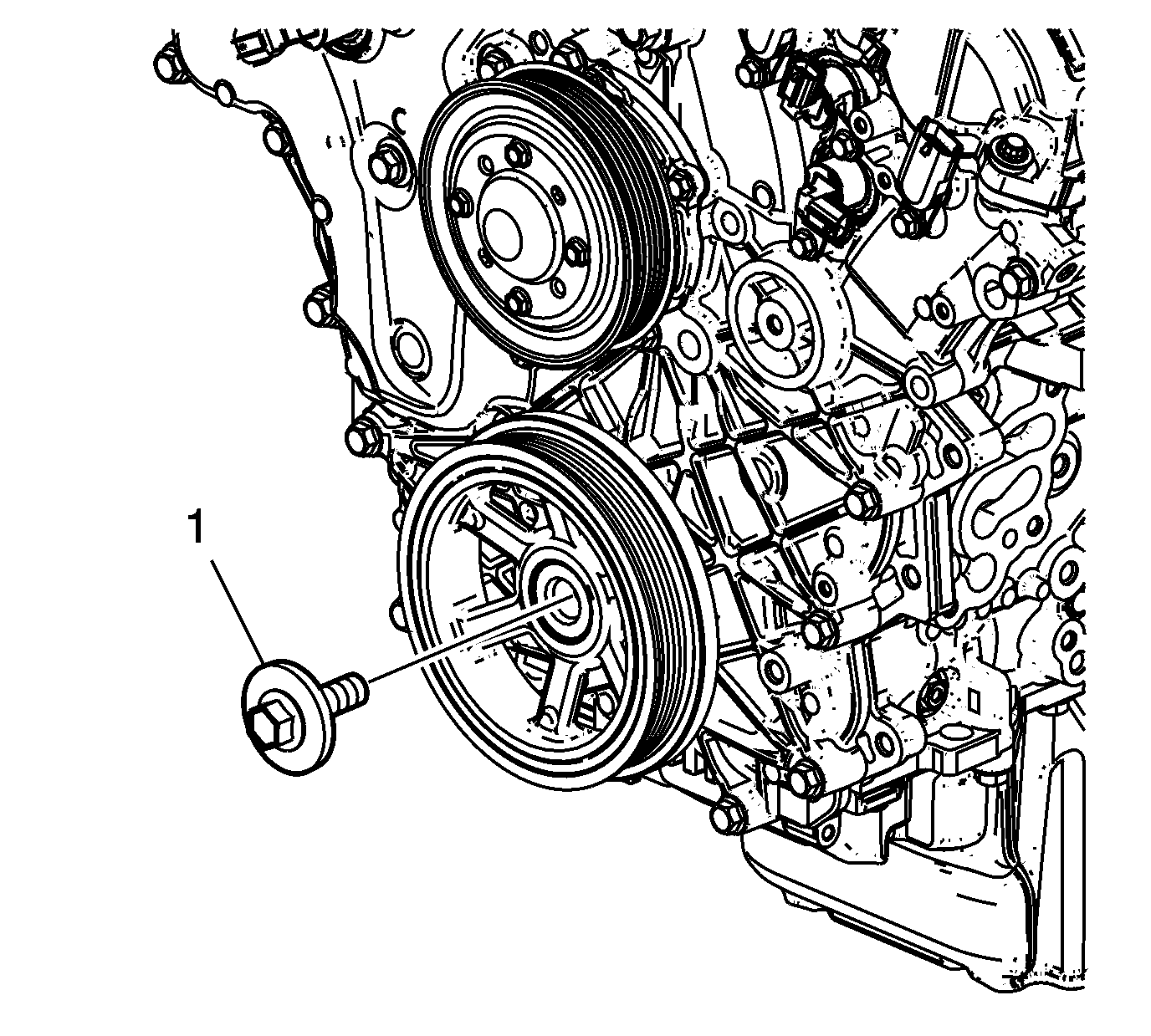

Fig 2: Crankshaft Balancer Bolt
Courtesy of GENERAL MOTORS COMPANY
2. Remove and discard the crankshaft balancer bolt (1).

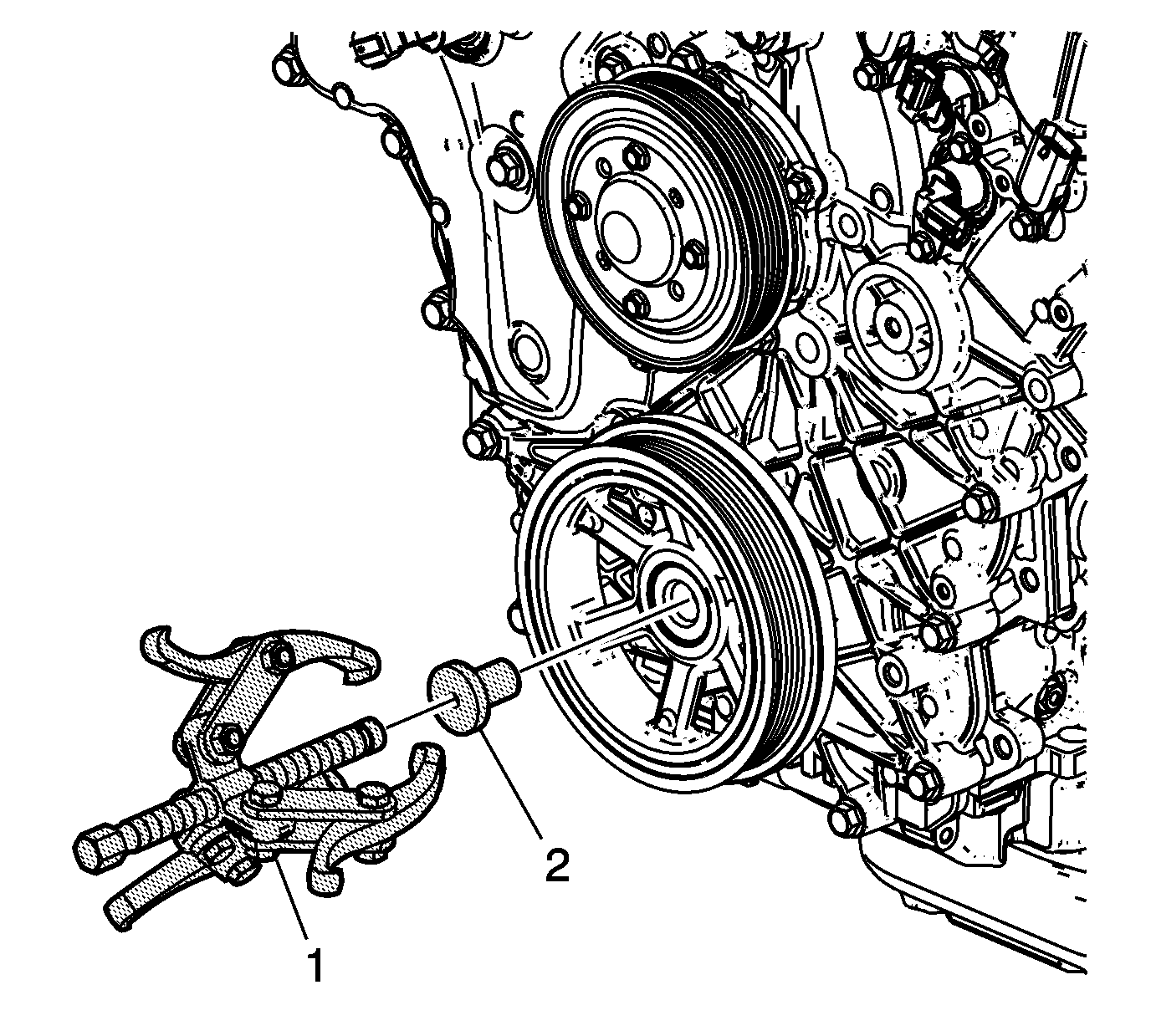

Fig 3: Installing Crankshaft Balancer Remover
Courtesy of GENERAL MOTORS COMPANY
3. Install the J 38416-2  button (2) in the nose of the crankshaft.
4. Install the J 38416-B  remover (1) in order to remove the crankshaft balancer.

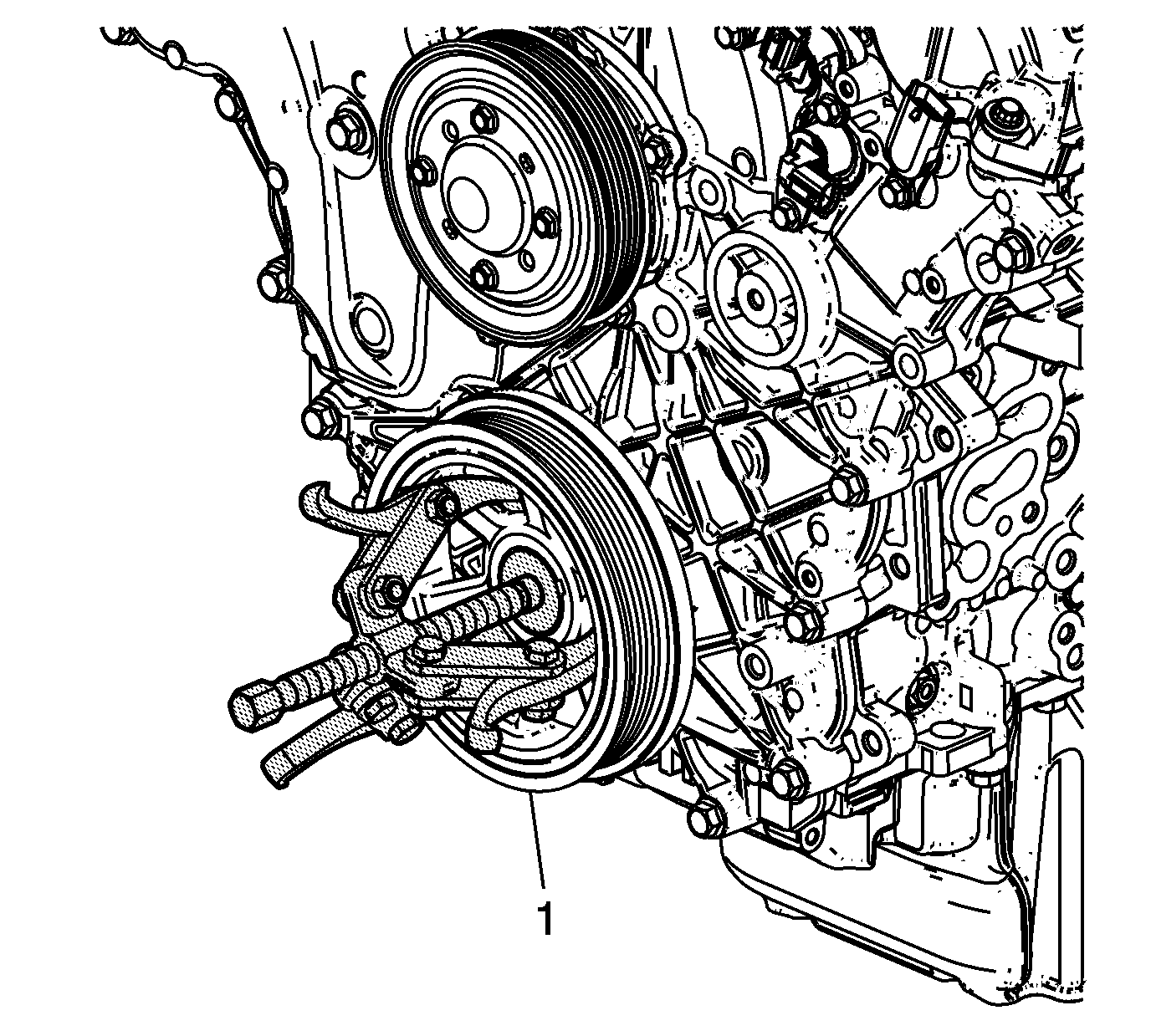

Fig 4: Pulling Crankshaft Balancer Off
Courtesy of GENERAL MOTORS COMPANY
5. Pull the crankshaft balancer (1) off by tightening the center bolt on the J 38416-B  remover until the crankshaft balancer pulls off of the crankshaft end.
6. Remove the J 38416-B  remover and J 38416-2  button from the crankshaft balancer.
Fig 5: Flywheel Holding Fixture
Courtesy of GENERAL MOTORS COMPANY
7. Remove the EN 46106  tool from the starter mounting hole.
