Engine Oil Pressure Indicator Switch Replacement

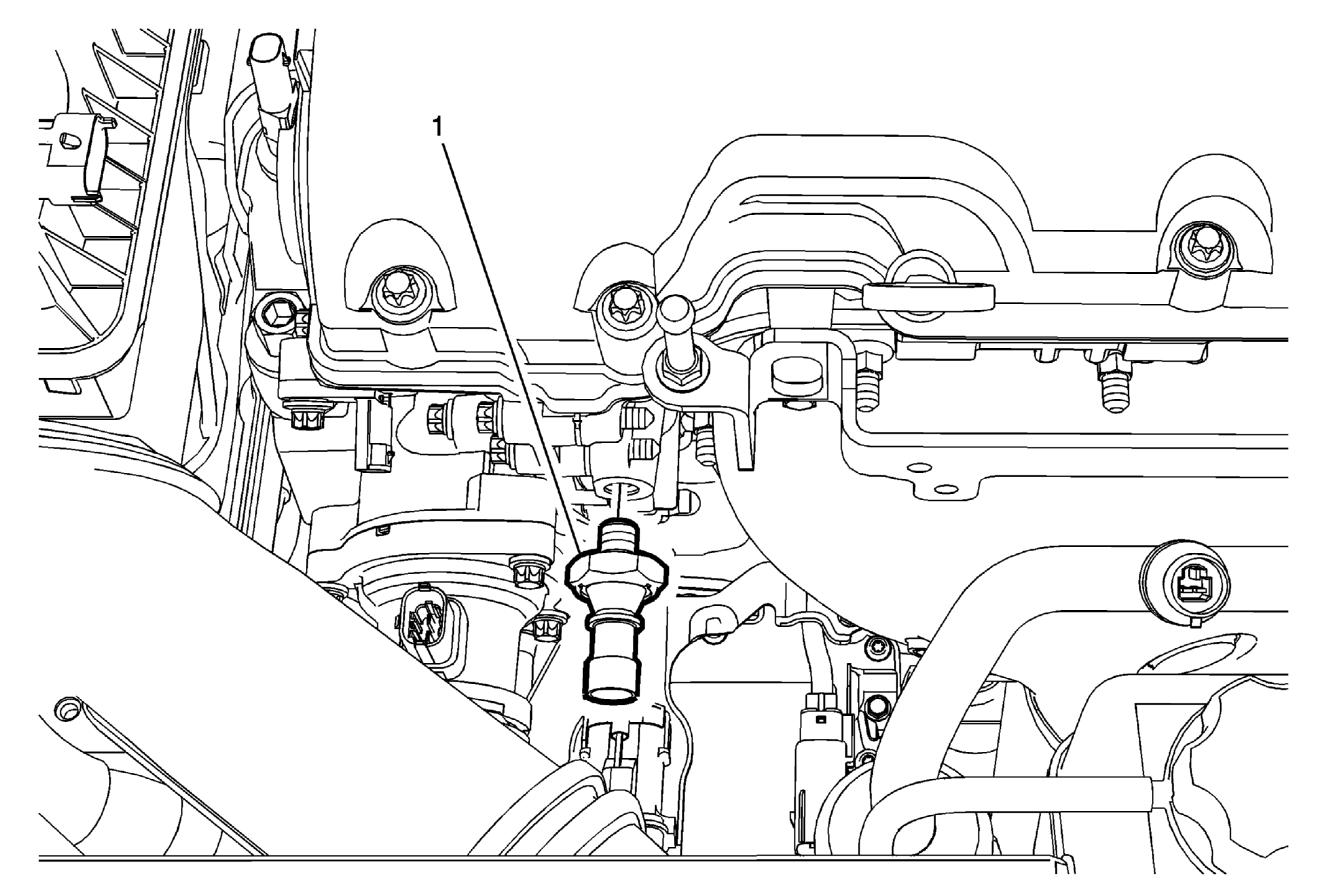

Fig 1: Engine Oil Pressure Indicator Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the air cleaner resonator outlet duct.Refer to Air Cleaner Resonator Outlet Duct Replacement .
1	Engine Oil Pressure Sensor and/or Switch CAUTION: Refer to Component Fastener Tightening Caution . Procedure Disconnect the oil pressure sensor electrical connector. Transfer the components as necessary. Tighten 20 N.m (15 lb ft)

Callout

Component Name

Preliminary Procedure
Remove the air cleaner resonator outlet duct.Refer to Air Cleaner Resonator Outlet Duct Replacement .

Engine Oil Pressure Sensor and/or Switch

CAUTION:

Procedure

Tighten
20 N.m (15 lb ft)
