X358 Body Harness to Battery Disconnect Unit Harness

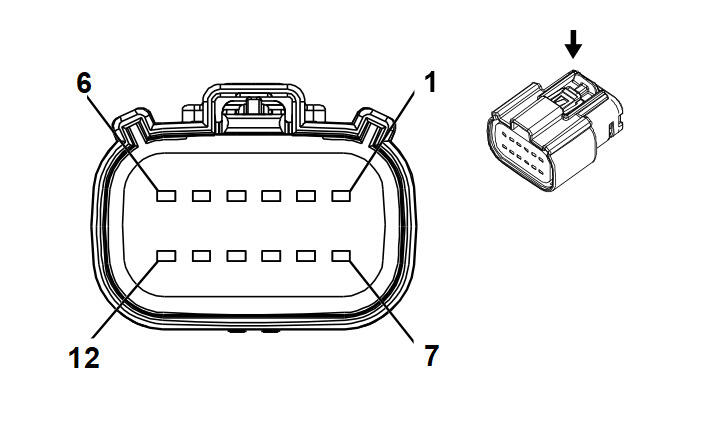

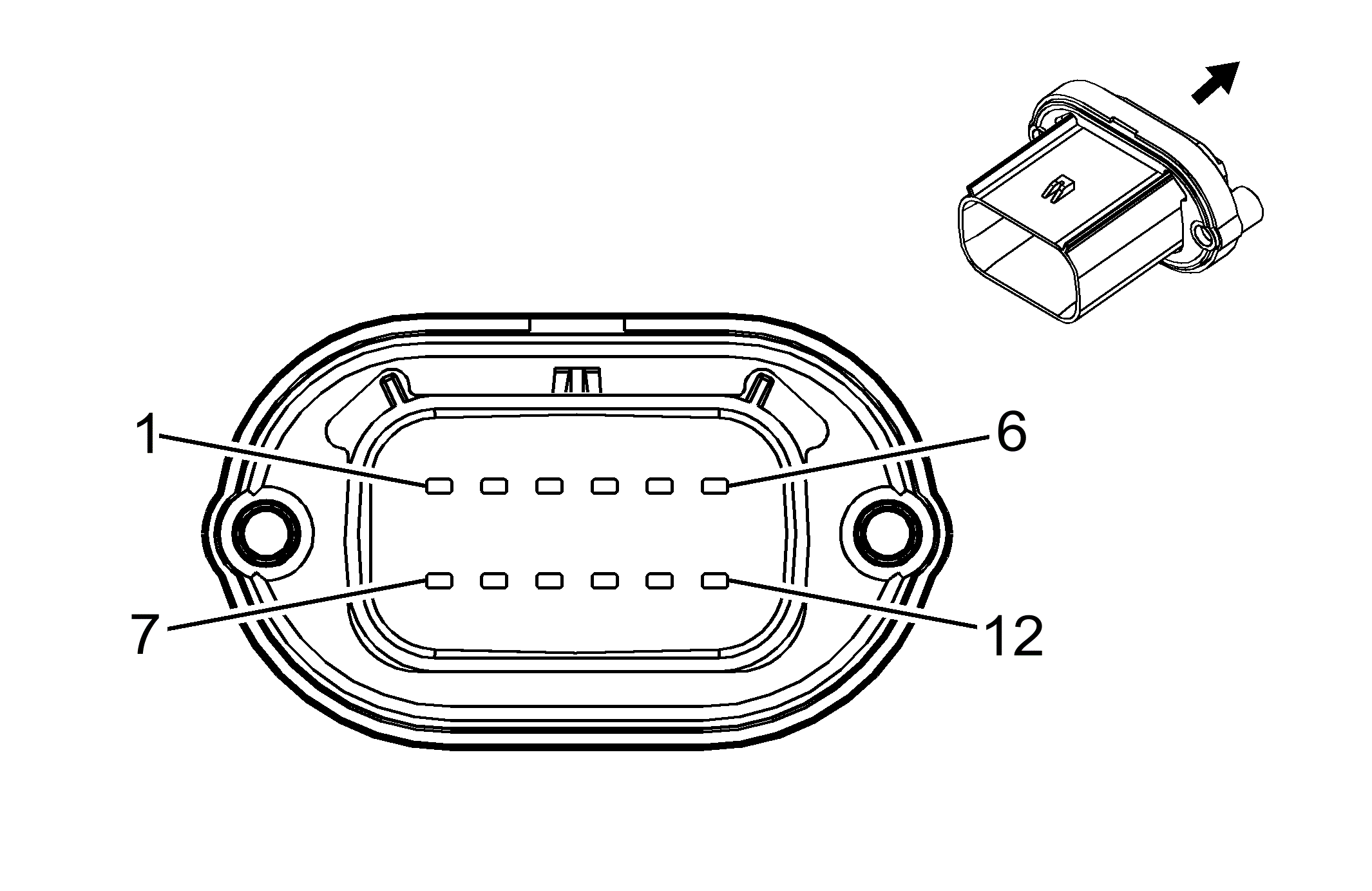

Connector Part Information Harness Type: Body OEM Connector: 33472-1254 Service Connector: 13577544 Description: 12-Way F 150 MX Series, Sealed (BK)	Connector Part Information Harness Type: Battery Disconnect Unit OEM Connector: - Service Connector: Service by Harness - See Part Catalog Description: 12-Way M

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	19300635	J-35616-2A (GY)	J-38125-217	Not Available	Not Available	Not Available	Not Available
II	Not Required	Not Available	No Tool Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.5	RD/VT	1640	I	-	Battery Positive Voltage	1	0.5	RD/VT	1640	II	-
2	0.5	VT	3195	I	-	Auxiliary Heater Control	2	0.5	VT	3195	II	-
3	0.5	L-BU/WH	3977	I	-	Accessory Wakeup Serial Data 2	3	0.5	L-BU/WH	3977	II	-
4	0.5	VT/GY	139	I	-	Run/Crank Ignition 1 Voltage	4	0.5	VT/GY	139	II	-
5	0.5	BK	2050	I	-	Ground	5	0.5	BK	2050	II	-
6	0.5	L-BU/GY	5139	I	-	High Voltage Fault Signal	6	0.5	L-BU/GY	5139	II	-
7	0.5	L-BU	2500	I	-	High Speed GMLAN Serial Data (+) 1	7	0.5	L-BU	2500	II	-
8	0.5	WH	2501	I	-	High Speed GMLAN Serial Data (-) 1	8	0.5	WH	2501	II	-
9	0.5	RD/VT	1640	I	-	Battery Positive Voltage	9	0.5	RD/VT	1640	II	-
10	0.5	BK	2050	I	-	Ground	10	0.5	BK	2050	II	-
11	0.5	L-BU	2500	I	-	High Speed GMLAN Serial Data (+) 1	11	0.5	L-BU	2500	II	-
12	0.5	WH	2501	I	-	High Speed GMLAN Serial Data (-) 1	12	0.5	WH	2501	II	-
