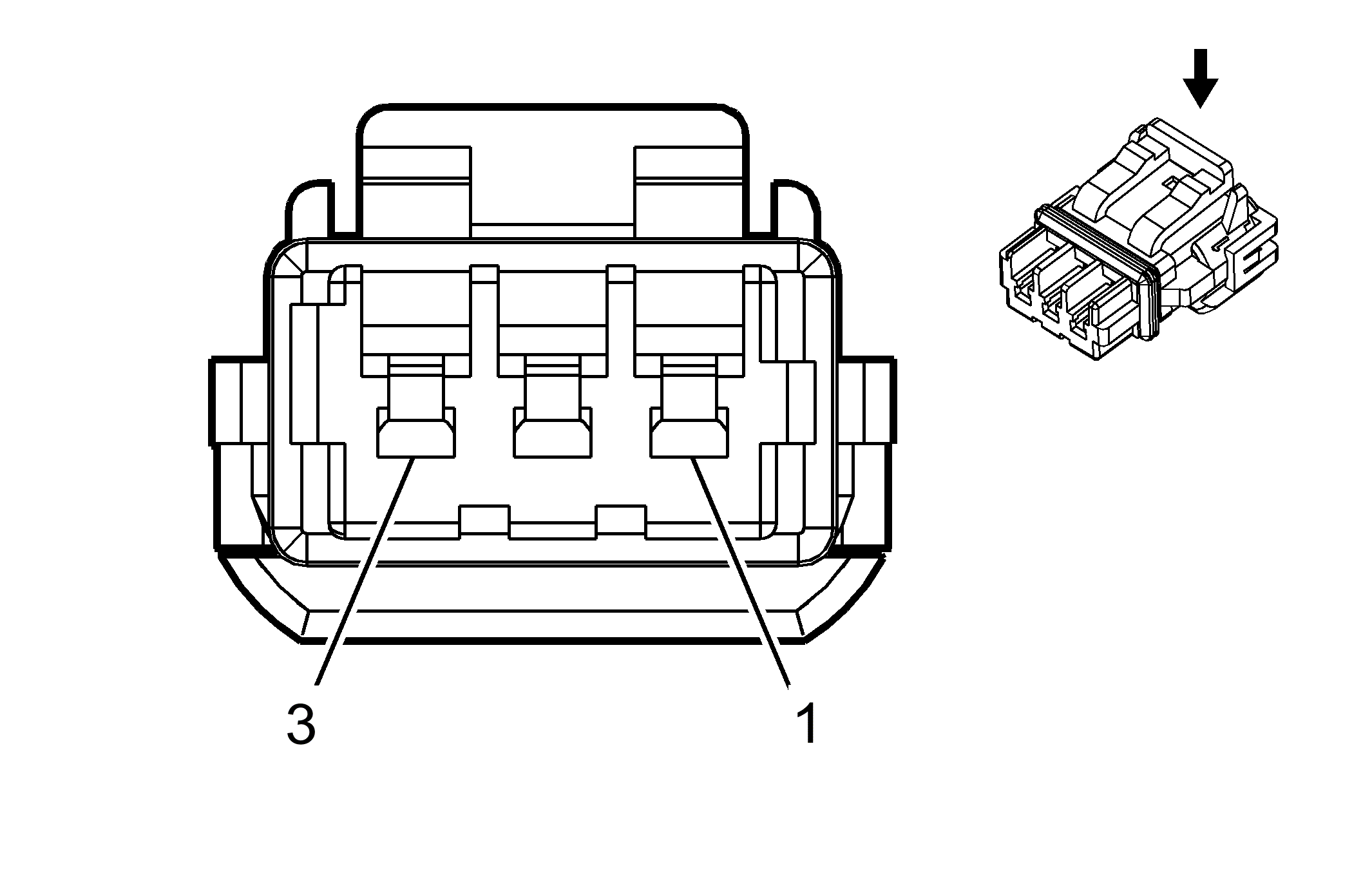

E66D Outside Rearview Mirror Lamps Assembly - Driver
|
|
Connector Part Information
- Harness Type: Outside Rearview Mirror - Driver
- OEM Connector: 52117-0340
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F 1.5 Series Sealed (WH)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BN |
1314 |
Left Front Turn Signal Lamp Supply Voltage |
I |
- |
| 2 |
0.35 |
WH/BK |
3956 |
Charging Status Indicator Control |
I |
- |
| 3 |
0.35 |
BN/BK |
1550 |
Ground |
I |
- |
|
|
Connector Part Information
- Harness Type: Outside Rearview Mirror - Driver
- OEM Connector: 52117-0340
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F Molex 1.5 Series Sealed (WH)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BN |
1314 |
Left Front Turn Signal Lamp Supply Voltage |
I |
- |
| 2 |
0.35 |
WH/BK |
3956 |
Charging Status Indicator Control |
I |
- |
| 3 |
0.35 |
BN/BK |
1550 |
Ground |
I |
- |
