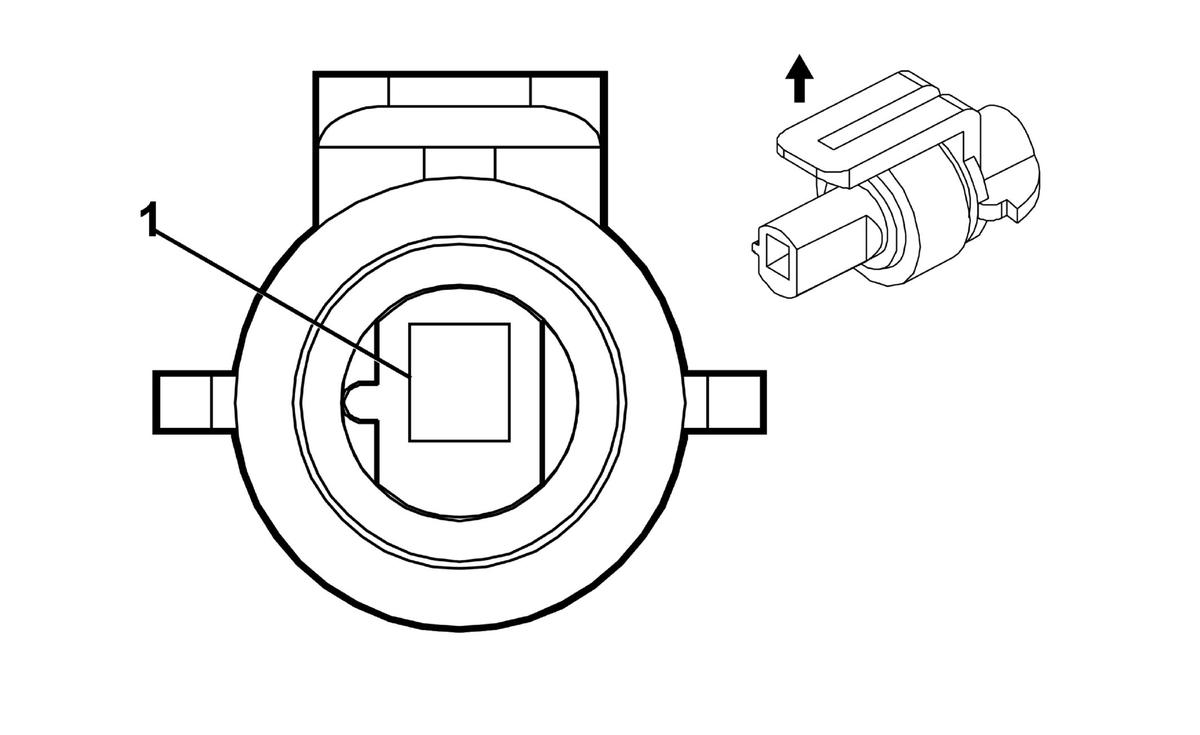

B37 Engine Oil Pressure Switch
|
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 15345499
- Service Connector: 13355771
- Description: 1-Way F 150 Metri-Pack Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
YE/L-BU |
231 |
Oil Pressure Switch Signal |
I |
- |
