| 2 |
Battery Positive Voltage |
| 2_RD/YE |
2 RD/YE |
| CAV_A |
A |
| CONN_X4 |
X4 |
| CAV_3 |
3 |
| CAV_5 |
5 |
| CAV_30 |
30 |
| CAV_86 |
86 |
| CAV_87 |
87 |
| CAV_30 |
30 |
| CAV_87 |
87 |
| CAV_4 |
4 |
| CAV_30 |
30 |
| E_REF |
E |
| F30UA |
F30UA 60A |
| F21UA |
F21UA 30A |
| F13UA |
F13UA 10A |
| F37UA |
F37UA 5A |
| F44UA |
F44UA 40A |
| F38UA |
F38UA 10A |
| F36UA |
F36UA 10A |
| F19UA |
F19UA 30A |
| F39UA |
F39UA 10A |
| F17UA |
F17UA 5A |
| F11UA |
F11UA 7.5A |
| F15UA |
F15UA 15A |
| F23UA |
F23UA 20A |
| F48UA |
F48UA 30A |
| F42UA |
F42UA 30A |
| F10UA |
F10UA 5A |
| F34UA |
F34UA 10A |
| F40UA |
F40UA 10A |
| F43UA |
F43UA 25A |
| F22UA |
F22UA 5A |
| F41UA |
F41UA 5A |
| F6UA |
F6UA 7.5B |
| F3UA |
F3UA SPARE |
| F1UA |
F1UA 15A |
| F4UA |
F4UA 15A |
| F2UA |
F2UA 7.5A |
| F53UA |
F53UA 7.5A |
| F52UA |
F52UA 5A |
| F32UA |
F32UA 5A |
| F33UA |
F33UA 5A |
| F51UA |
F51UA 7.5A |
| F50UA |
F50UA 10A |
| F54UA |
F54UA 7.5A |
| F29UA |
F29UA 30A |
| F9UA |
F9UA 7.5A |
| F18UA |
F18UA 30A |
| F6UB |
F6UB 7.5A |
| F7UA |
F7UA SPARE |
| F8UA |
F8UA SPARE |
| F27UA |
F27UA 40A |
| F16UA |
F16UA 20A |
| F14UA |
F14UA 7.5A |
| KR48 |
KR48 Headlamp High Beam Relay |
| X50A |

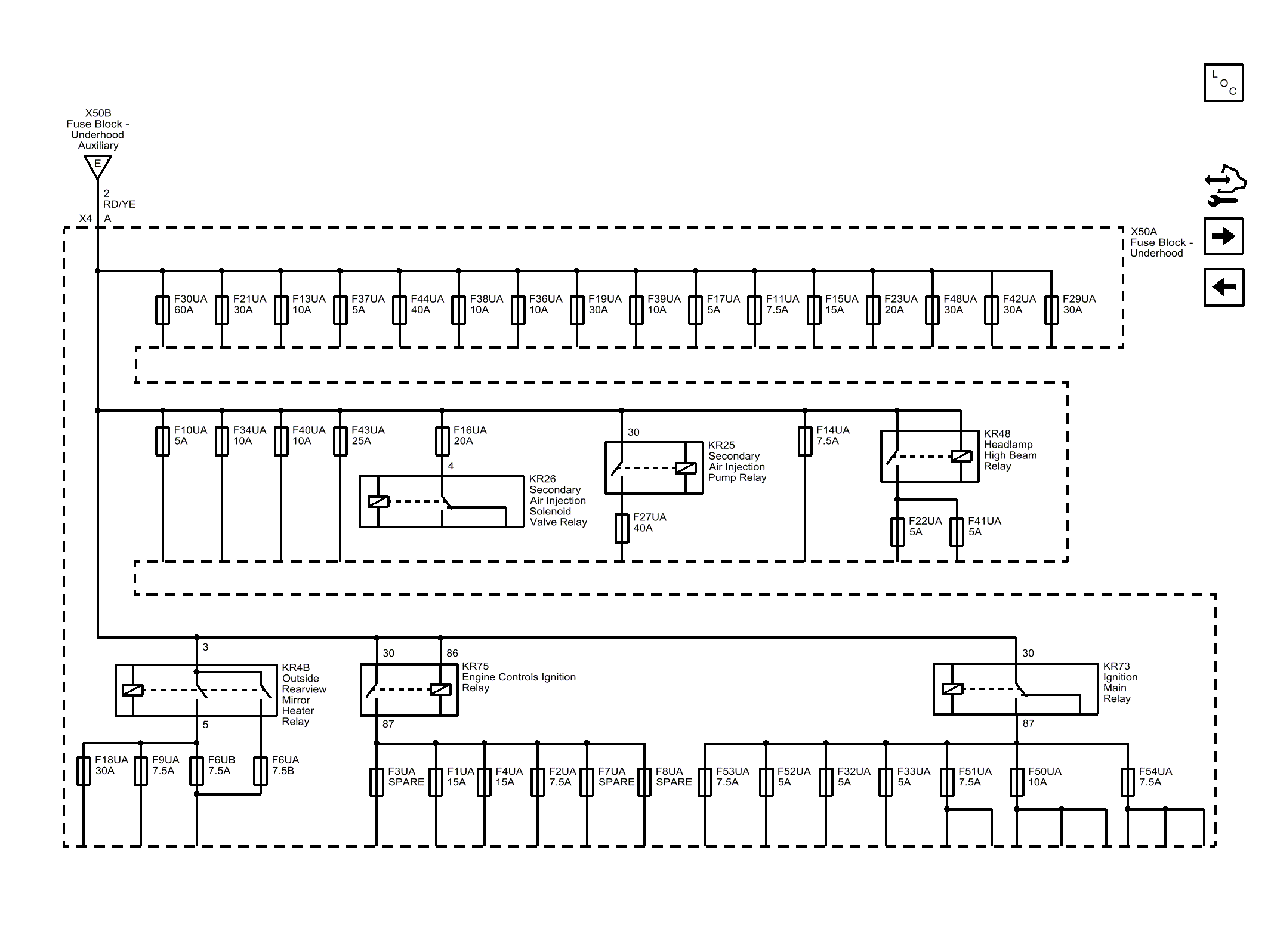

X50A Fuse Block - Underhood |
| X50B |
X50B Fuse Block - Underhood Auxiliary |
| KR75 |
KR75 Engine Controls Ignition Relay |
| KR73 |
KR73 Ignition Main Relay |
| KR26 |
KR26 Secondary Air Injection Solenoid Valve Relay |
| KR25 |
KR25 Secondary Air Injection Pump Relay |
| KR4B |
KR4B Outside Rearview Mirror Heater Relay |
