Underbody Harness Routing

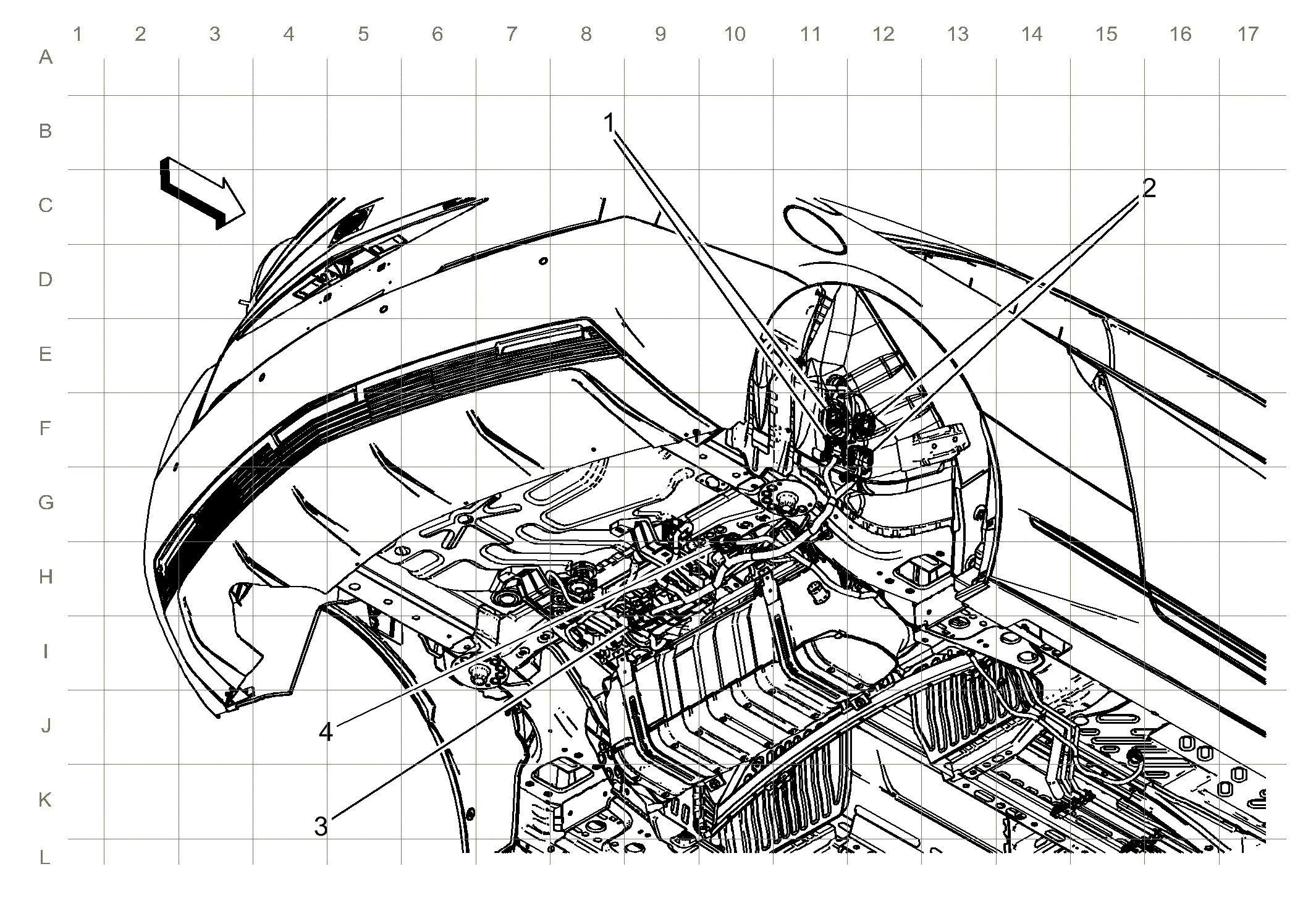

Fig 1: Underbody Harness Routing
GM3682310Courtesy of GENERAL MOTORS COMPANY
Items
1. X351 X351 Body Harness to Evaporative Emission Canister Vacuum Leak Pump Jumper Harness
2. X350 X350 Body Harness to Evaporative Emission Canister Vacuum Leak Pump Jumper Harness
3. X354 X354 Fuel Tank Harness to Evaporative Emission Canister Vacuum Leak Pump Jumper Harness
4. X355 X355 Evaporative Emission Canister Vacuum Leak Pump Jumper Harness to Fuel Tank Pressure Sensor Jumper Harness
