Right Side of Engine Compartment Harness Routing

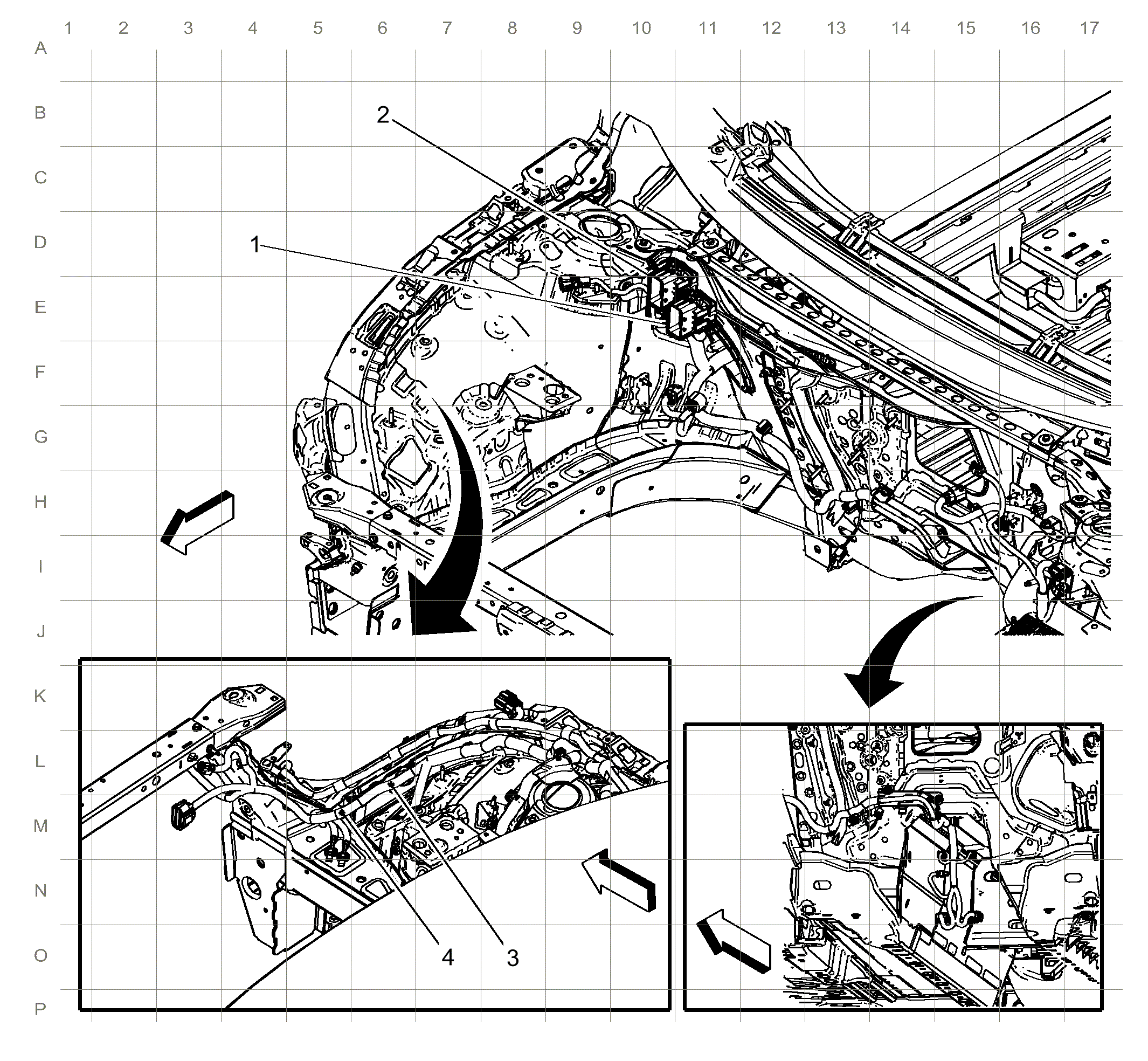

Fig 1: Right Side of Engine Compartment Harness Routing
GM3682000Courtesy of GENERAL MOTORS COMPANY
Items
1. X107 X107 Forward Lamp Harness to Body Harness
2. X105 X105 Forward Lamp Harness to Body Harness
3. J114
4. J106
