Right Rear of Passenger Compartment Harness Routing

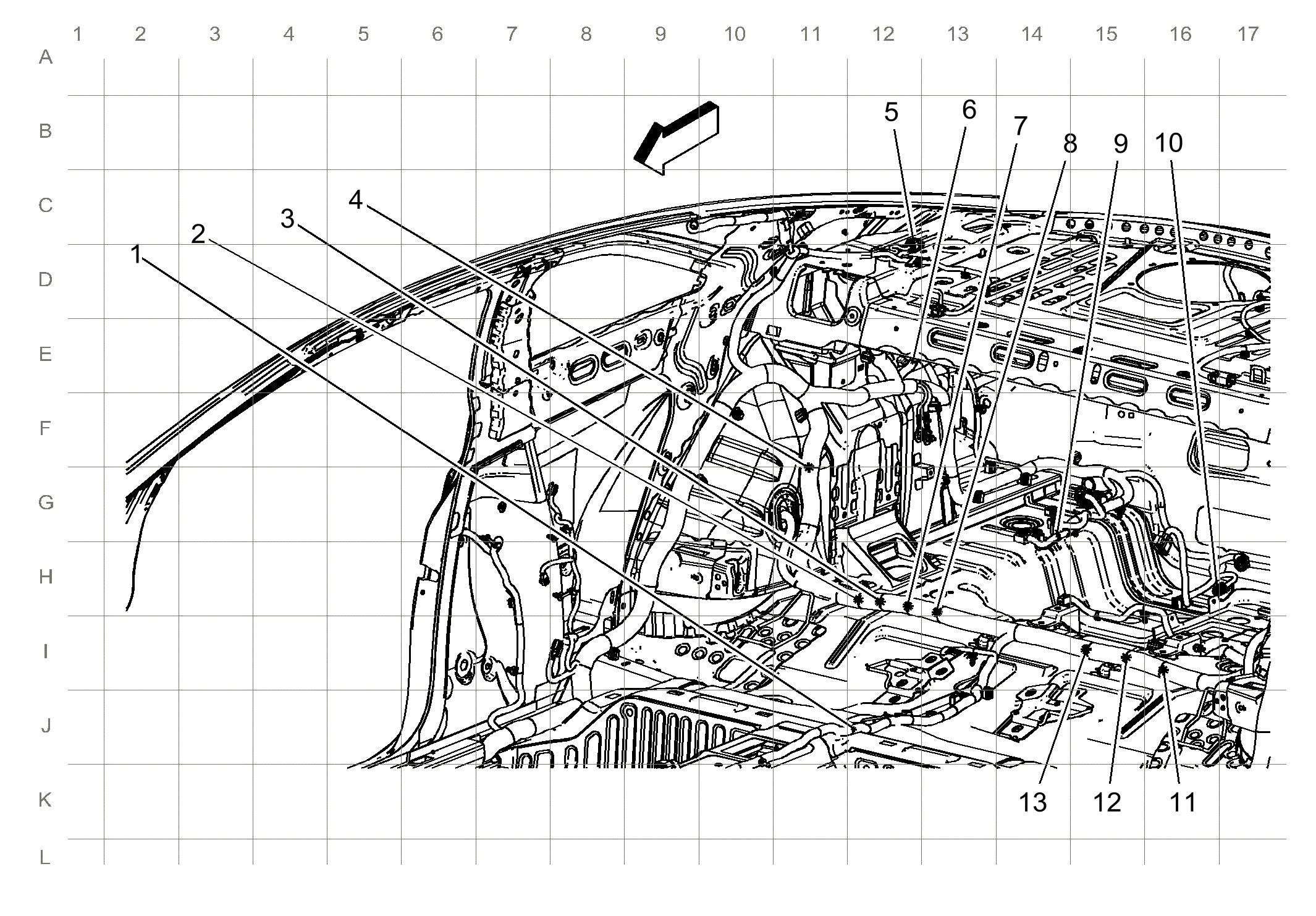

Fig 1: Right Rear of Passenger Compartment Harness Routing
GM3682053Courtesy of GENERAL MOTORS COMPANY
Items
1. J320
2. J377
3. J376
4. J401
5. X404 X404 Body Harness to Right Roof Rear Air Bag Harness
6. J403
7. J404
8. J406
9. J211
10. X452 X452 Body Harness to Battery Negative Harness
11. J405
12. J407
13. J402
