Right Front of Passenger Compartment Harness Routing

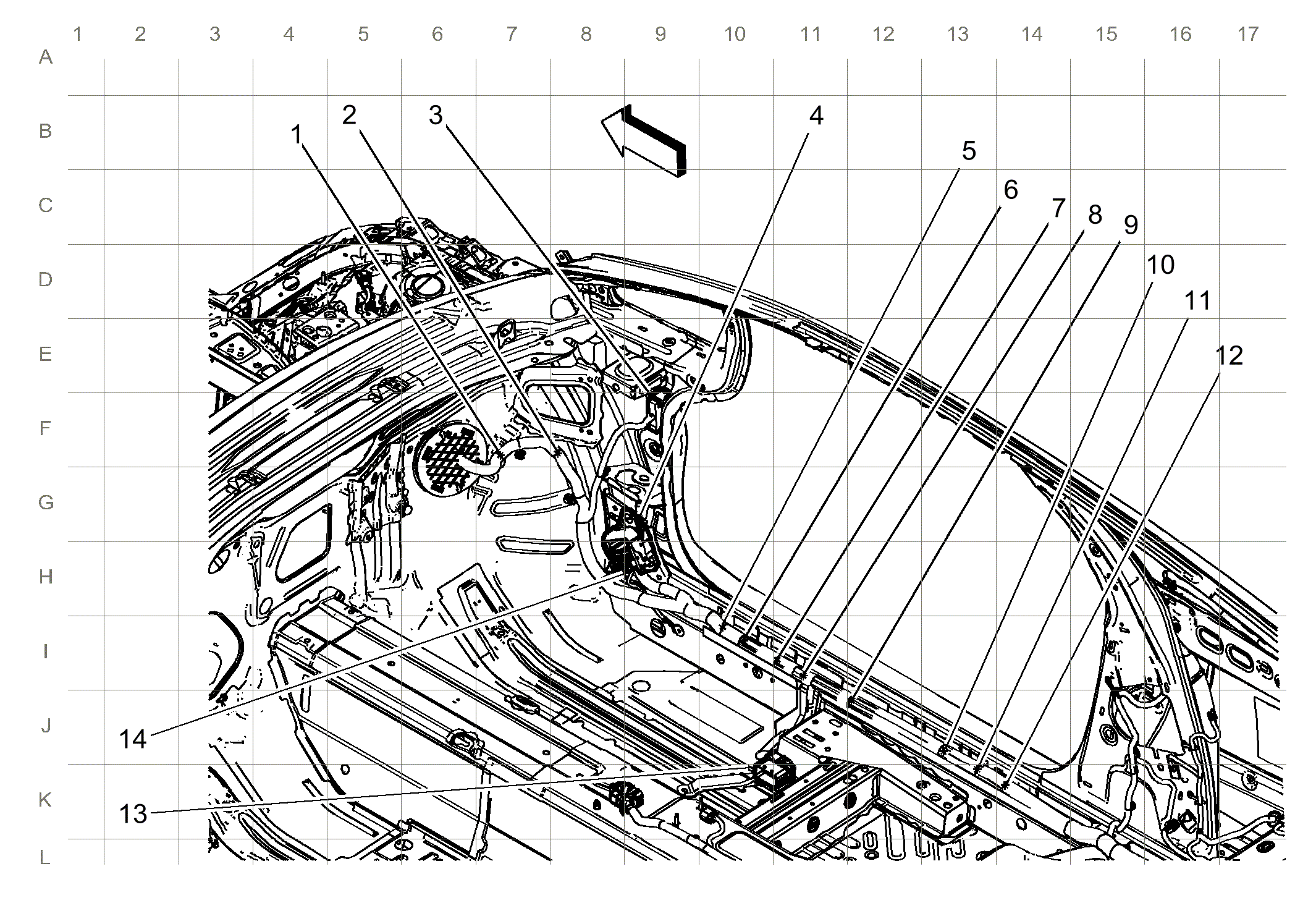

Fig 1: Right Front of Passenger Compartment Harness Routing
GM4550612Courtesy of GENERAL MOTORS COMPANY
Items
1. J229
2. J302
3. X600 X600 Passenger Door Harness to Body Harness
4. X275 X275 Instrument Panel Harness to Body Harness
5. J305
6. J323
7. J324
8. J317
8. J366
9. J325
10. J329
11. J327
12. X320 X320 Passenger Seat Harness to Body Harness
13. X212 X212 Body Harness to Instrument Panel Harness (UE1)
