Passenger Door Harness Routing

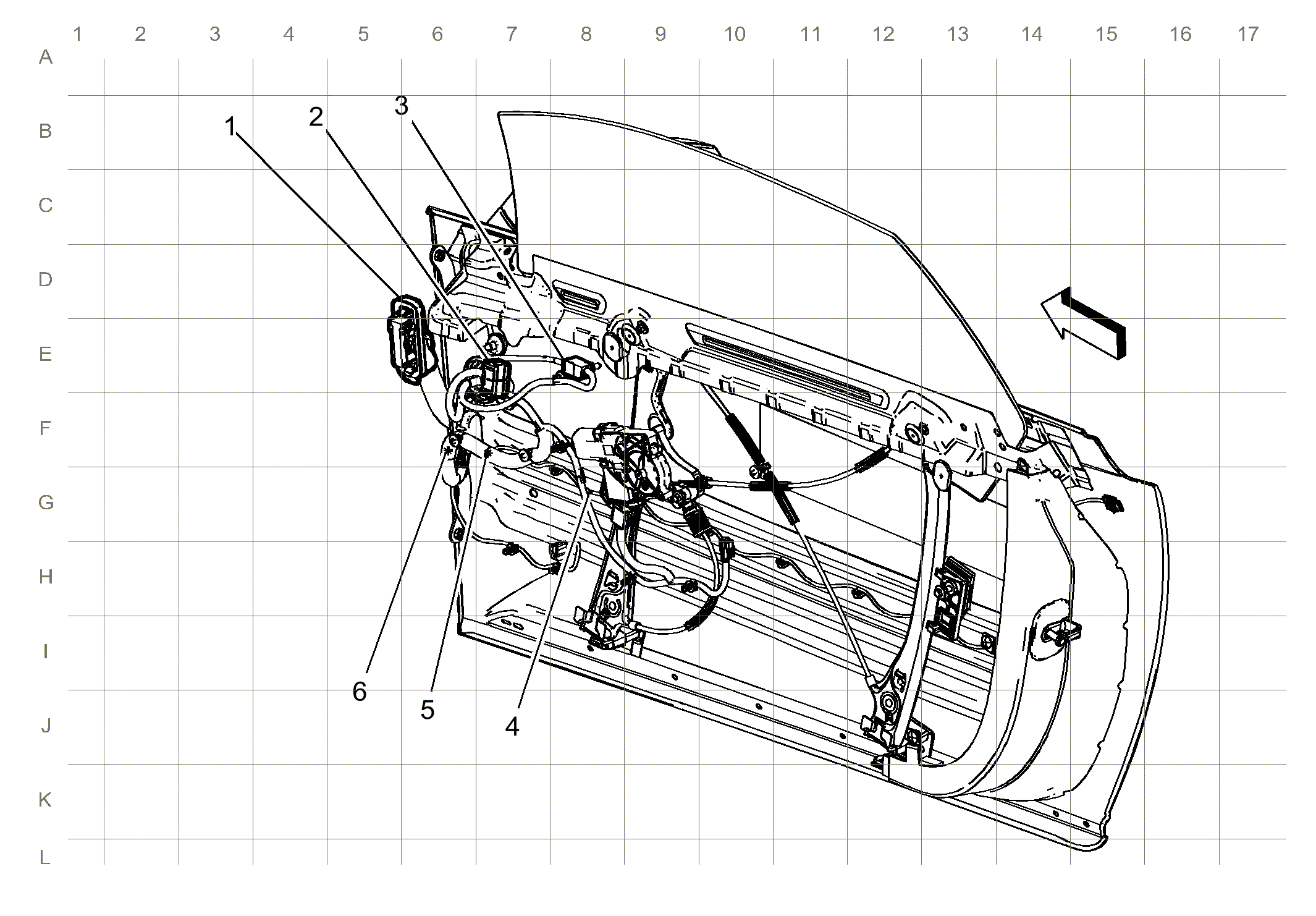

Fig 1: Passenger Door Harness Routing
GM3682041Courtesy of GENERAL MOTORS COMPANY
Items
1. X600 X600 Passenger Door Harness to Body Harness
2. X605 X605 Passenger Door Harness to Passenger Door Trim Harness
3. X610 X610 Outside Rearview Mirror - Passenger Harness to Passenger Door Harness
4. J611
5. J613
6. J615
