Left Rear of Passenger Compartment Harness Routing

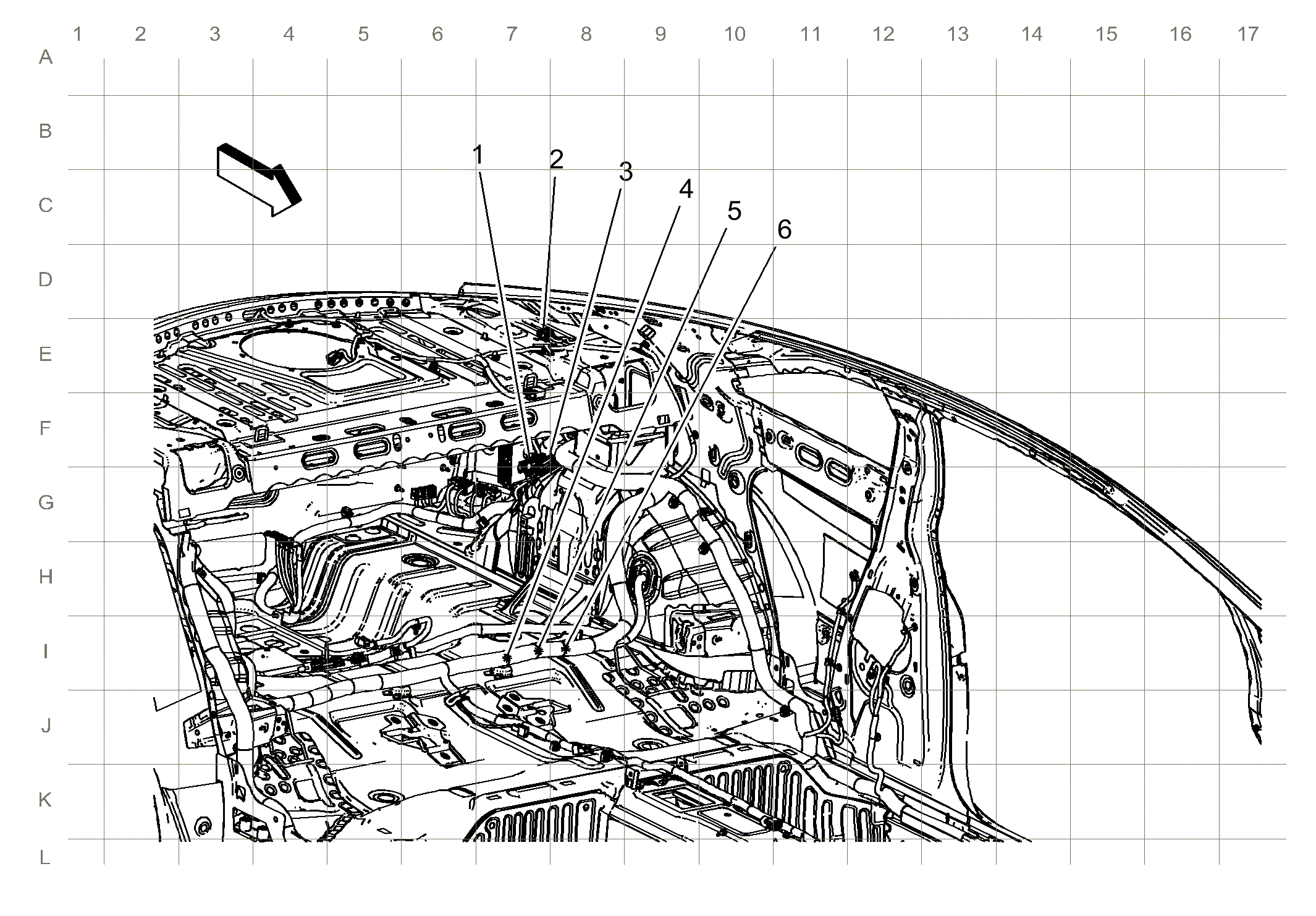

Fig 1: Left Rear of Passenger Compartment Harness Routing
GM3682315Courtesy of GENERAL MOTORS COMPANY
Items
1. JX400
2. X403 X403 Body Harness to Left Roof Rear Air Bag Harness
3. X406 X406 Body Harness to Body Harness
4. J402
5. J407
6. J405
