Left Front of Passenger Compartment Harness Routing

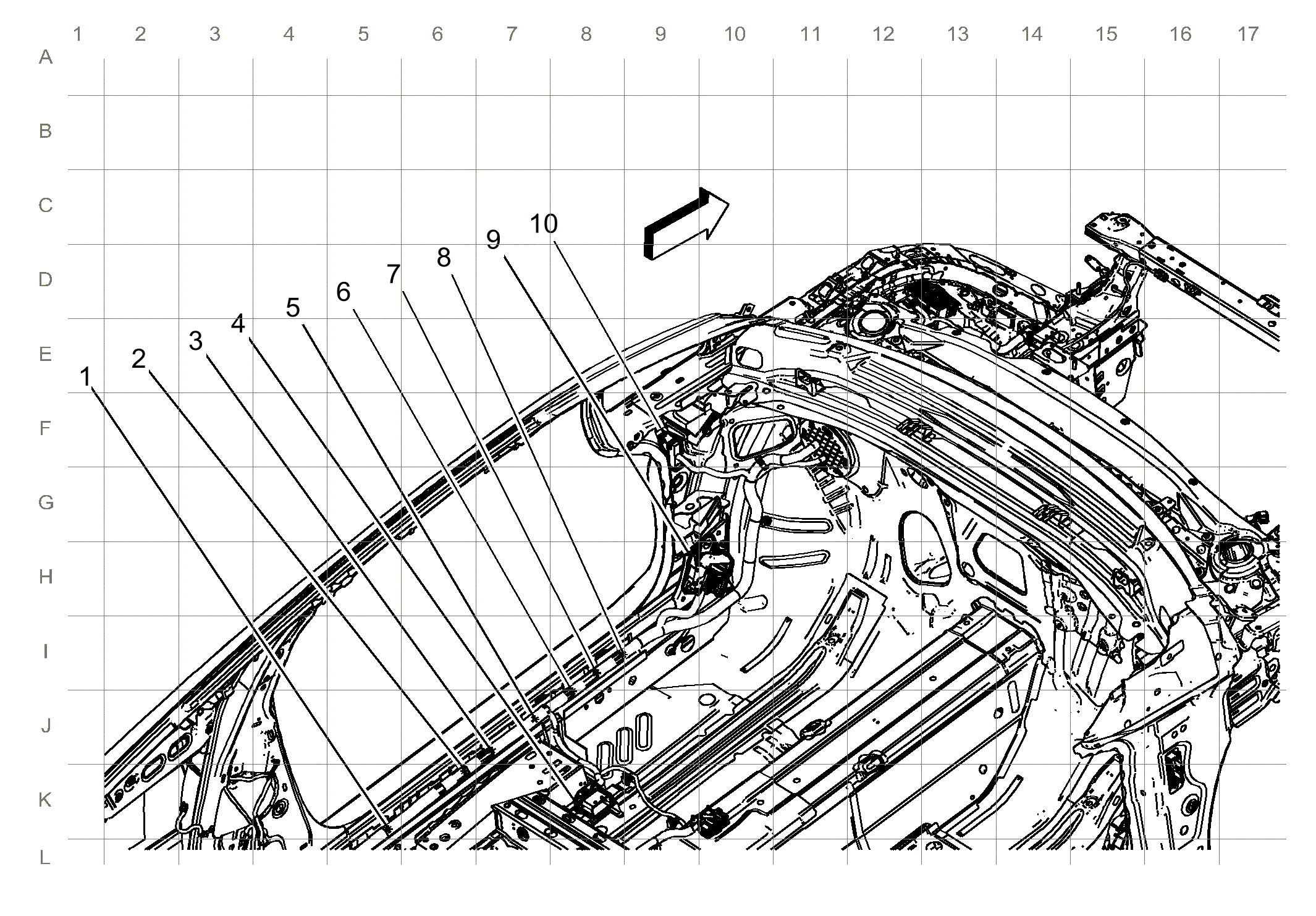

Fig 1: Left Front of Passenger Compartment Harness Routing
GM3682319Courtesy of GENERAL MOTORS COMPANY
Items
1. J312
2. J303
3. J328
4. X310 X310 Driver Seat Harness to Body Harness
5. J326
6. J321
7. J333
8. J322
9. X225 X225 Instrument Panel Harness to Body Harness
10. X500 X500 Driver Door Harness to Body Harness
