Headliner Harness Routing

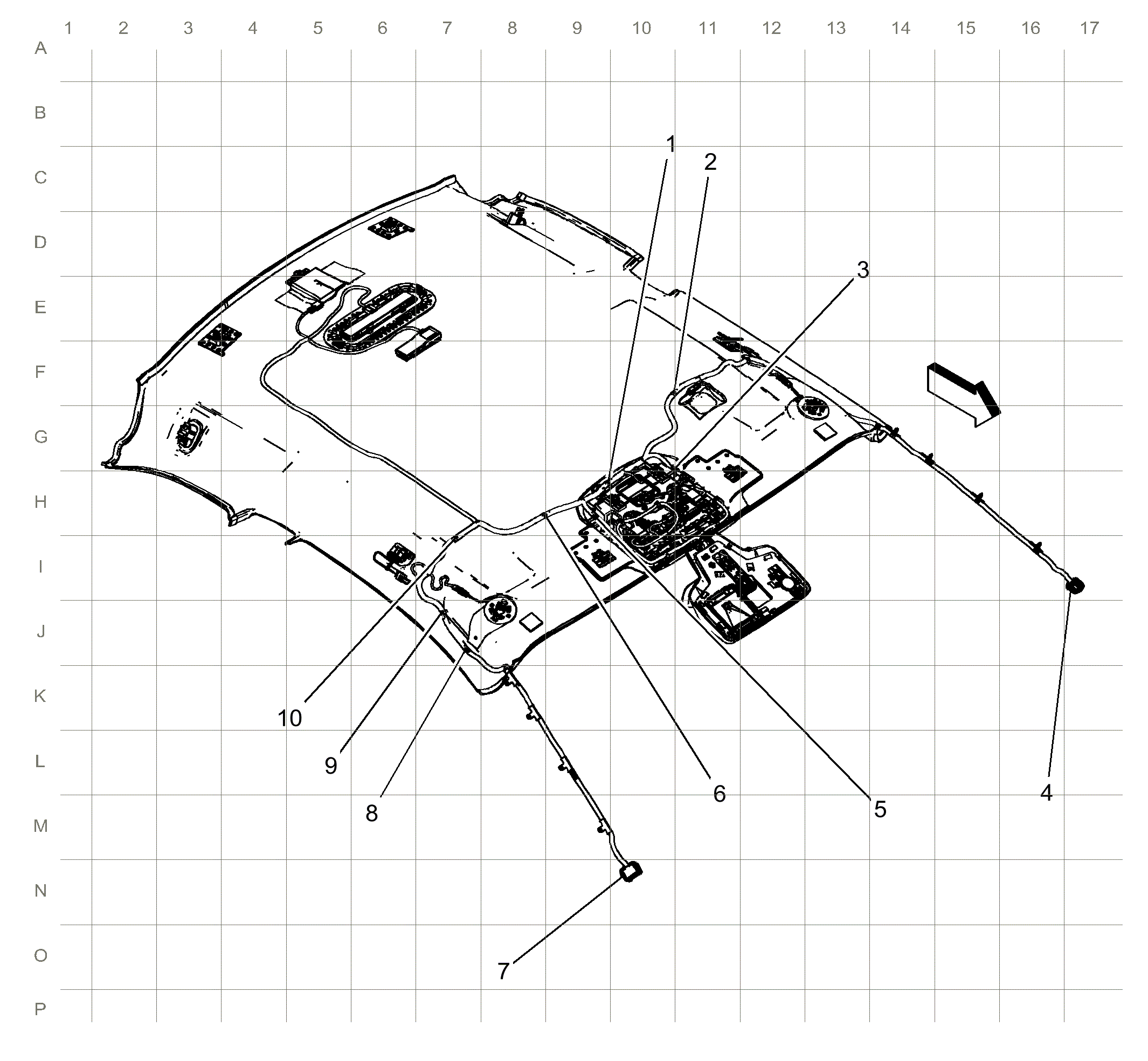

Fig 1: Headliner Harness Routing
GM3682323Courtesy of GENERAL MOTORS COMPANY
Items
1. J350
2. J315
3. J356
4. X326 X326 Headliner Harness to Instrument Panel Harness
5. J351
6. J314
7. X325 X325 Headliner Harness to Instrument Panel Harness
8. J354
9. J353
10. J352
