Driver Door Harness Routing

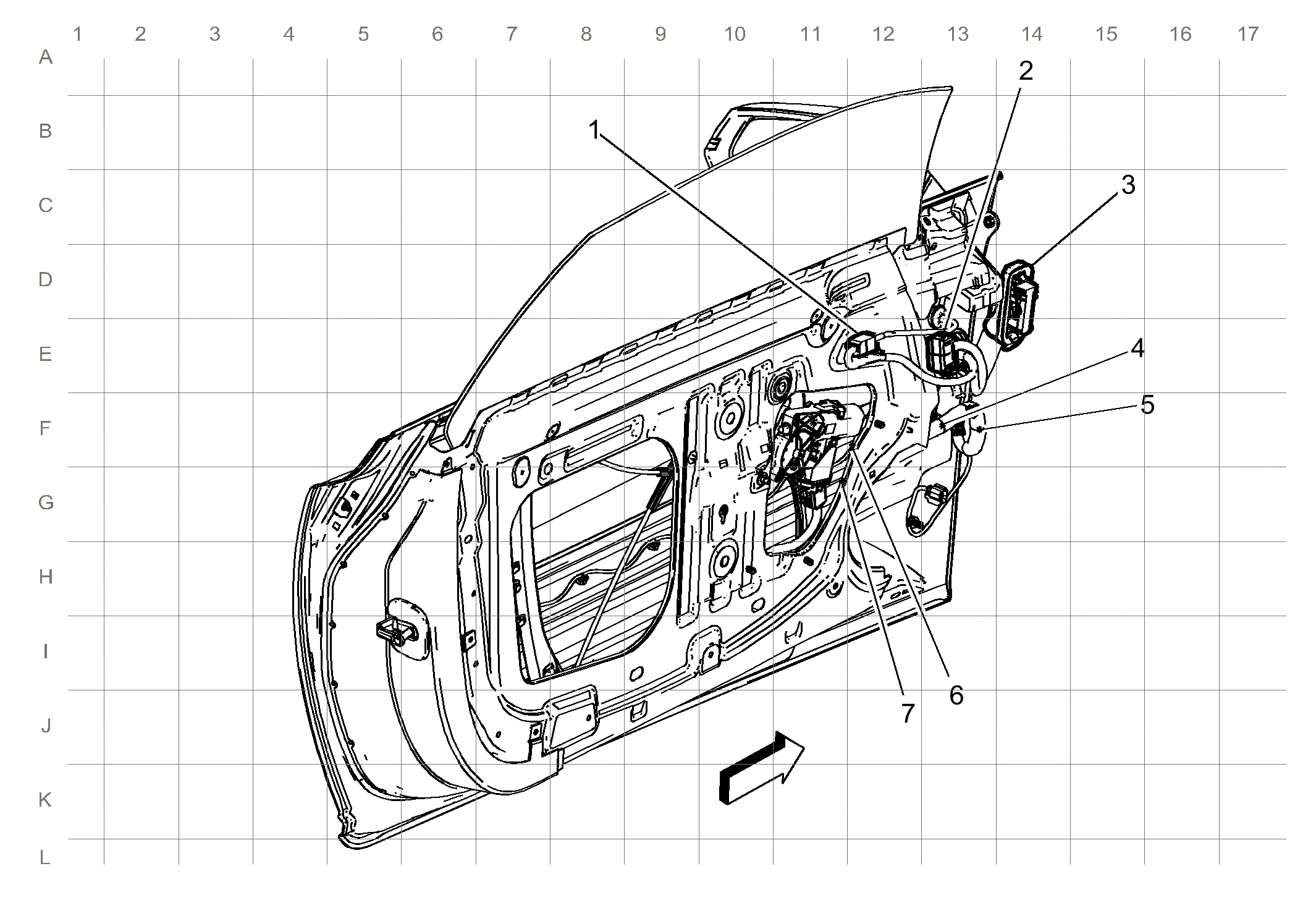

Fig 1: Driver Door Harness Routing
GM3682057Courtesy of GENERAL MOTORS COMPANY
Items
1. X510 X510 Outside Rearview Mirror - Driver Harness to Driver Door Harness
2. X505 X505 Driver Door Harness to Driver Door Trim Harness
3. X500 X500 Driver Door Harness to Body Harness
4. J513
5. J514
6. J515
7. J516
