Center Console Harness Routing

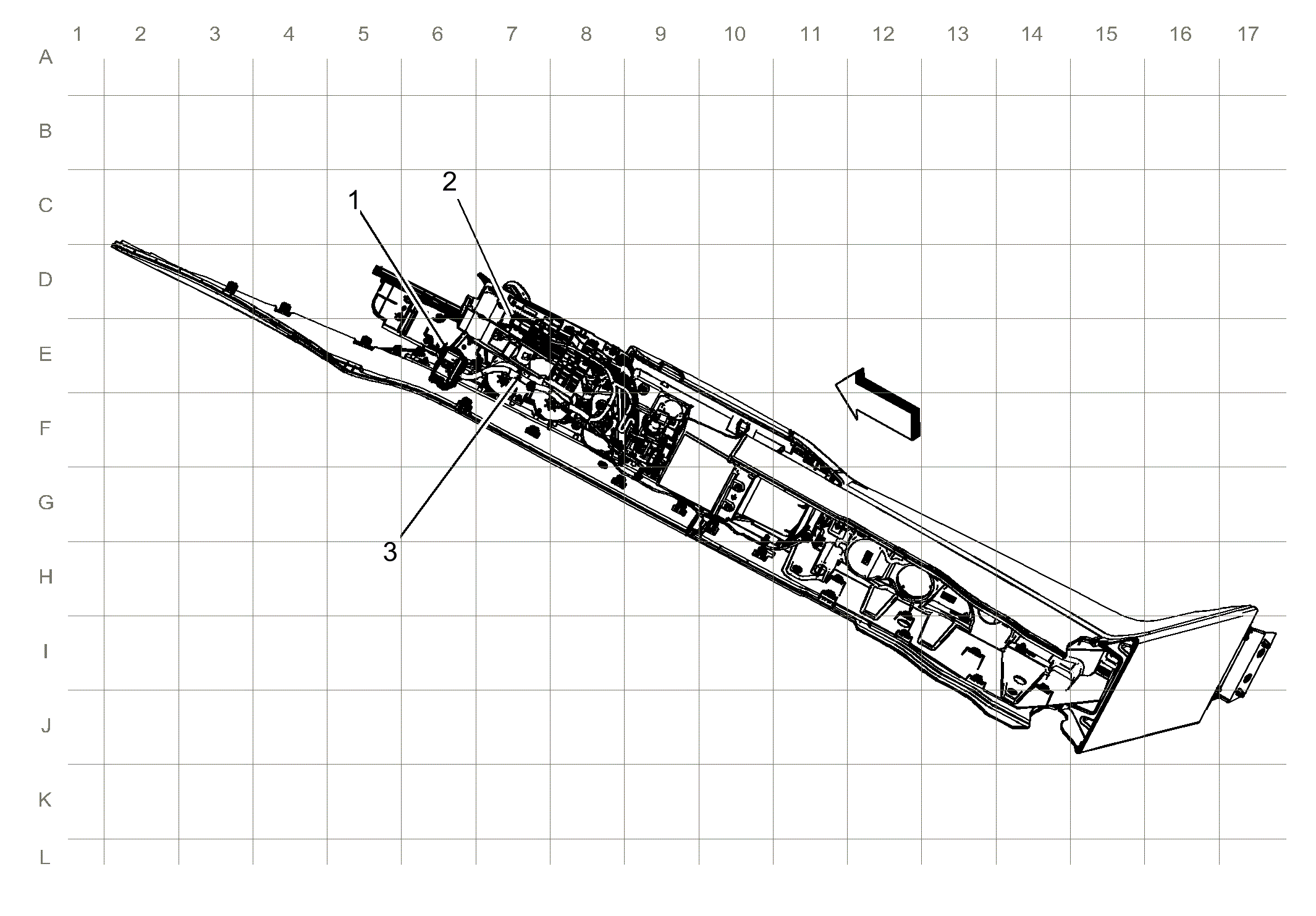

Fig 1: Center Console Harness Routing
GM3682306Courtesy of GENERAL MOTORS COMPANY
Items
1. X315 X315 Floor Console Harness to Instrument Panel Harness
2. X213 X213 Floor Console Harness to Instrument Panel Harness
3. J331
