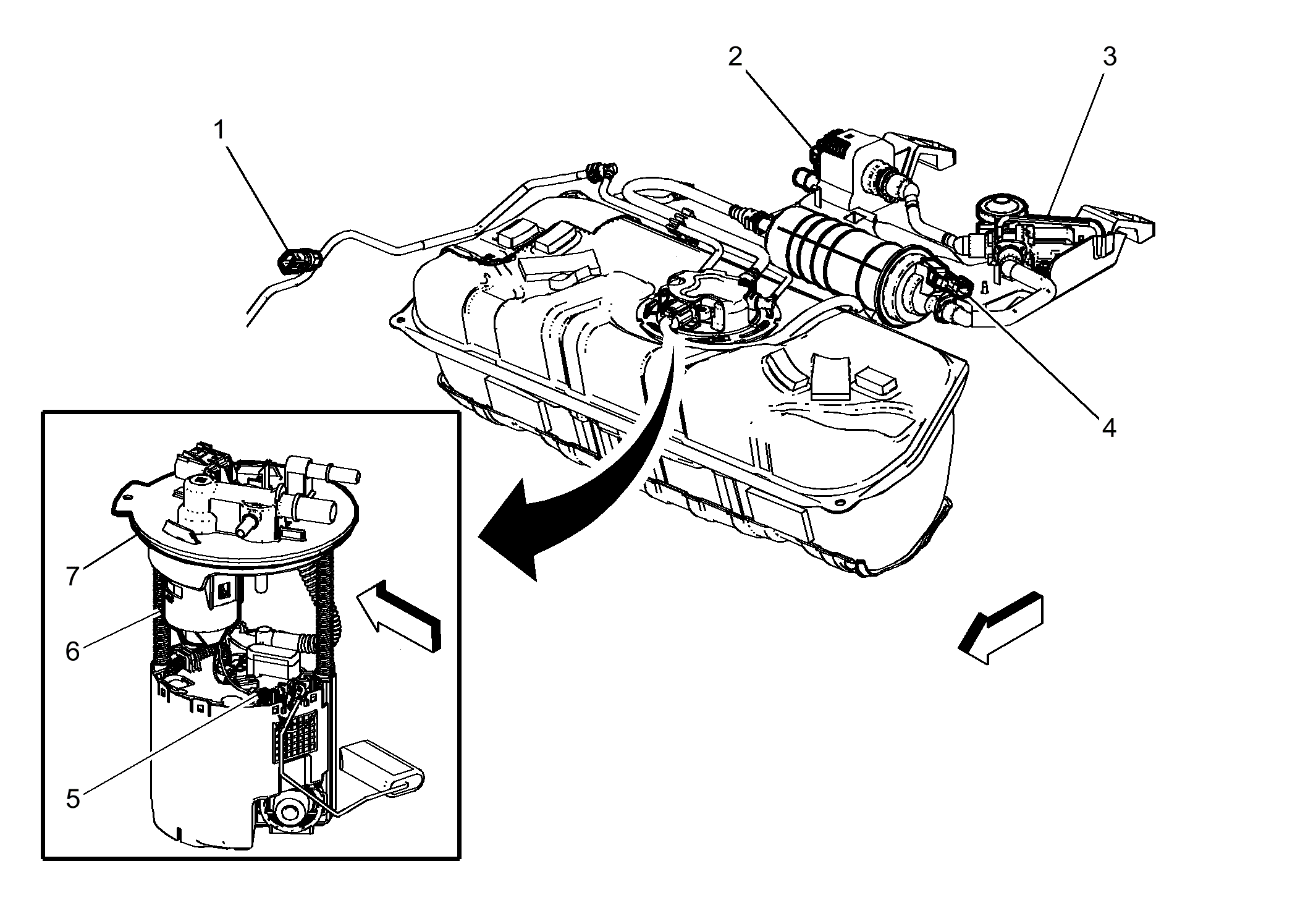

Underbody - Fuel System Components
Underbody - Fuel System Components
| Items |
|---|
| 1. B47 Fuel Pressure Sensor B47 Fuel Pressure Sensor |
| 2. Q63 Evaporative Emission System Leak Detection Pump Assembly Q63 Evaporative Emission System Leak Detection Pump Assembly |
| 3. Q13 Evaporative Emission Vent Solenoid Valve Q13 Evaporative Emission Vent Solenoid Valve |
| 4. B150 Fuel Tank Pressure Sensor B150 Fuel Tank Pressure Sensor |
| 5. B46 Fuel Level Sensor |
| 6. G12 Fuel Pump |
| 7. A7 Fuel Pump and Level Sensor Assembly A7 Fuel Pump and Level Sensor Assembly |
