Passenger Seat Components (1 of 2)

Items
1. S115P Easy Entry Switch - Passenger Seat S115P Easy Entry Switch - Passenger Seat
2. E14C Seat Heating Element - Passenger Back E14C Seat Heating Element - Passenger Back
3. E14D Seat Heating Element - Passenger Cushion E14D Seat Heating Element - Passenger Cushion
4. F112P Seat Belt Retractor Pretensioner - Passenger F112P Seat Belt Retractor Pretensioner - Passenger
5. M55P Seat Rear Vertical Motor - Passenger M55P Seat Rear Vertical Motor - Passenger
6. X55MF Fuse Holder - Passenger Seat Forward Movement X55MF Fuse Holder - Passenger Seat Forward Movement
7. X55MR Fuse Holder - Passenger Seat Rearward Movement X55MR Fuse Holder - Passenger Seat Rearward Movement
8. K29 Seat Heating Control Module K29 Seat Heating Control Module X1 K29 Seat Heating Control Module X2
9. M50P Seat Front Vertical Motor - Passenger M50P Seat Front Vertical Motor - Passenger
10. M51P Seat Horizontal Motor - Passenger M51P Seat Horizontal Motor - Passenger
11. S64P Seat Adjuster Switch - Passenger S64P Seat Adjuster Switch - Passenger X1 S64P Seat Adjuster Switch - Passenger X2
12. F113P Seat Belt Anchor Pretensioner - Passenger F113P Seat Belt Anchor Pretensioner - Passenger
13. F106RF Seat Side Air Bag - Right Front F106RF Seat Side Air Bag - Right Front

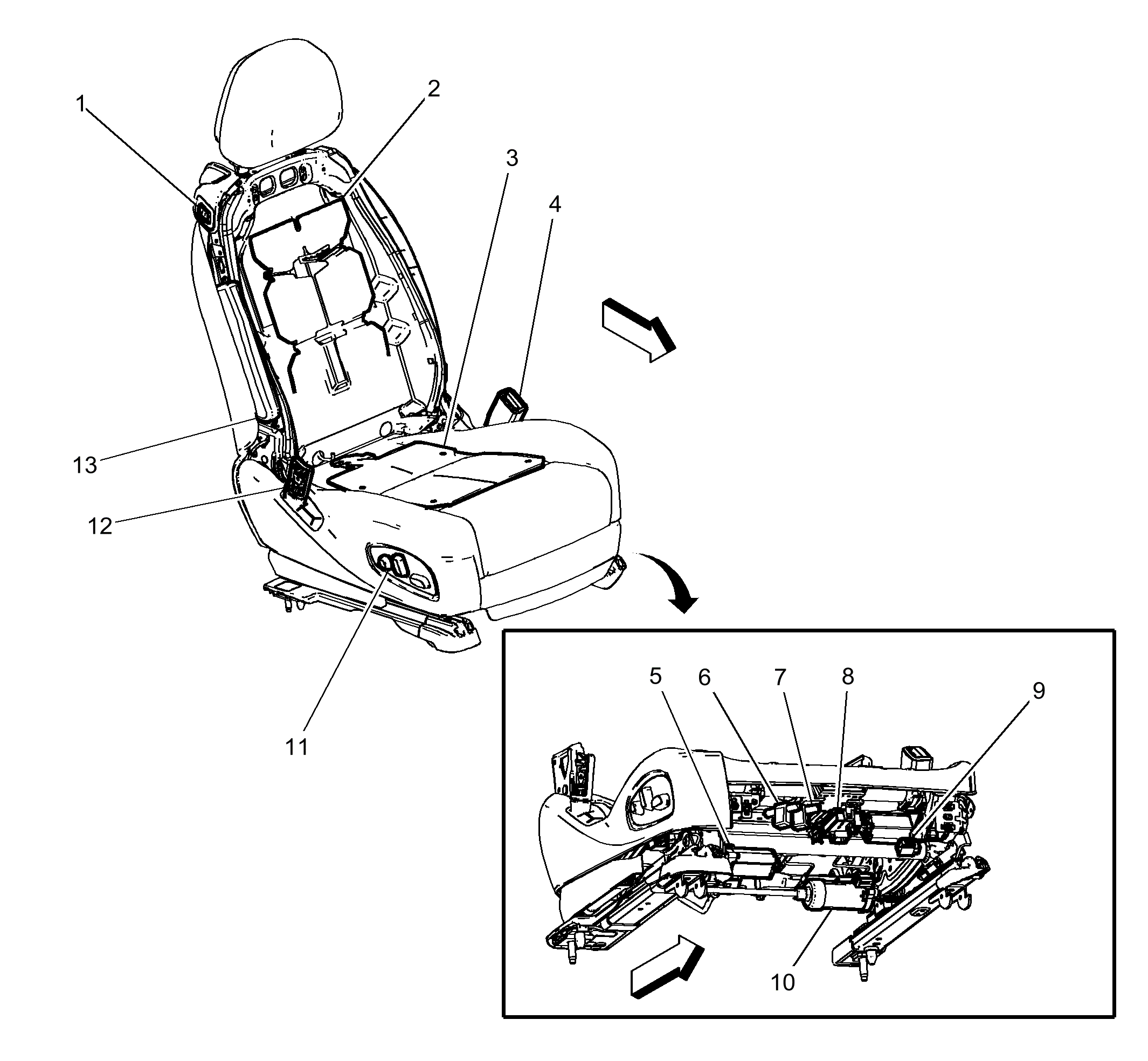

Fig 1: Passenger Seat Components (1 of 2)

Courtesy of GENERAL MOTORS COMPANY
