Driver Seat Components (1 of 2)

Items
1. F106LF Seat Side Air Bag - Left Front F106LF Seat Side Air Bag - Left Front
2. Q51D Seat Lumbar Support Valve Assembly - Driver Q51D Seat Lumbar Support Valve Assembly - Driver
3. M56D Seat Recline Motor - Driver M56D Seat Recline Motor - Driver
4. G31D Seat Lumbar/Bolster Pump - Driver G31D Seat Lumbar/Bolster Pump - Driver
5. KR159D Seat Lumbar Support Horizontal Relay - Driver KR159D Seat Lumbar Support Horizontal Relay - Driver (H6P)
6. KR158D Seat Lumbar Support Vertical Relay - Driver (H6P) KR158D Seat Lumbar Support Vertical Relay - Driver (H6P)
7. F113D Seat Belt Anchor Pretensioner - Driver F113D Seat Belt Anchor Pretensioner - Driver
8. K40D Seat Memory Control Module - Driver K40D Seat Memory Control Module - Driver X1 K40 Seat Memory Control Module X2 K40D Seat Memory Control Module - Driver X3 K40D Seat Memory Control Module - Driver X4
9. F112D Seat Belt Retractor Pretensioner - Driver F112D Seat Belt Retractor Pretensioner - Driver
10. M55D Seat Rear Vertical Motor - Driver M55D Seat Rear Vertical Motor - Driver
11. M51D Seat Horizontal Motor - Driver M51D Seat Horizontal Motor - Driver
12. M50D Seat Front Vertical Motor - Driver M50D Seat Front Vertical Motor - Driver

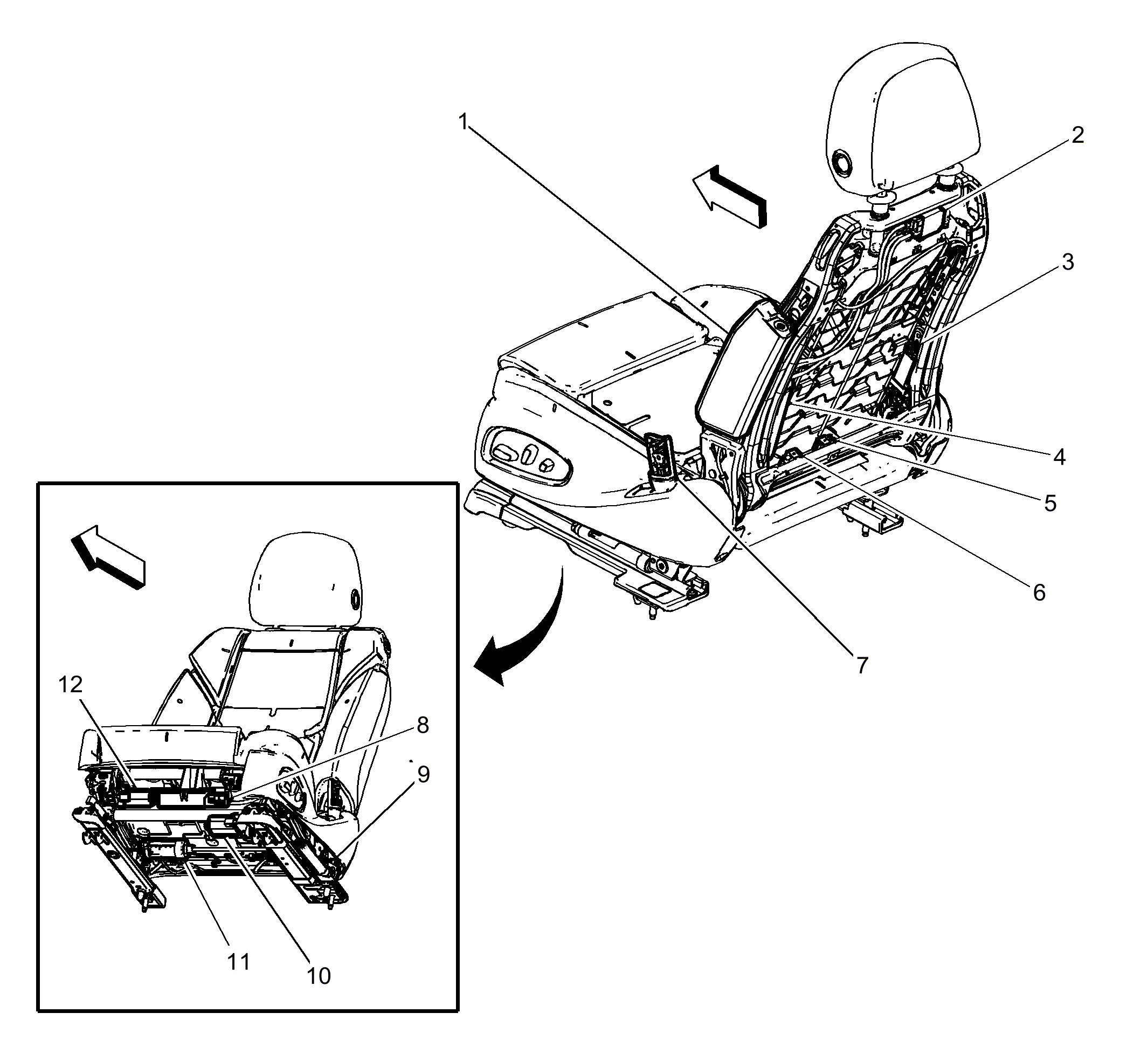

Fig 1: Driver Seat Components (1 of 2)

Courtesy of GENERAL MOTORS COMPANY
