Instrument Panel Lower Center Trim Plate Applique Replacement

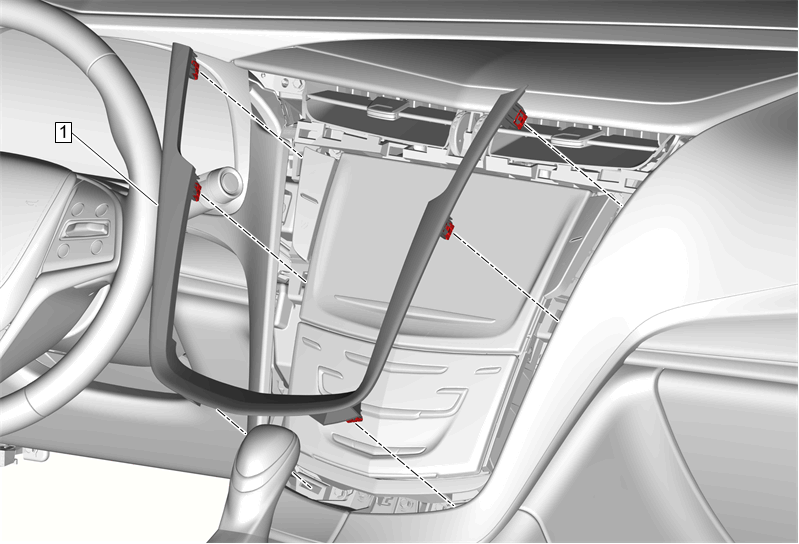

Fig 1: Instrument Panel Lower Center Trim Plate Applique

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Instrument Panel Center Trim Plate Applique Replacement .
1	Instrument Panel Lower Center Trim Plate Applique Procedure  Use a flat bladed plastic trim tool in order to release the retainers securing the trim plate applique to the instrument panel assembly.
