Instrument Panel Extension Replacement

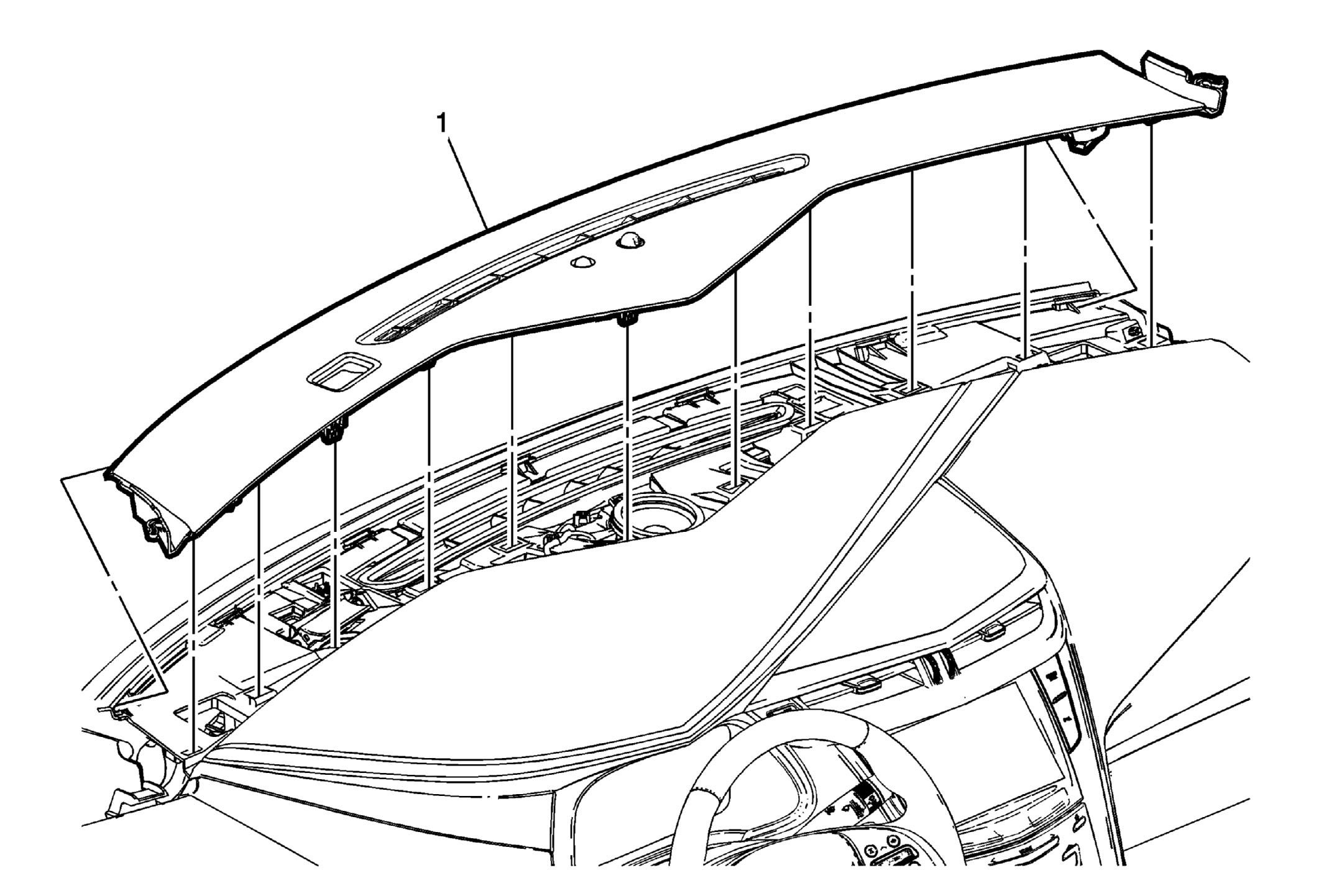

Fig 1: Instrument Panel Extension

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the windshield garnish molding. Refer to Windshield Garnish Molding Replacement .
1	Instrument Panel Extension Procedure Use a flat bladed plastic tool to remove. Disconnect all electrical connectors. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Remove the windshield garnish molding. Refer to Windshield Garnish Molding Replacement .

Instrument Panel Extension

Procedure
