Instrument Panel Cluster Trim Plate Replacement

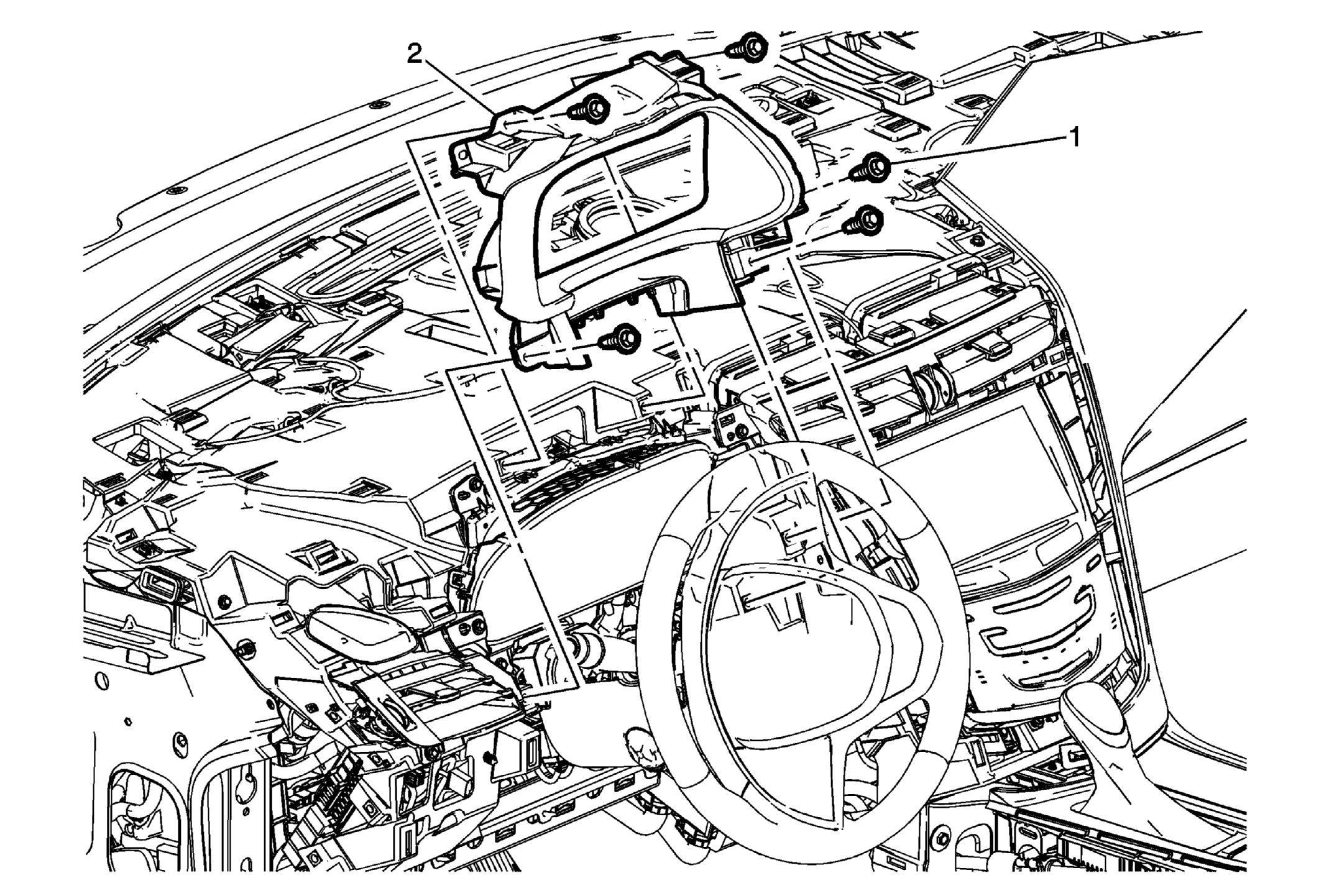

Fig 1: Instrument Panel Cluster Trim Plate

GM3609341

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Remove the instrument panel instrument cluster hood. Refer to Instrument Panel Instrument Cluster Hood Replacement .
Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement .
Remove the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement .

1

Instrument Panel Cluster Trim Plate Bolt (Qty: 5)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

2

Instrument Panel Cluster Trim Plate
