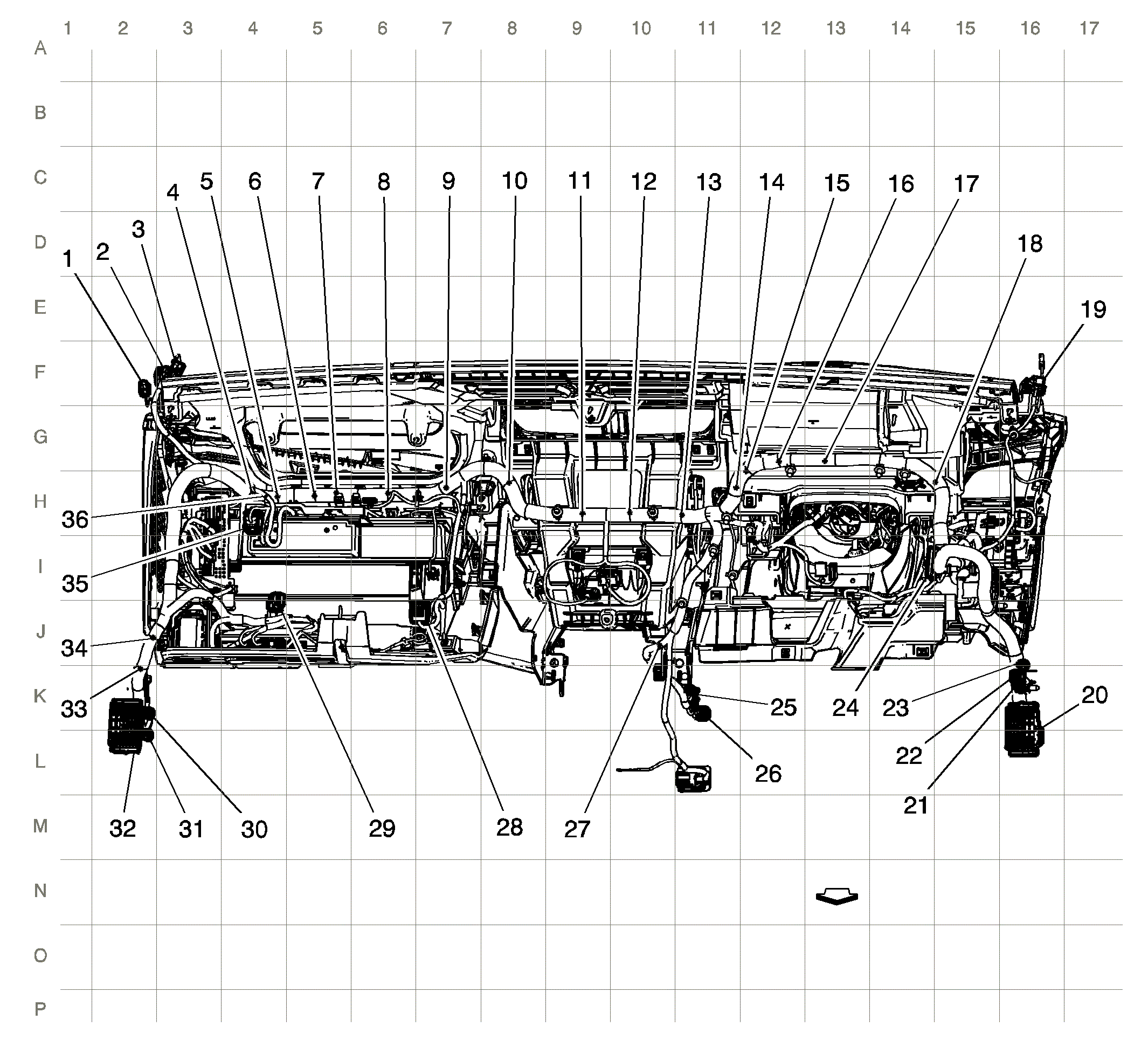

| 1. X341 (IO6 without MAW or UE1) X341 Headliner Harness to Instrument Panel Harness |
| 2. X301 X301 Instrument Panel Harness to Headliner Harness |
| 3. X303 (U2M) X303 Instrument Panel Harness to Headliner Harness |
| 4. J215 (CJ4) |
| 5. J216 (IO6 with MAW) |
| 6. J204 |
| 7. J201 |
| 8. J209 |
| 9. J211 |
| 10. J214 (IO6 with MAW) |
| 11. J212 |
| 12. J207 |
| 13. J213 |
| 14. J208 |
| 15. J217 |
| 16. J205 |
| 17. J206 |
| 18. J200 |
| 19. X302 (UGN or UHX) X302 Instrument Panel Harness to Headliner Harness |
| 20. X225 X225 Instrument Panel Harness to Body Harness |
| 21. X210 (IO6 with UE1) X210 Body Harness COAX to Instrument Panel Harness COAX (UE1 + IO6) |
| 22. X223 (IO6 with MAW) X223 Body Harness LVDS to Instrument Panel Harness LVDS (MAW) |
| 23. X230 (U2Q) X230 Body Harness COAX to Instrument Panel Harness COAX (U2Q) |
| 24. JX200 JX200 Splice Pack |
| 25. X204 X204 Instrument Panel Harness to Floor Console Harness |
| 26. X205 X205 Floor Console Harness USB to Instrument Panel Harness USB |
| 27. J203 (K4C) |
| 28. X224 X224 Instrument Panel Harness to Blower Motor Harness |
| 29. X228 X228 Instrument Panel Harness to HVAC Harness |
| 30. X222 X222 Body Harness COAX to Instrument Panel Harness COAX |
| 31. X221 X221 Body Harness COAX to Instrument Panel Harness COAX |
| 32. X275 X275 Instrument Panel Harness to Body Harness |
| 33. J210 (IO5 or IO6) |
| 34. J218 (CJ4) |
| 35. X235 X235 Instrument Panel Harness to Instrument Panel Harness |
| 36. J202 (CJ4, DD8 or (UEU without UV6)) |
