Instrument Panel Extension Harness

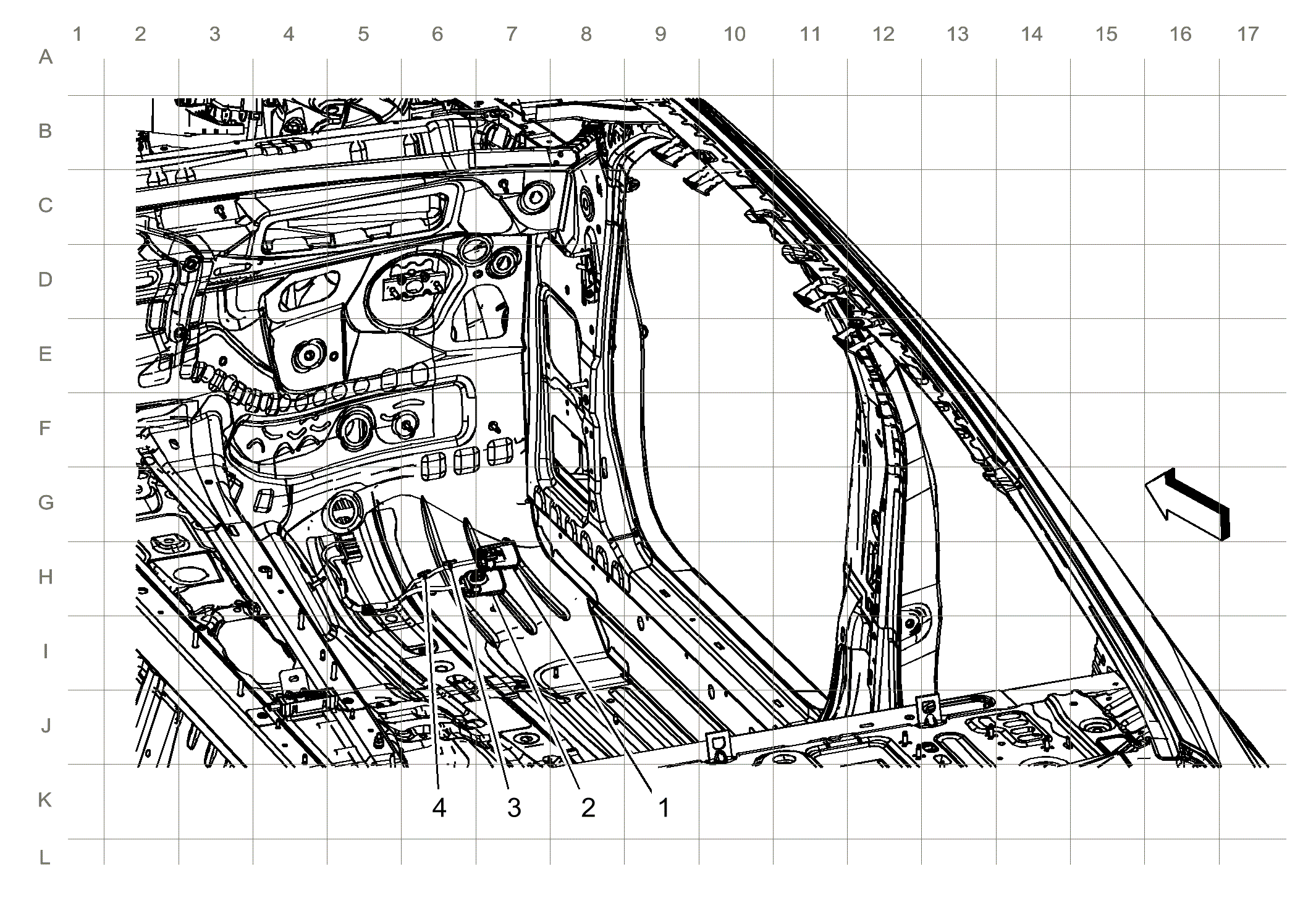

Fig 1: Instrument Panel Extension Harness
GM4421032Courtesy of GENERAL MOTORS COMPANY
Items
1. X277 X277 Instrument Panel Harness to Performance Data Recorder Jumper Harness
2. X276 X276 Instrument Panel Harness to Performance Data Recorder Jumper Harness
3. J226
4 J225
5. J224
6. J223
7. J221
8. J220
