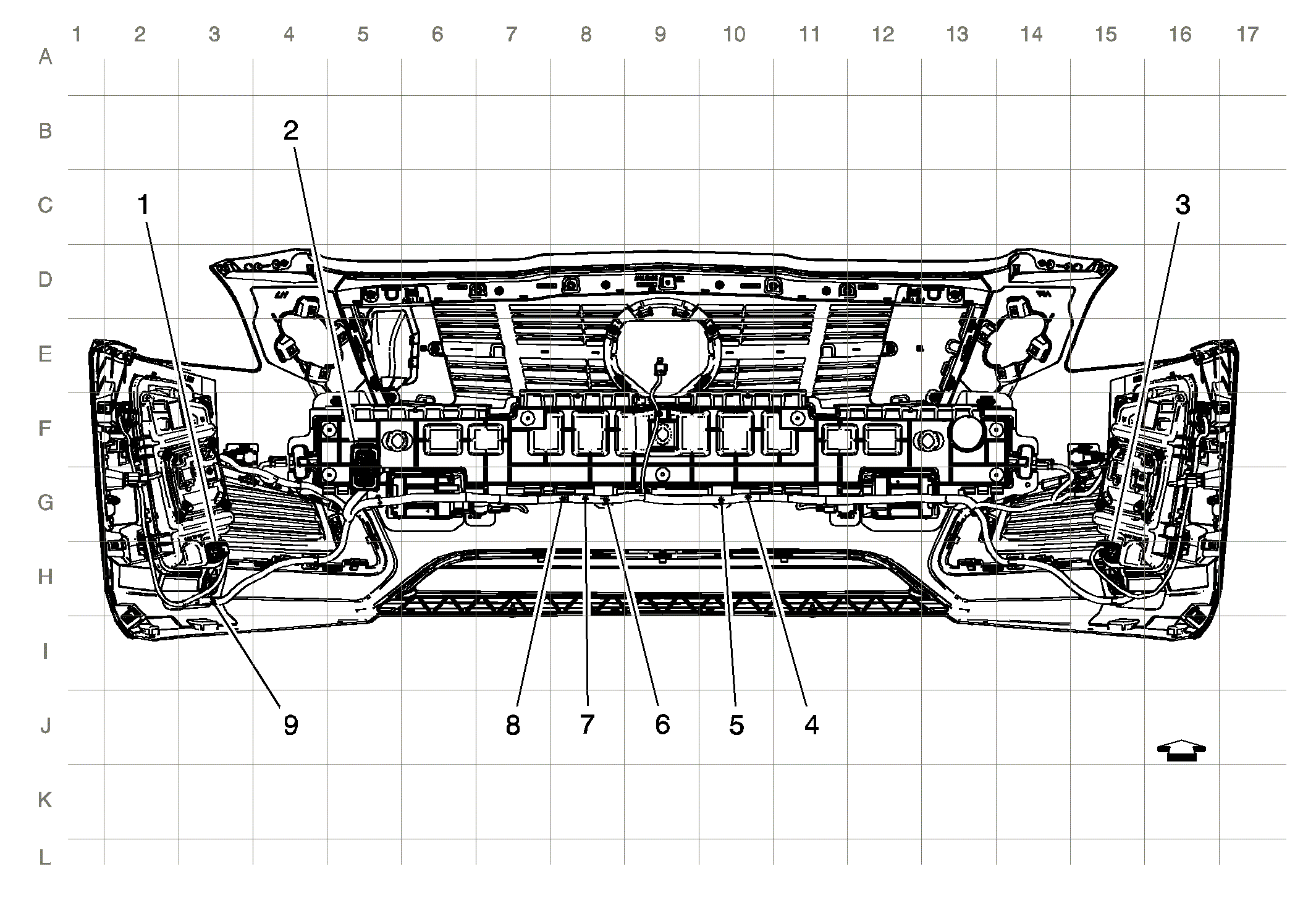

Front Fascia Harness Routing
| Items |
|---|
| 1. X111 X111 Front Fascia Harness to Left Multifunction Lamp Harness |
| 2. X100 X100 Front Fascia Harness to Forward Lamp Harness |
| 3. X121 X121 Front Fascia Harness to Right Multifunction Lamp Harness |
| 4. J103 (UGN) |
| 5. J100 |
| 6. J104 (UD5 or UFQ) |
| 7. J101 (UGN) |
| 8. J105 (UD5 or UFQ) |
| 9. J102 (TUJ) |
