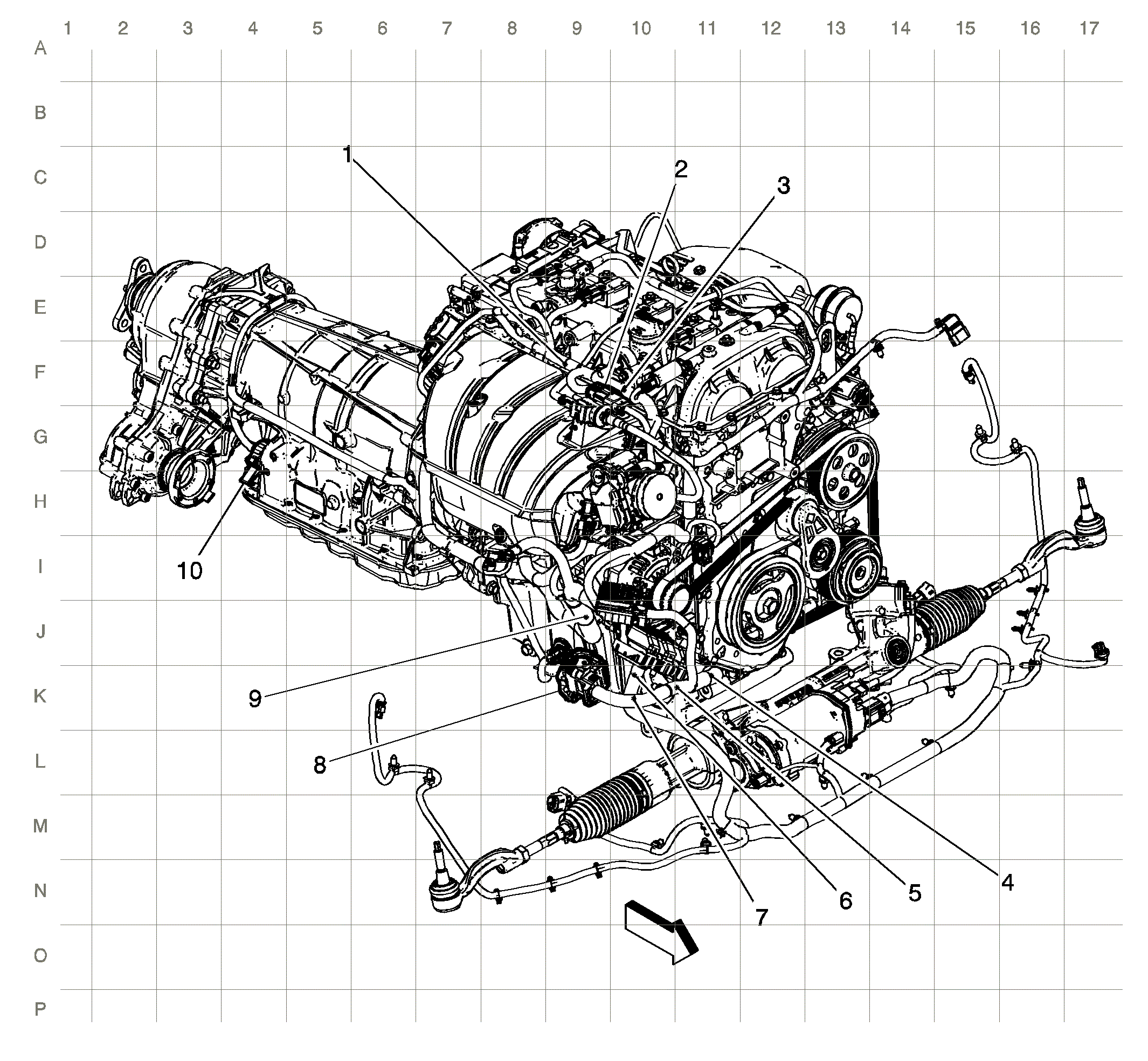

Engine Harness Routing - Right Front (LTG)
| Items |
|---|
| 1. J137 |
| 2. X160 X160 Engine Harness to Bank 1 Fuel Rail Harness (LF3)X160 Engine Harness to Bank 1 Fuel Rail Harness (LGX)X160 Engine Harness to Bank 1 Fuel Rail Harness (LT4)X160 Engine Harness to Bank 1 Fuel Rail Harness (LTG) |
| 3. J132 |
| 4. J139 |
| 5. J142 (LTG) |
| 6. J130 (LTG) |
| 7. J141 |
| 8. X150 X150 Body Harness to Engine Harness |
| 9. J140 |
| 10. X175 X175 Engine Harness to Transmission Harness (M5N)X175 Engine Harness to Transmission Harness (M5U)X175 Engine Harness to Transmission Harness (MGG) |
