Engine Harness Routing - Right Front (LGX with F46)

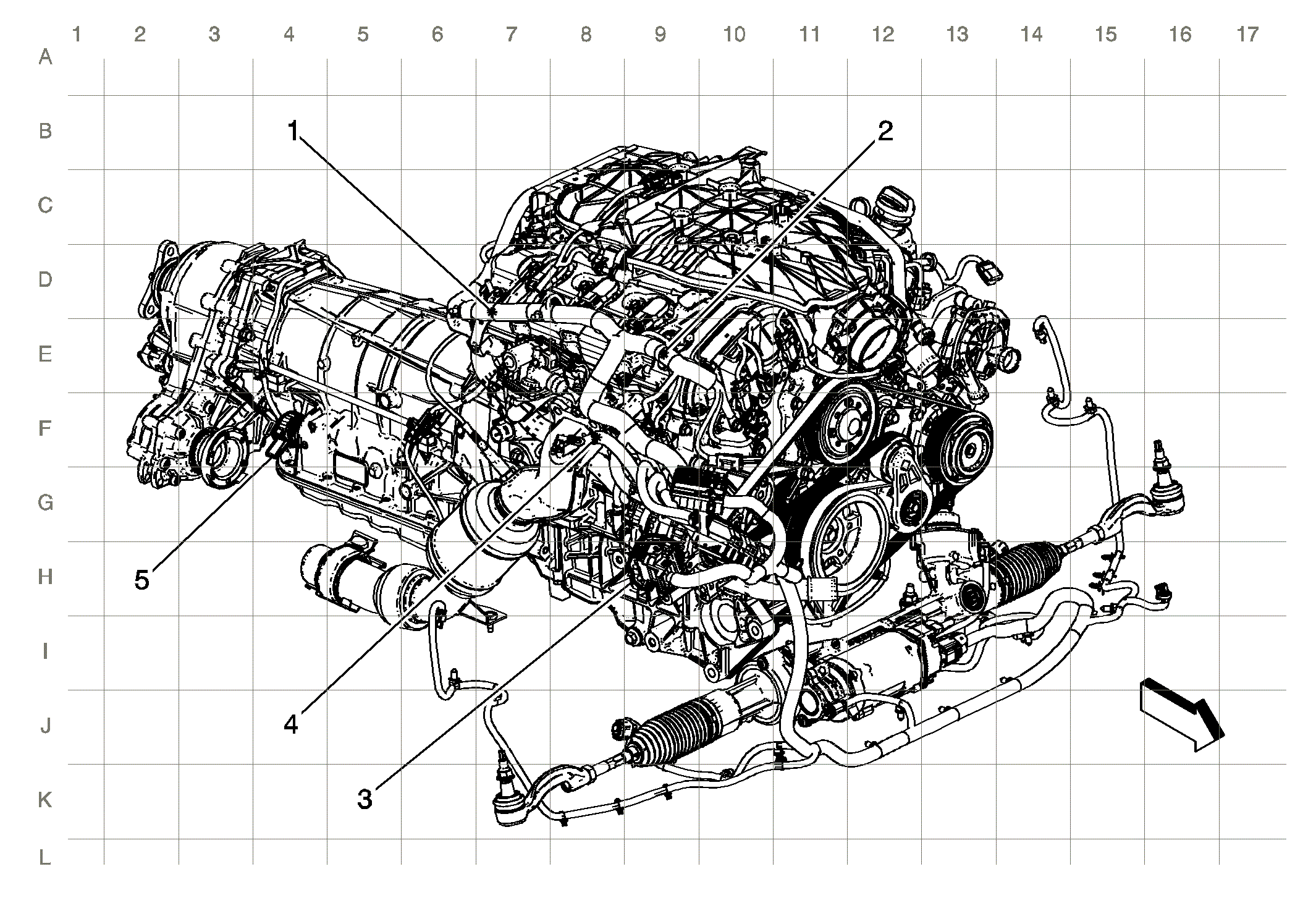

Fig 1: Engine Harness Routing - Right Front (LGX with F46)
GM4353114Courtesy of GENERAL MOTORS COMPANY
Items
1. J139
2. J141
3. X150 X150 Body Harness to Engine Harness ()
4. J133 (LGX)
5. X175 X175 Engine Harness to Transmission Harness (M5N)X175 Engine Harness to Transmission Harness (M5U)X175 Engine Harness to Transmission Harness (MGG)
