Engine Harness Routing - Left Rear (LTG)

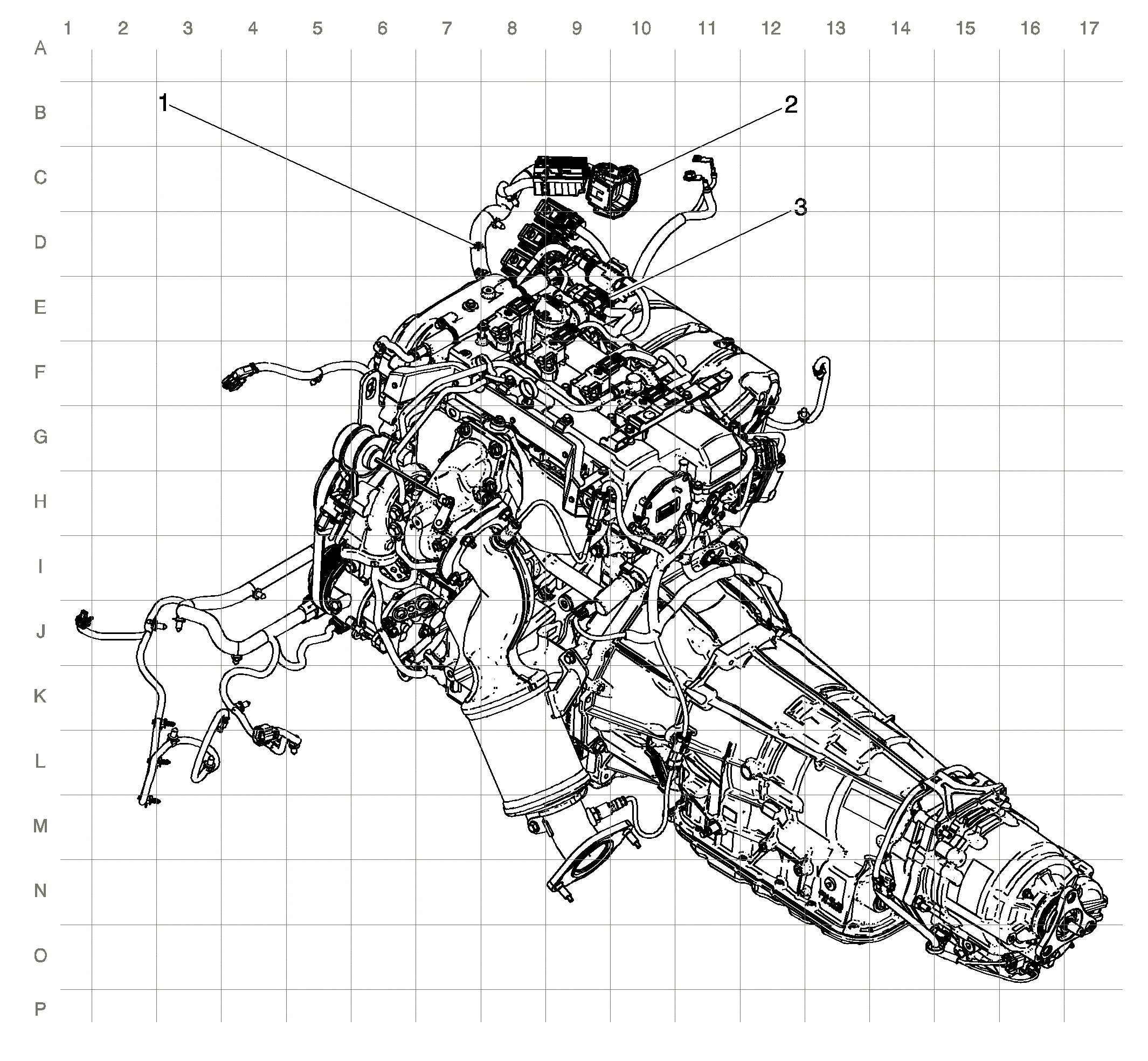

Fig 1: Engine Harness Routing - Left Rear (LTG)
GM3454828Courtesy of GENERAL MOTORS COMPANY
Items
1. J139
2. X150 X150 Body Harness to Engine Harness
3. X160 X160 Engine Harness to Bank 1 Fuel Rail Harness (LF3)
