Engine Harness Routing - Left Rear (LGX with F46)

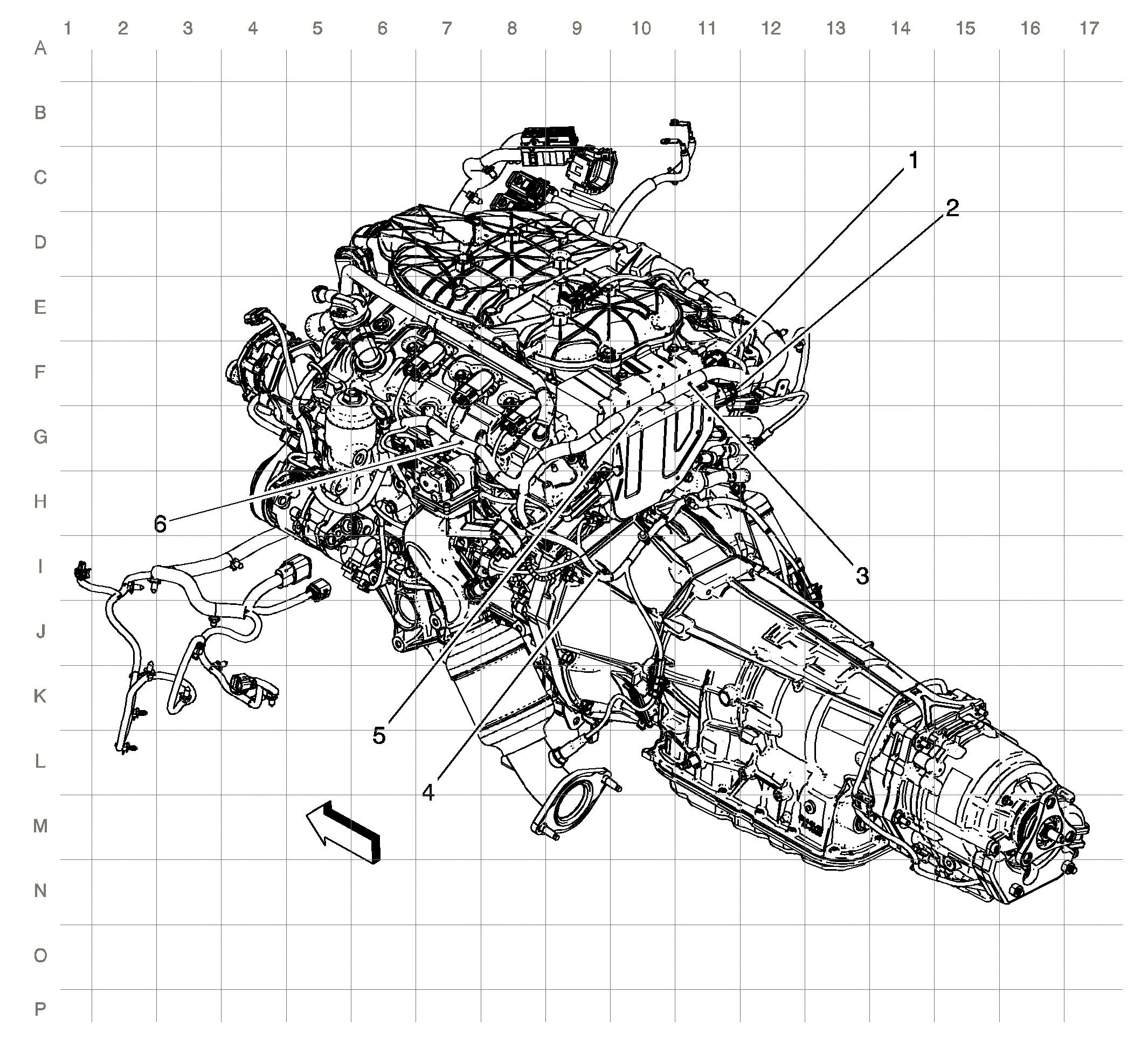

Fig 1: Engine Harness Routing - Left Rear (LGX with F46)
GM3454821Courtesy of GENERAL MOTORS COMPANY
Items
1. X161 X161 Engine Harness to Bank 2 Fuel Rail Harness (LF3)X161 Engine Harness to Bank 2 Fuel Rail Harness (LGX)X161 Engine Harness to Bank 2 Fuel Rail Harness (LT4)
2. X160 X160 Engine Harness to Bank 1 Fuel Rail Harness (LF3)X160 Engine Harness to Bank 1 Fuel Rail Harness (LGX)X160 Engine Harness to Bank 1 Fuel Rail Harness (LT4)X160 Engine Harness to Bank 1 Fuel Rail Harness (LTG)
3. J137
4. J132
5. J138
6. J140
