Engine Harness Routing - Left Front (LT4)

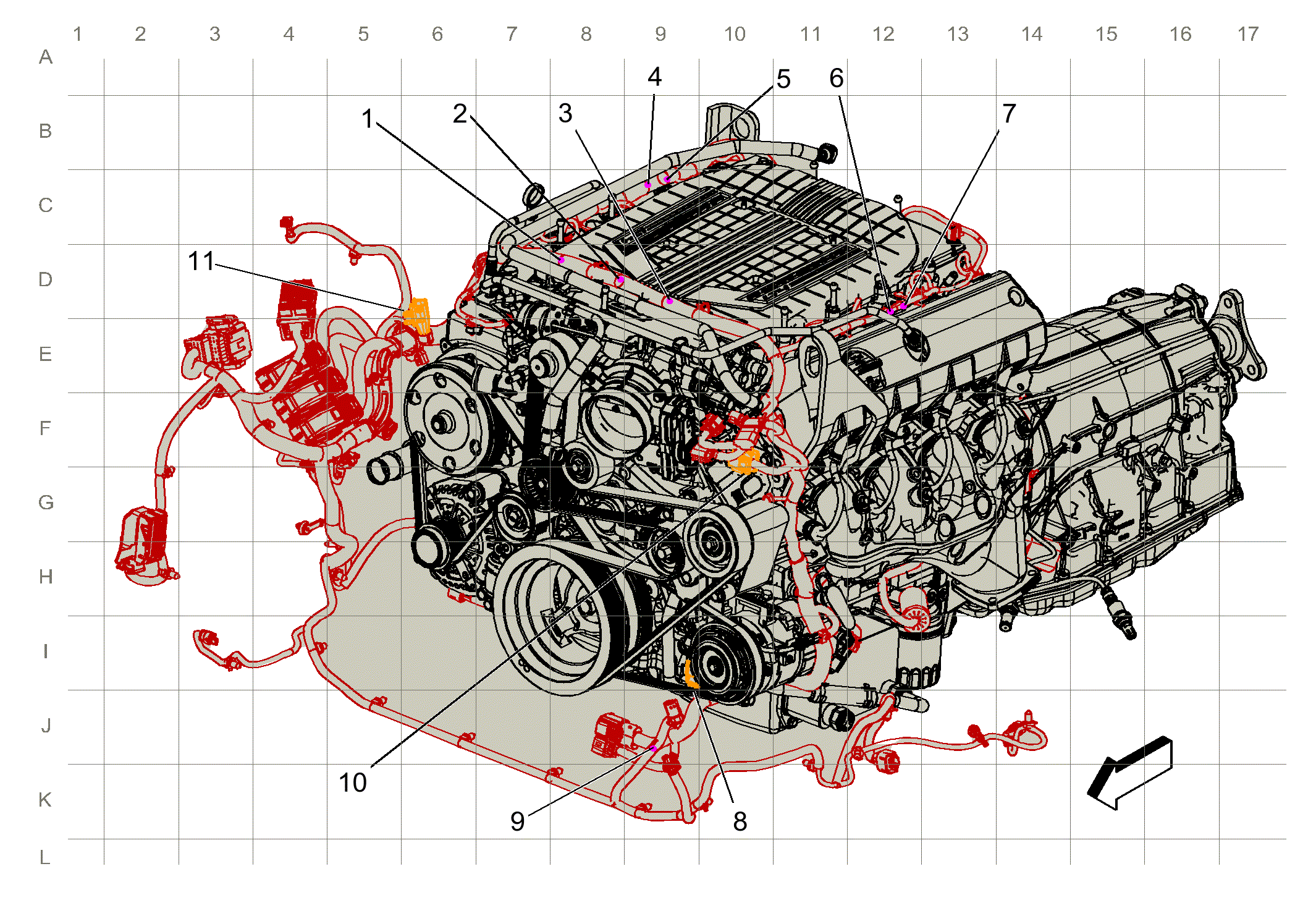

Fig 1: Engine Harness Routing - Left Front (LT4)

Courtesy of GENERAL MOTORS COMPANY

Items
1. J119 (LT4)
2. J140
3. J139
4. J113 (LT4)
5. J114
6. J135 (LT4)
7. J109 (LT4)
8. X106 X106 Engine Harness to Camshaft Position Sensor Jumper Harness (LT4)
9. J134
10. X107 X107 Engine Harness to Engine Coolant Temperature Sensor Jumper Harness (LGX)X107 Engine Harness to Engine Coolant Temperature Sensor Jumper Harness (LT4)
11. X108 (LT4) X108 Generator Jumper Harness to Engine Harness
