Body Harness Routing - Right Side of Luggage Compartment

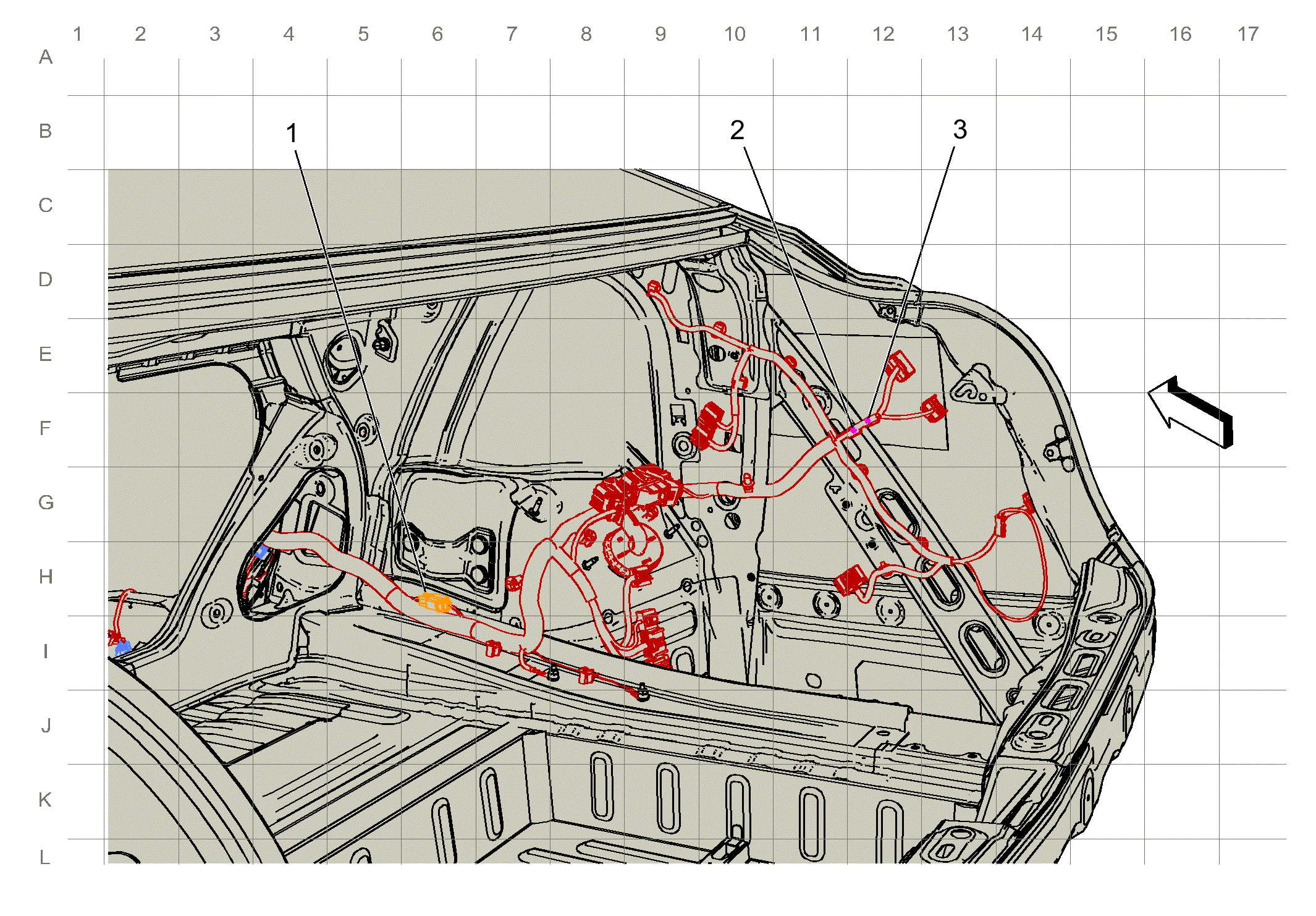

Fig 1: Body Harness Routing - Right Side of Luggage Compartment
GM3454904Courtesy of GENERAL MOTORS COMPANY
Items
1. X495 X399 Body Harness to Body Harness
2. J426 (B3T)
3. J425 (B3T)
