Body Harness Routing - Left Side of Luggage Compartment

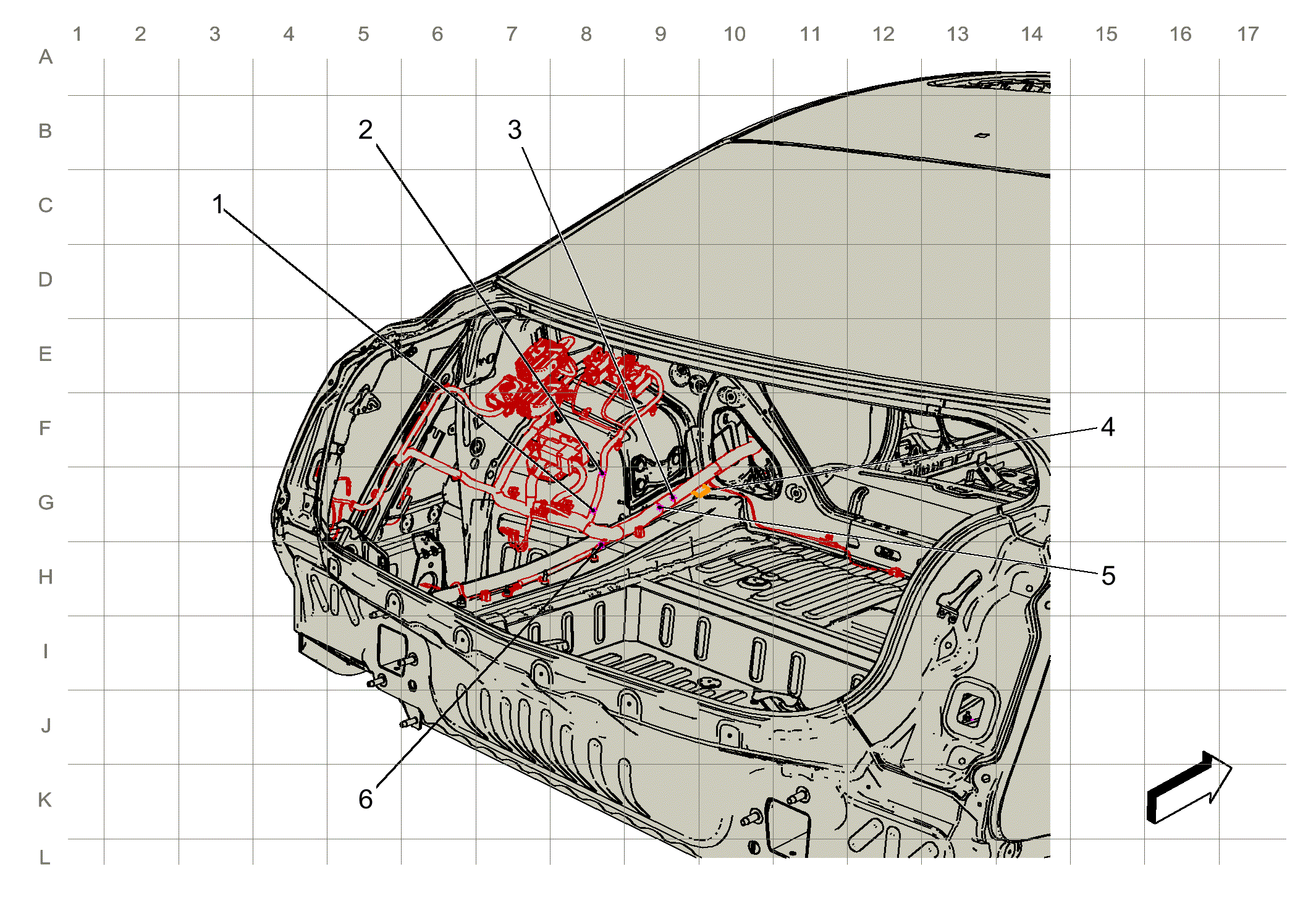

Fig 1: Body Harness Routing - Left Side of Luggage Compartment
GM3454901Courtesy of GENERAL MOTORS COMPANY
Items
1. J420 (G96)
2. J431
3. J422 (DB3 with V2S)
4. JX300 JX300 Splice Pack
5. J427 (UKC)
6. J428 (LGX or LTG without UGN)
