Component Locator Views

Component locator views now have links to component connector end views.

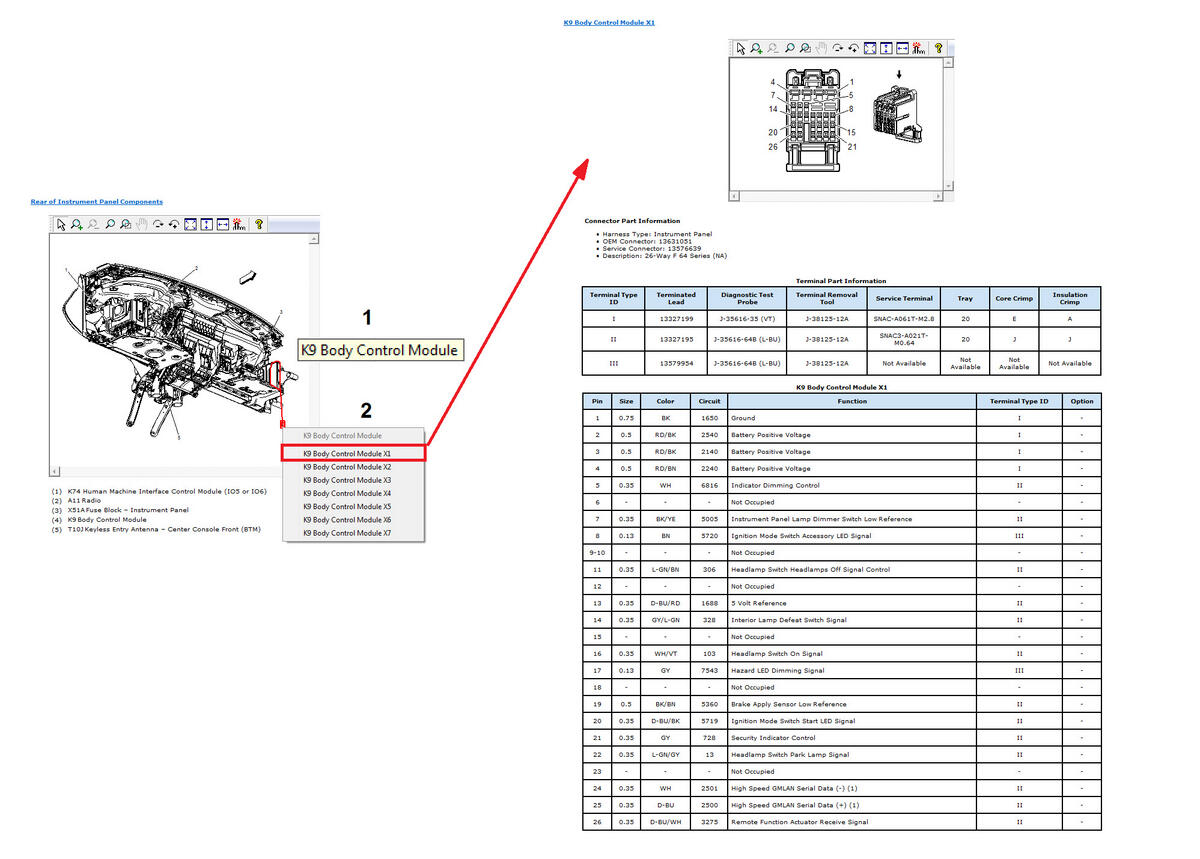

Fig 1: Component Locator Views Have Links To Component Connector End Views
GM3819952Courtesy of GENERAL MOTORS COMPANY
  1. Mouse-over:  Displays the code and name of the component.
  2. Hotspot Link to Information:  Links to individual connector end view(s) within Component Connector End Views.
