G301 (2 of 2) and G302 (2 of 2)

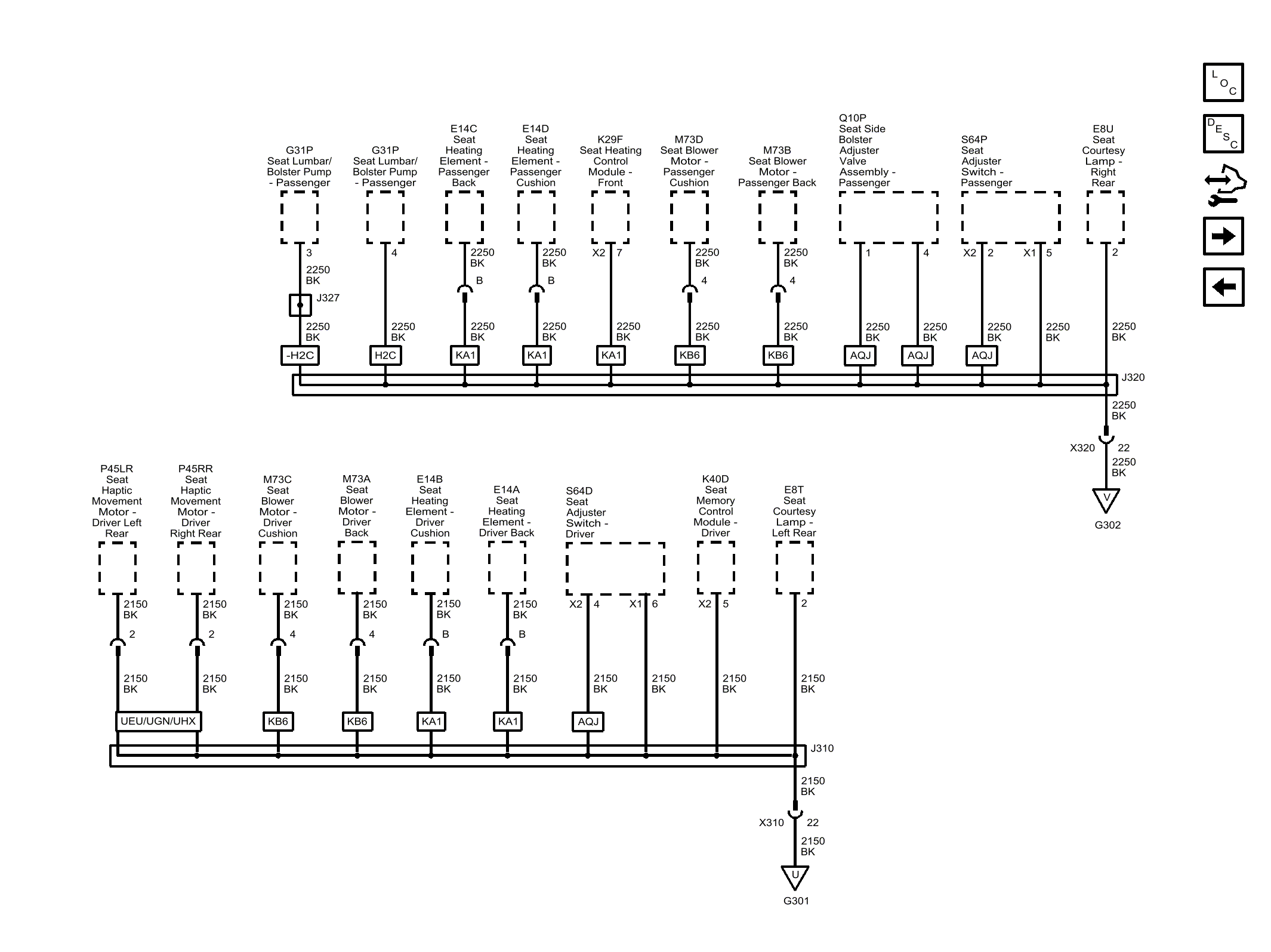

Fig 1: G301 (2 of 2) and G302 (2 of 2)
GM4078873Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
2150 Ground
2150_BK 2150 BK
2150_BK 2150 BK
2150_BK 2150 BK
2150_BK 2150 BK
CAV_5 5
CONN_X2 X2
2150_BK 2150 BK
2150_BK 2150 BK
2150_BK 2150 BK
2150_BK 2150 BK
CAV_2 2
CAV_2 2
2150_BK 2150 BK
CAV_6 6
CONN_X1 X1
2150_BK 2150 BK
CAV_4 4
CONN_X2 X2
CAV_4 4
CAV_B B
CAV_4 4
2150_BK 2150 BK
2150_BK 2150 BK
2150_BK 2150 BK
2150_BK 2150 BK
2150_BK 2150 BK
2150_BK 2150 BK
CAV_B B
2150_BK 2150 BK
CAV_2 2
2250 Ground
2250_BK 2250 BK
2250_BK 2250 BK
2250_BK 2250 BK
2250_BK 2250 BK
2250_BK 2250 BK
650 Ground
2250_BK 2250 BK
CAV_4 4
2250_BK 2250 BK
2250_BK 2250 BK
CAV_5 5
CONN_X1 X1
2250_BK 2250 BK
CAV_2 2
CONN_X2 X2
CAV_2 2
2250_BK 2250 BK
CAV_4 4
2250_BK 2250 BK
CAV_1 1
2250_BK 2250 BK
CAV_7 7
CONN_X2 X2
2250_BK 2250 BK
CAV_4 4
2250_BK 2250 BK
CAV_3 3
2250_BK 2250 BK
CAV_B B
CAV_B B
CAV_4 4
2250_BK 2250 BK
2250_BK 2250 BK
2250_BK 2250 BK
CAV_22 22
2150_BK 2150 BK
2250_BK 2250 BK
CAV_22 22
KA1 (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX), Other China Group (MAB), Japan (MAS), Korea (MAW), Israel (MBI), Mid-East (MAM), Russia Group (MBR), Europe Group (MBM))
AQJ (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX), Other China Group (MAB), Japan (MAS), Korea (MAW), Israel (MBI), Mid-East (MAM), Russia Group (MBR), Europe Group (MBM))
KB6 (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX), Other China Group (MAB), Japan (MAS), Korea (MAW), Israel (MBI), Mid-East (MAM), Russia Group (MBR), Europe Group (MBM))
KB6 (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX), Other China Group (MAB), Japan (MAS), Korea (MAW), Israel (MBI), Mid-East (MAM), Russia Group (MBR), Europe Group (MBM))
KA1 (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX), Other China Group (MAB), Japan (MAS), Korea (MAW), Israel (MBI), Mid-East (MAM), Russia Group (MBR), Europe Group (MBM))
H2C (U.S.A., PR and USVI (MAH), Canada (MBC), Other China Group (MAB), Japan (MAS), Korea (MAW), Israel (MBI), Mid-East (MAM), Russia Group (MBR), Europe Group (MBM))
H2C (U.S.A., PR and USVI (MAH), Canada (MBC), Other China Group (MAB), Japan (MAS), Korea (MAW), Israel (MBI), Mid-East (MAM), Russia Group (MBR), Europe Group (MBM))
KA1 (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX), Other China Group (MAB), Japan (MAS), Korea (MAW), Israel (MBI), Mid-East (MAM), Russia Group (MBR), Europe Group (MBM))
KA1 (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX), Other China Group (MAB), Japan (MAS), Korea (MAW), Israel (MBI), Mid-East (MAM), Russia Group (MBR), Europe Group (MBM))
KA1 (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX), Other China Group (MAB), Japan (MAS), Korea (MAW), Israel (MBI), Mid-East (MAM), Russia Group (MBR), Europe Group (MBM))
KB6 (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX), Other China Group (MAB), Japan (MAS), Korea (MAW), Israel (MBI), Mid-East (MAM), Russia Group (MBR), Europe Group (MBM))
KB6 (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX), Other China Group (MAB), Japan (MAS), Korea (MAW), Israel (MBI), Mid-East (MAM), Russia Group (MBR), Europe Group (MBM))
AQJ (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX), Other China Group (MAB), Japan (MAS), Korea (MAW), Israel (MBI), Mid-East (MAM), Russia Group (MBR), Europe Group (MBM))
AQJ (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX), Other China Group (MAB), Japan (MAS), Korea (MAW), Israel (MBI), Mid-East (MAM), Russia Group (MBR), Europe Group (MBM))
AQJ (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX), Other China Group (MAB), Japan (MAS), Korea (MAW), Israel (MBI), Mid-East (MAM), Russia Group (MBR), Europe Group (MBM))
UEU (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX), Other China Group (MAB), Japan (MAS), Korea (MAW), Israel (MBI), Mid-East (MAM), Russia Group (MBR), Europe Group (MBM))
UGN (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX), Other China Group (MAB), Japan (MAS), Korea (MAW), Israel (MBI), Mid-East (MAM), Russia Group (MBR), Europe Group (MBM))
UHX (U.S.A., PR and USVI (MAH), Canada (MBC), Mexico (MCX), Other China Group (MAB), Japan (MAS), Korea (MAW), Israel (MBI), Mid-East (MAM), Russia Group (MBR), Europe Group (MBM))
X310 X310
U_REF U
G301 G301
X320 X320
V_REF V
G302 G302
J320 J320
J310 J310
M73A M73A Seat Blower Motor - Driver Back (KB6)
M73C M73C Seat Blower Motor - Driver Cushion (KB6)
E14A E14A Seat Heating Element - Driver Back (KA1)
E14B E14B Seat Heating Element - Driver Cushion (KA1)
P45LR P45LR Seat Haptic Movement Motor - Driver Left Rear (UEU, UGN or UHX)
P45RR P45RR Seat Haptic Movement Motor - Driver Right Rear (UEU, UGN or UHX)
M73B M73B Seat Blower Motor - Passenger Back (KB6)
E14D E14D Seat Heating Element - Passenger Cushion (KA1)
E14C E14C Seat Heating Element - Passenger Back (KA1)
M73D M73D Seat Blower Motor - Passenger Cushion (KB6)
E8U E8U Seat Courtesy Lamp - Right Rear
K29F K29F Seat Heating Control Module - Front (KA1)
G31P G31P Seat Lumbar/Bolster Pump - Passenger
G31P G31P Seat Lumbar/Bolster Pump - Passenger
S64D S64D Seat Adjuster Switch - Driver
K40D K40D Seat Memory Control Module - Driver
E8T E8T Seat Courtesy Lamp - Left Rear
Q10P Q10P Seat Side Bolster Adjuster Valve Assembly - Passenger (AQJ)
S64P S64P Seat Adjuster Switch - Passenger
